Caterpillarexcavator

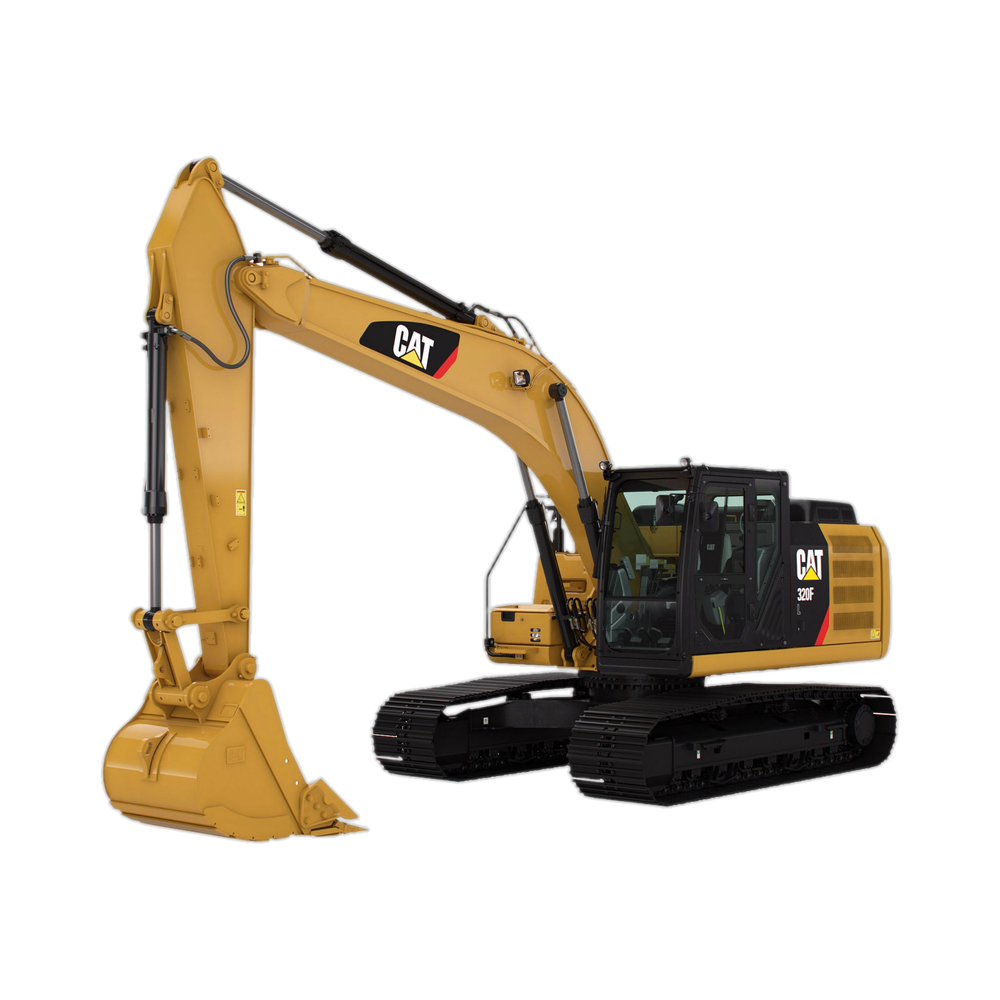

Caterpillar 320D
Maintenance schedule, common problems & OEM parts breakdown
The Caterpillar 320D is a 20-tonne class hydraulic excavator produced from around 2006 into the early 2010s, powered by the Cat C6.4 ACERT inline-6 common-rail diesel rated at 103 kW (≈140 hp) net. Operating weight runs roughly 20,000–21,900 kg depending on configuration (the long-undercarriage 320D L sits at the top of that range), with heaped bucket capacities from about 0.45 to 1.5 m³.
It succeeded the 320C — swapping the older 3066-series engine for the electronically controlled C6.4 to meet Tier 3 emissions, and bringing roughly 7% higher stick and bucket digging forces with faster hydraulic cycle times — and was replaced by the 320E from 2012. The 320D family remains one of the most common excavators on job sites worldwide, which keeps parts demand and aftermarket support strong.
Below: full specifications, fluids & capacities, the factory service schedule, common service parts, verified fault codes, what owners discuss, attachment guidance, the complete assembly directory, and a serial-number reference — each assembly opens to a preview of the parts inside. Complete parts lists with full OEM part numbers, exploded diagrams, quantities, and fitment data are available free in Heavy Parts AI.
Caterpillar 320D specifications
Engine
| Engine model | Cat C6.4 with ACERT Technology — in-line 6-cylinder, turbocharged with air-to-air aftercooler |
| Net power (ISO 9249 / SAE J1349, @ 1800 rpm) | 103 kW (138 hp) on early Tier 2-equivalent build; 110 kW (148 hp) on later Tier 3 build — varies by version/region (European sheets quote 103 kW / 140 metric hp) |
| Displacement | 6.4 L (389 cu in) |
| Bore x stroke | 102 mm x 130 mm (4.02 in x 5.12 in) |
| Emissions tier | Early production: equivalent to US EPA Tier 2 / EU Stage II; later production: US EPA Tier 3. No power derate below 2,300 m (7,500 ft) |
Weights
| Operating weight — 320D (std undercarriage) | 20,330–20,350 kg (44,820–44,870 lb) with reach boom, 2.9 m stick, 0.9 m³ bucket, 600 mm shoes — varies by configuration |
| Operating weight — 320D L (long undercarriage) | 21,550–21,570 kg (47,510–47,554 lb) with 800 mm shoes; regional spec sheets quote a 21,200–21,900 kg range depending on configuration |
| Base machine weight (transport, without front linkage) | 16,260 kg (35,847 lb) std undercarriage with 600 mm shoes; 17,470 kg (38,515 lb) long undercarriage with 800 mm shoes |
| Ground pressure | Not published in Cat's 320D/320D L Specalogs (varies with shoe width and undercarriage); figures circulating online are usually from the later 320D3 or the 320D LRR — different machines |
Dimensions
| Transport length | 9,460 mm (31 ft 0 in) with 5.7 m reach boom + 2.9 m or 2.5 m stick; 9,440 mm (31 ft 0 in) with 3.9 m stick; 9,050 mm (29 ft 8 in) with mass boom |
| Transport width | 2,800 mm (9 ft 2 in) std undercarriage with 600 mm shoes, up to 3,000 mm (9 ft 10 in) with 800 mm shoes; 320D L: 2,980–3,180 mm (9 ft 9 in – 10 ft 5 in) depending on shoes |
| Transport (shipping) height | 3,030 mm (9 ft 11 in) with 2.9 m stick; up to ~3,440–3,740 mm (11 ft 3 in – 12 ft 3 in) with 3.9 m stick depending on spec edition; cab height 2,950 mm (9 ft 8 in) |
| Tail swing radius | 2,750 mm (9 ft 0 in) |
| Track shoe width (triple grouser options) | 600 mm (24 in), 700 mm (28 in) or 800 mm (32 in) |
| Ground clearance | 450 mm (1 ft 6 in) |
| Track length | 4,075 mm (13 ft 4 in) std; 4,455 mm (14 ft 7 in) 320D L. Track gauge: 2,200 mm (7 ft 3 in) std; 2,380 mm (7 ft 10 in) 320D L |
Performance
| Max digging depth | 6,640–6,720 mm (21 ft 9 in – 22 ft 1 in) with standard 2.9 m stick (varies by spec edition/bucket); 6,220–6,300 mm (20 ft 5 in – 20 ft 8 in) with 2.5 m stick; up to 7,580–7,660 mm (24 ft 10 in – 25 ft 2 in) with long 3.9 m stick |
| Max reach at ground level | 9,780–9,860 mm (32 ft 1 in – 32 ft 4 in) with 2.9 m stick; up to 10,680–10,760 mm (35 ft 0 in – 35 ft 4 in) with 3.9 m stick |
| Max loading (dump) height | 6,490–6,570 mm (21 ft 4 in – 21 ft 7 in) with 2.9 m stick; ~6,940–7,020 mm (22 ft 9 in – 23 ft 0 in) with 3.9 m stick |
| Max cutting height | 9,410–9,490 mm (30 ft 10 in – 31 ft 2 in) with 2.9 m stick; ~9,870–9,940 mm (32 ft 5 in – 32 ft 7 in) with 3.9 m stick |
| Swing speed / swing torque | 11.5 rpm; 61.8–62 kN·m (~45,600 lb·ft) |
| Max travel speed | 5.5 km/h (3.4 mph), two-speed travel |
| Max drawbar pull | 205–206 kN (46,300 lb) |
| Gradeability | Not published in the 320D/320D L Specalogs — could not be verified from 320D-specific sources |
Forces
| Bucket digging force (reach boom, B1 general-purpose buckets) | ISO: 140–149 kN (31,400–33,500 lb); SAE: 125–131 kN (28,100–29,450 lb) — varies by Specalog edition and bucket family (power buckets rate up to 163 kN / 36,700 lb ISO) |
| Bucket digging force (mass boom configuration) | ISO: 188–196 kN (42,300–44,000 lb); SAE: 166–172 kN (37,300–38,600 lb) |
| Stick digging force — standard 2.9 m stick | ISO: 106–109 kN (23,900–24,500 lb); SAE: 103–105 kN (23,200–23,600 lb) |
| Stick digging force — short 2.5 m stick | ISO: 118–121 kN (26,500–27,200 lb); SAE: 114–117 kN (25,600–26,300 lb) |
| Stick digging force — long 3.9 m stick | ISO: 89 kN (~20,000 lb); SAE: 86–87 kN (~19,300–19,600 lb) |
Service capacities (summary)
| Fuel tank | 410 L (108 gal) |
| Hydraulic system (including tank) | 260 L (69 gal); hydraulic tank alone 120 L (32 gal) |
| Engine oil | 30 L (8 gal) |
| Cooling system | 25 L (6.6 gal) |
| Swing drive / final drive (each) | Swing drive 8 L (2.1 gal); final drive 8–10 L (2.1–2.6 gal) each, varies by spec edition |
Values vary by configuration, region, and serial range — confirm against your machine before planning transport or lifts.
320D fluids & capacities
| System | Capacity | Recommended fluid |
|---|---|---|
| Engine crankcase (with filter) — Cat C6.4 ACERT | 30 L (7.9 US gal) | Cat DEO-ULS or Cat DEO multigrade. Viscosity by climate: SAE 15W-40 for roughly -9.5 C to 50 C (15 F to 122 F) — the usual choice; SAE 10W-30 for -18 C to 40 C (0 F to 104 F); Cat DEO/DEO-ULS SYN SAE 5W-40 down to -30 C (-22 F); Cat DEO-ULS Cold Weather SAE 0W-40 down to -40 C (-40 F). |
| Cooling system | 25 L (6.6 US gal), plus about 1.5 L (0.4 US gal) in the coolant reservoir | Cat ELC (Extended Life Coolant) — preferred; Cat DEAC (Diesel Engine Antifreeze/Coolant) — acceptable. Never plain water alone. |
| Fuel tank | 410 L (108 US gal) on standard 320D and 320D L; the narrow 320D LN variant carries 310 L (82 US gal) — varies by configuration | No. 1 or No. 2 distillate diesel meeting the Caterpillar distillate fuel specification and ASTM D975 / EN 590. Up to B5 biodiesel blends allowed with conditions; ULSD not mandatory on this pre-Tier-4 machine. |
| Hydraulic system — total (including tank) | 260 L (69 US gal) total system; service refill after an oil change is about 138 L (37 US gal) | Cat HYDO Advanced 10 (SAE 10W) — preferred for -20 C to 40 C (-4 F to 104 F), allows extended drain intervals of roughly 6,000 hours with oil analysis; Cat HYDO Advanced 30 (SAE 30) for hot climates 10 C to 50 C (50 F to 122 F); Cat BIO HYDO Advanced (ISO 46 multigrade) where a biodegradable fluid is needed. Second-choice fluids include Cat TDTO, TDTO-TMS, MTO, DEO/DEO-ULS at shorter drain intervals. |
| Hydraulic tank | 120 L (32 US gal); 138 L (36 US gal) when measured including the suction pipe | Same fluid as the hydraulic system — Cat HYDO Advanced 10 preferred. |
| Final drive (each side) | 8 L (2.1 US gal) per the OMM refill table; the Specalog lists 10 L (2.6 US gal) per drive — varies by configuration/source, so verify on the sight/level plug when filling | Cat TDTO (TO-4) gear/drive-train oil. Viscosity by climate: SAE 50 for -15 C to 50 C (5 F to 122 F) — typical warm-climate fill; SAE 30 for -25 C to 25 C (-13 F to 77 F); Cat TDTO-TMS multigrade for -30 C to 25 C (-22 F to 77 F); TDTO SYN Cold Weather grades (e.g. 0W-20) for arctic service. |
| Swing drive | 8 L (2.1 US gal) | Same as final drives — Cat TDTO (TO-4); SAE 50 in most climates, SAE 30 or TDTO-TMS for colder ambient ranges. |
| Swing gear (grease bath) / pilot circuit | Swing gear bath: 22 L (5.8 US gal). Pilot system has no separate fill — it shares the main hydraulic oil supply | Swing gear: multipurpose lithium grease, NLGI Grade 2. Pilot circuit: Cat HYDO Advanced 10 (shared with the main hydraulic system). If a pump coupling is fitted, it takes Cat DEO/DEO-ULS SAE 10W-30. |
| Grease — external lubrication points (spec only) | As needed at pins, bushings, boom/stick/bucket linkage and swing bearing (no fixed volume) | Cat Prime Application Grease NLGI 2 (the current name for what earlier Cat literature called Advanced 3Moly) for general points; Cat Extreme Application Grease NLGI 1 or 2 (successor to Ultra 5Moly) for heavy/impact loads; Extreme Application Grease-Desert NLGI 2 for hot climates (-10 C to 140 C); Extreme Application Grease-Arctic NLGI 0.5 down to -50 C. Autolube systems: Extreme Application Grease NLGI 1-2, no graphite or PTFE content. |
Capacities are refill values from factory literature — always fill to the dipstick/sight gauge, not the number.
Caterpillar 320D maintenance schedule
| Service interval | Tasks |
|---|---|
| Every 10 h |
|
| Every 250 h |
|
| Every 500 h |
|
| Every 1,000 h |
|
| Every 2,000 h |
|
Servicing the 320D beyond the schedule
Predictive maintenance & fluid analysis
The 320D is built around Cat’s S·O·S fluid sampling program: engine oil and final drive samples every 250 hours, coolant and hydraulic oil every 500. Trend the results — rising silicon means dust ingress, rising iron in a final drive sample means the planetary is wearing. Two cheap habits catch most failures early on this machine: inspect what comes out of the pilot filter at every hydraulic service (metal here warns of pump trouble upstream), and scan the radiator face with an infrared gun — cold sections mean internal plugging long before the machine overheats.
Corrective & common repairs
The repairs that actually show up on high-hour 320Ds: injector sets on the C6.4 (long cranking is the early warning), duo-cone seals on the final drives (oil weeping at the sprocket), control-valve work for boom drift, and cooling cores packed with fines between the radiator and oil cooler. None of these should be a surprise on a maintained machine — the fault codes and owner discussions below cover the diagnostic path for each before parts get replaced blind.
Overhaul & rebuild points
The 320D’s frame and structures outlast its wear systems, which makes it a strong rebuild candidate rather than a replacement machine. Undercarriage life is managed by wear measurement — track links, rollers, idlers, and sprockets are measured as a percentage and budgeted as a set. The C6.4 and the main hydraulic pump both rebuild well with seals, bearings, and machined components, and a machine with a straight frame and documented S·O·S history is routinely brought back for a second life.
Seasonal & environment servicing
Cold weather: the C6.4’s common-rail system is sensitive to fuel waxing — switch to winter-grade diesel and keep the water separator drained daily, or expect fuel filter restriction warnings on frosty mornings. Hot or dusty sites are the 320D’s real enemy: fines pack between the stacked cooling cores where a surface wash never reaches, so split and wash the cores from the engine side seasonally, service air filter elements by the restriction indicator rather than the calendar, and grease the linkage more frequently in abrasive conditions.
320D common service parts
| Part number | Part | Notes | |
|---|---|---|---|
| 1R-0751 | Fuel filter (advanced efficiency) | Secondary fuel filter — 500 h fuel system service | Check fitment → |
| 326-1644 | Fuel/water separator element (primary) | Replace at 500 h; drain water daily | Check fitment → |
| 131-8822 | Air filter element (primary) | Replace per restriction indicator; sooner in dusty conditions | Check fitment → |
| 131-8821 | Air filter element (secondary) | Replace every third primary element change | Check fitment → |
| 216-6676 | Hydraulic oil filter element | Hydraulic filter service — 1,000 h interval | Check fitment → |
Always confirm against your machine's serial number — cross-check any part in Heavy Parts AI before ordering.
320D fault codes & troubleshooting
| Code | Meaning | Likely cause | What to do |
|---|---|---|---|
| E361 | High engine coolant temperature — warning is logged, and at higher severity the ECM derates the engine to protect it. | Low coolant level, stuck thermostat, debris-blocked radiator/cooler cores, weak water pump, or a misreading temperature sensor. | Reduce load and cool at low idle, then check coolant level. Inspect radiator and cooler cores for packed debris and verify the thermostat opens. Confirm actual temperature against the sensor before major cooling repairs. |
| E360 | Low engine oil pressure — from a logged warning up to pressure low enough to demand immediate shutdown. | Low oil level is the most common trigger; otherwise degraded oil, a plugged oil filter, worn oil pump or bearings, or a faulty pressure sensor. | Shut down immediately and check oil level. If correct, verify actual pressure with a mechanical gauge before trusting the sensor; investigate the pump and bottom end if genuinely low. |
| E362 | Engine overspeed — rpm exceeded the trip point (≈2,600 rpm on this engine); the ECM derates until speed drops. | Usually an operating condition (e.g. the machine driving the engine on a grade). Repeated events in normal work can point to a speed-signal or governor problem. | Back off engine speed and let the derate clear. If it logs repeatedly during normal operation, review logged data and check the engine speed sensor circuit with Cat ET. |
| E390 | Fuel filter restriction — pressure drop across the fuel filter has stayed above the trip point; the filter is plugging. | Dirty or overdue fuel filters, contaminated or poor-quality fuel, water in the fuel, or fuel waxing in cold weather. | Replace primary and secondary fuel filters, drain the water separator, and check the tank for contamination. If filters plug again quickly, address fuel quality. |
| E198 | Low fuel pressure — the low-pressure (transfer) side of the fuel system is not delivering properly. | Plugged fuel filters, air drawn into the suction side, a weak lift/priming pump, a restricted suction line, or low fuel level. | Check fuel level, replace fuel filters, then prime the system and inspect the suction side for air leaks. Fix low-side supply before chasing rail-pressure problems. |
| E398 | Low fuel rail pressure — common-rail pressure is below what the ECM commands. Symptoms: hard starting, stalling under load, low power. | Low-pressure supply restrictions or air, a worn high-pressure pump, excessive injector back-leakage, or a leaking rail pressure regulating valve. | Rule out the cheap causes first (filters, fuel level, suction air leaks), then run the Cat ET fuel system pressure tests to isolate pump, injectors, or relief valve before replacing high-pressure components. |
| E396 | High fuel rail pressure — rail pressure has climbed above the expected ceiling for the commanded condition. | A fuel pressure regulating/return valve held partly closed by contamination or wear, or a rail pressure sensor reporting incorrectly. | Inspect and clean the return-fuel regulating valve, and compare actual vs commanded rail pressure in Cat ET to separate a control-valve problem from a sensor problem. |
| 1-7 … 6-7 (injector, FMI 7) | Cylinder injector code, failure mode 7 — 'mechanical system not responding.' The ECM could not confirm the injector's response during its fuel-system self-verification. | On the C6.4, frequently logged across all injectors when the engine never reaches operating temperature (classically a thermostat stuck open). Genuine injector wear or back-leakage can also set it. | Verify the engine reaches operating temperature (check the thermostat), then run the fuel system verification test in Cat ET — that test clears these codes. Never replace injectors on this code alone; if replacing one, program its trim code into the ECM. |
| 588-9 | Monitor system not communicating — the cab monitor and controllers have lost communication on the machine data link. | Damaged or corroded data-link wiring and connectors (often water/humidity ingress), or a power/ground problem at the monitor or ECM. | Check monitor and ECM power and ground, then inspect data-link connectors for corrosion and moisture. Intermittent faults may need signal-level testing; confirm with Cat ET. |
Codes and remedies are general guidance for this model family — always confirm with diagnostic tooling and your dealer before major repairs.
320D attachments & work tools
Buckets — capacity range
Published bucket range for the 320D/320D L is roughly 0.5–1.2 m³ (0.6–1.6 yd³), with a 0.9–1.0 m³ (1.2–1.3 yd³) general-purpose bucket as the reference fit; the exact usable size varies by configuration (stick length, GD vs HD shell, material density). The reach-boom sticks (R2.5B1/R2.9B1/R3.9B1) carry the B1 bucket-linkage family, while the mass-excavation stick (CB2) takes larger C-family buckets for high-volume digging.
Buckets — types and widths
General Duty buckets suit dirt/loam/fine gravel; Heavy Duty buckets add 20–40% thicker wear plates for mixed clay-and-rock; dedicated rock/severe-duty shells for this class typically run ~900–1,100 mm (36–43 in) wide at ~0.8–1.0 m³. Typical digging-bucket widths on a 320D run about 750–1,350 mm (30–54 in), with wide ditch-cleaning/grading buckets at 1,500–2,000 mm (60–79 in). Buckets mount pin-on (80 mm pins) or via a coupler — a pin-grabber coupler picks up the same pin-on buckets, while CW-coupler machines need buckets with dedicated CW hooks/brackets.
Buckets — pin/linkage interface
The 320D's B-family linkage uses nominally 80 mm (3.15 in) bucket and link pins (actual pin OD ~79.9 mm), shared across the Cat 318/319/320/321/323 size class — this is the dimension attachment vendors key on for 320D-fit tools. When buying used or aftermarket, confirm B1 linkage; the mass-excavation CB2 stick uses a different (C-family) interface. Varies by configuration.
Hydraulic hammers
The Cat hammer classes bracketing a 320D (20.3–21.6 t operating weight) are the H115Es (carrier class 12–20 t) and H120Es (carrier class 16–27 t); the H120Es is the center-of-range match for a 320D, especially the heavier 320D L, while the H115Es sits at the top of its rating on this machine. Breaker weight for this class runs roughly 1,070–1,860 kg (2,350–4,100 lb), with the H120Es at 1,480–1,860 kg needing about 100–170 L/min (26–45 gpm) of one-way flow at 350–620 blows/min. Shorter sticks (R2.5B1/R2.9B1) are recommended over the long R3.9B1 for hammer stability.
Quick couplers
Two systems are used on this class: the Cat Pin Grabber coupler (the B-linkage pin-grabber variant matches the 320 class, common in North America) picks up standard 80 mm pin-on buckets and tools and carries redundant/dual locking compliant with ISO 13031, EN 474 and AS 4772; the CW dedicated coupler (CW-40 for 20–30 t carriers, also CW-40S and hydraulic-connecting versions, common in Europe) requires tools with CW hooks or adapter brackets. The two systems are not interchangeable — a CW-hook bucket won't go on a pin grabber and vice versa.
Thumbs / grapples
Pin-on hydraulic thumbs built for the Cat 318–325 family fit the 320D's stick with its 80 mm main bucket pin; both mechanical (rigid, multi-position) and hydraulic (progressive-link) styles are offered by Cat and aftermarket builders. A thumb needs the two-way (double-function) auxiliary circuit; demolition/sorting grapples run on the same two-way circuit, and rotating grapples additionally require the medium-pressure circuit via Cat's Tool Control System. Thumbs also work in combination with pin-grabber couplers.
Rippers
Single-shank frost/rock rippers for the 320D mount on the B-linkage with two 80 mm pins; typical units in this class weigh roughly 400–550 kg (900–1,200 lb) with a shank around 1,080 mm (42–43 in) long. Ripper weight for 20 t carriers varies by builder — quick-coupler versions for 1–20 t machines run lighter (up to ~545 kg / 1,200 lb). No auxiliary hydraulics are needed; it is a purely mechanical tool.
Hydraulic kit notes
An auxiliary valve is standard on the 320D, and three field/factory control-circuit configurations cover work tools: Single Function (one-way flow combining both pumps — hammers, vibratory plate compactors), Double Function (two-way flow on one pump — thumbs, non-rotating grapples/shears), and the Tool Control System, which adds a medium-pressure circuit for rotating tools (rotating grapples, tilting tools, multi-processors). The main system supplies two pumps of ~205 L/min (54 gpm) each with ~35,000 kPa (5,075 psi) relief, comfortably above the H120Es hammer's 100–170 L/min demand. Standard 320D vs 320D L makes no difference to the tool interface — the L's longer, heavier undercarriage (~21.5 t vs ~20.3 t) mainly adds stability and lift for heavy tools like hammers and shears.
All 320D assemblies by section
Every catalogued assembly group for the Caterpillar 320D. Open an assembly to preview the parts inside — full OEM part numbers are available in Heavy Parts AI.
Air Inlet And Exhaust System
109-9313 Air Cleaner & Mounting Gp
| 10***13 | Air Cleaner & Mounting Group | 1 |
| 12***11 | Air Cleaner Group | 1 |
| 8T***21 | Washer-Hard; (11x21x2.5-mm Thk)(M10x1.50x30mm) | 4 |
264-8671 Air Cleaner Ar -Precleaner
| 26***71 | Air Cleaner Ar; -Precleaner | 1 |
| 27***73 | Air Cleaner Group | 1 |
| 27***78 | Cover Group-Hood; -Precleaner | 1 |
310-9676 Air Cleaner Gp
| 12***86 | Filter Element As-Air; (Primary, Ultra High Efficiency)(Filter) | 1 |
| 13***26 | Film-Instruction; (Top, Air Cleaner Cover) | 1 |
| 17***92 | Cover As | 1 |
310-9667 Air Cleaner Gp
| 11***17 | Valve-Dust; (Air Cleaner) | 1 |
| 13***21 | Filter Element As-Air; (Secondary) | 1 |
| 13***22 | Filter Element As-Air; (Primary) | 1 |
272-4773 Air Cleaner Gp
| 11***59 | Damper | 1 |
| 13***80 | Precleaner As; (Air) | 1 |
| 13***89 | Clamp | 1 |
124-1711 Air Cleaner Gp
| 11***17 | Valve-Dust; (Air Cleaner) | 1 |
| 12***11 | Air Cleaner Group | 1 |
| 13***20 | Body As | 1 |
5i-7589 Cartridge As-Turbocharger
| 13***46 | Plate | 1 |
| 13***47 | Bearing-Thrust | 1 |
| 13***48 | Deflector-Oil | 1 |
255-3044 Extension Gp-Exhaust
| 25***44 | Extension Group-Exhaust | 1 |
| 26***46 | Pipe | 1 |
| 4I***54 | Clamp | 1 |
272-4744 Lines Gp-Air
| 14***67 | Clamp; (Hose) | 1 |
| 27***44 | Lines Group-Air; -Air Cleaner To Turbocharger | 1 |
| 27***07 | Hose-Air | 1 |
265-3504 Lines Gp-Air
| 21***12 | Support | 1 |
| 26***04 | Lines Group-Air; -Aftercooler To Turbocharger | 1 |
| 26***81 | Tube As | 1 |
287-0183 Lines Gp-Muffler Drain
| 17***73 | Clip | 1 |
| 28***18 | Adapter As | 1 |
| 28***71 | Tube As | 1 |
296-4653 Manifold Gp-Exhaust
| 09***74 | Nut; (M8x1.25-Thd) | 1 |
| 17***52 | Manifold | 1 |
| 17***54 | Stud; (M10x1.5x15-mm, M10x1.25x20-mm) | 4 |
296-4652 Manifold Gp-Inlet
| 09***90 | Bolt (70mm Long) | 12 |
| 22***53 | Switch Group-Magnetic; -Starting Aid Heater-Starting Aid Heater Relay | 1 |
| 29***00 | Bolt; (M8x1.25x108.3-mm) | 16 |
296-4662 Muffler Gp
| 09***83 | Clamp Assembly. | 1 |
| 17***54 | Stud; (M10x1.5x15-mm, M10x1.25x20-mm) | 3 |
| 26***19 | Bracket | 1 |
287-0049 Turbocharger Gp
| 13***52 | Ring-Retaining | 1 |
| 28***49 | Turbocharger Group | 1 |
| 29***63 | Housing | 1 |
Basic Engine
305-4744 Camshaft Gp
| 09***28 | Key | 1 |
| 29***16 | Pushrod | 12 |
| 30***44 | Camshaft Group | 1 |
296-4647 Cover Gp-Valve Mechanism
| 09***99 | Bolt; (M8x1.25x30.5-mm) | 7 |
| 09***69 | Bolt; (140-mm Lg) | 2 |
| 29***00 | Bolt; (M8x1.25x108.3-mm) | 16 |
296-4650 Crankshaft Gp
| 08***13 | Pin | 2 |
| 09***28 | Key | 2 |
| 13***96 | Nut | 1 |
294-1725 Cylinder Block Gp
| 09***41 | Bolt-Bearing Cap; (M14x2x120-mm) | 14 |
| 09***24 | Gasket | 12 |
| 09***05 | Cap | 2 |
296-4648 Cylinder Block Gp
| 09***01 | Washer; (3mm Thk) | 4 |
| 09***83 | Bolt; (M12 X 1.25 X 30mm) | 2 |
| 29***24 | Eye | 1 |
297-7644 Cylinder Head As
| 10***11 | Cap-Sealing | 13 |
| 29***78 | Guide | 24 |
| 29***79 | Seat | 12 |
296-4645 Cylinder Head Gp
| 29***82 | Gasket | 1 |
| 29***83 | Bolt | 26 |
| 29***45 | Cylinder Head Group | 1 |
296-4644 Flywheel Gp
| 09***01 | Washer; (3mm Thk) | 6 |
| 20***88 | Gear; (127-Teeth) | 1 |
| 29***52 | Flywheel As | 1 |
296-4651 Gear Gp-Front
| 29***53 | Gear As-Idler; (69-Teeth) | 1 |
| 29***54 | Gear; (62-Teeth) | 1 |
| 29***55 | Gear; (62-Teeth) | 1 |
296-4643 Housing Gp-Flywheel
| 29***26 | Bolt; (M10x1.5x37-mm) | 10 |
| 29***36 | Housing | 1 |
| 29***37 | Bolt; (M8x1.25x35.5-mm) | 8 |
296-4649 Housing Gp-Front
| 09***35 | Plug-Drain | 1 |
| 09***28 | Seal-O-Ring (Id=109.5mm) | 1 |
| 09***32 | Washer; (15.8x22.5x2-mm Thk) | 1 |
296-4661 Mounting Gp-Alternator
| 17***98 | Bolt; (M12x1.25x135-mm) | 1 |
| 17***99 | Washer | 1 |
| 17***00 | Puller | 1 |
266-6297 Mounting Gp-Engine
| 10***29 | Washer; (21.5x120x8-mm Thk) | 4 |
| 11***84 | Bracket-Rear | 2 |
| 11***85 | Bracket-Front | 2 |
296-4637 Mounting Gp-Starting Motor
| 13***69 | Cover | 1 |
| 13***70 | Bolt; (M5x0.8x25-mm) | 1 |
| 27***74 | Starting Motor Group-Electric | 1 |
296-4640 Pan Gp-Oil
| 10***02 | Kit-Receptacle; (2-Pin)(Engine Sensor Wiring Harness) | 2 |
| 12***68 | Gasket | 1 |
| 18***76 | Valve; (Engine Oil Pressure Relief) | 1 |
296-4659 Piston & Rod Gp
| 09***34 | Pin | 6 |
| 09***54 | Bolt; (M12x1.25-1x85-mm) | 2 |
| 09***16 | Nut; (M12x1.25-Thd) | 2 |
296-4667 Pulley Gp-Engine
| 21***84 | Pulley | 1 |
| 21***96 | Bushing | 2 |
| 21***33 | Bolt; (M10x1.5x45-mm) | 4 |
297-7747 Pulley Gp-Engine
| 21***84 | Pulley | 1 |
| 21***93 | Plate | 1 |
| 22***71 | Pulley As; (Drive)(Drive) | 1 |
305-4775 Pulley Gp-Fan
| 21***96 | Bushing | 2 |
| 25***71 | Washer; (10.5x38x7-mm Thk) | 1 |
| 25***73 | Bolt As | 1 |
255-3018 Pulley Gp-Idler
| 23***26 | Pulley-Idler | 1 |
| 23***27 | Bolt; (M8x1.25x110-mm) | 1 |
| 23***30 | Collar | 1 |
305-4908 Pulley Gp-Idler
| 29***84 | Pulley | 1 |
| 29***85 | Bearing | 2 |
| 29***86 | Ring | 1 |
327-7193 Pulley Gp-Idler
| 23***26 | Pulley-Idler | 1 |
| 23***27 | Bolt; (M8x1.25x110-mm) | 1 |
| 23***30 | Collar | 1 |
305-4910 Valve Mechanism Gp
| 09***74 | Nut; (M8x1.25-Thd) | 2 |
| 09***25 | Screw | 2 |
| 09***41 | Cap | 1 |
Cooling System
296-4642 Cooler Gp-Engine Oil
| 09***66 | Bolt | 14 |
| 09***67 | Bolt | 4 |
| 09***21 | Plug | 2 |
298-4272 Cooling Ar-High Ambient Temp
| 23***79 | Fan Group-Suction | 1 |
| 26***00 | Radiator & Hydraulic Oil Cooler Group | 1 |
| 28***10 | Door Group-Access; -Radiator | 1 |
230-2979 Fan Gp-Suction
| 11***18 | Clip | 1 |
| 13***89 | Clip; (Ladder) | 1 |
| 23***79 | Fan Group-Suction | 1 |
245-9313 Fan Gp-Suction
| 24***13 | Fan Group-Suction | 1 |
| 24***43 | Fan As; (10-Blade, Bolt Mtg Dia 170-mm) | 1 |
| 8T***89 | Bolt (20mm Long) 0 Degrees); (L=20mm) {For 5br, 6cr} | 6 |
296-4658 Housing & Regulator Gp
| 09***19 | Bolt (50mm Long) | 3 |
| 09***32 | Washer; (15.8x22.5x2-mm Thk) | 2 |
| 15***24 | Valve Group-Fluid Sampling; (3/8-18 Nptf Thd) | 1 |
296-4655 Pump Gp-Water
| 12***47 | Washer; (1-mm Thk) | 1 |
| 17***33 | Pump Group-Water | 1 |
| 17***34 | Impeller | 1 |
281-3602 Radiator & Hyd Oil Cooler Gp -Basic
| 09***32 | Valve As-Drain | 1 |
| 09***43 | Seal-O-Ring | 2 |
| 09***35 | Clamp | 2 |
265-3600 Radiator & Hyd Oil Cooler Gp
| 09***35 | Clamp | 1 |
| 17***69 | Cap As; (Coolant Recovery) | 1 |
| 17***77 | Band | 1 |
265-3616 Radiator & Hyd Oil Cooler Gp
| 09***35 | Clamp | 1 |
| 17***69 | Cap As; (Coolant Recovery) | 1 |
| 17***77 | Band | 1 |
336-4589 Radiator & Hyd Oil Cooler Gp
| 09***35 | Clamp | 2 |
| 31***38 | Core As-Oil Cooler; (Hydraulic) | 1 |
| 31***39 | Aftercooler As | 1 |
326-3875 Radiator & Hyd Oil Cooler Gp
| 09***32 | Valve As-Drain | 1 |
| 09***43 | Seal-O-Ring | 2 |
| 09***35 | Clamp | 2 |
326-3876 Radiator & Hyd Oil Cooler Gp
| 09***32 | Valve As-Drain | 1 |
| 09***43 | Seal-O-Ring | 2 |
| 09***35 | Clamp | 2 |
281-3601 Radiator & Hyd Oil Cooler Gp
| 09***32 | Valve As-Drain | 1 |
| 09***43 | Seal-O-Ring | 2 |
| 09***35 | Clamp | 2 |
326-3937 Radiator & Hyd Oil Cooler Gp
| 32***76 | Radiator & Hydraulic Oil Cooler Group | 1 |
| 32***37 | Radiator & Hydraulic Oil Cooler Group | 1 |
| 33***89 | Radiator & Hydraulic Oil Cooler Group | 1 |
Electrical And Starting System
132-1829 Alarm Gp
| 10***02 | Kit-Receptacle; (2-Pin)(Engine Sensor Wiring Harness) | 1 |
| 13***29 | Alarm Group; -Overload Warning | 1 |
| 18***35 | Pin-Connector; (16-Ga To 18-Ga) | 2 |
231-1771 Alarm Gp-Travel
| 10***02 | Kit-Receptacle; (2-Pin)(Engine Sensor Wiring Harness) | 1 |
| 18***35 | Pin-Connector; (16-Ga To 18-Ga) | 1 |
| 21***00 | Back-Up Alarm Assem. | 1 |
212-8561 Alternator Gp-Charging
| 08***29 | Nut Set | 1 |
| 09***13 | Nut Set | 1 |
| 13***81 | Plate | 1 |
267-8000 Battery & Wiring Gp
| 08***29 | Spacer; (9x19x30-mm Thk) | 2 |
| 09***35 | Spacer; (11x25x20-mm Thk) | 1 |
| 10***02 | Kit-Receptacle; (2-Pin)(Engine Sensor Wiring Harness) | 4 |
259-5049 Battery & Wiring Gp -Cold Weather
| 17***29 | Cable As | 1 |
| 1M***19 | Bolt; (5/16-18x1.375-In)(5/16-18x1.375 In) | 1 |
| 1M***20 | Nut-Battery Terminal (5/16-18 Thd); (5/16-18-Thd)(5/16-18x1.375 In) | 1 |
9w-0742 Block Gp-Junction -Battery
| 1D***17 | Nut,Plain,Hexagon Starter Motor Assembly | 3 |
| 6V***22 | Tube-Heat Shrink; (25.4-mm Dia)(10-M) | 0 |
| 7F***60 | Washer | 6 |
327-3329 Camera & Mounting Gp -Work Area Visual System, Rear
| 31***33 | Camera & Mounting Group; -Work Area Visual System, Rear | 1 |
| 32***96 | Cover | 1 |
| 32***29 | Camera & Mounting Group; -Work Area Visual System, Rear | 1 |
313-7833 Camera & Mounting Gp -Work Area Visual System, Rear
| 31***33 | Camera & Mounting Group; -Work Area Visual System, Rear | 1 |
| 32***92 | Bracket As | 1 |
| 33***84 | Camera Group; -Work Area Visual System, Rear | 1 |
314-3735 Camera Ar
| 31***35 | Camera Ar | 1 |
| 31***74 | Camera Ar; -Work Area Visual System | 1 |
| 33***94 | Machine Ar | 1 |
314-3774 Camera Ar -Work Area Visual System
| 30***87 | Seal/O-Ring, Film Group; -Work Area Visual System, Rear, O Ring Seal, O-Ring | 1 |
| 31***74 | Camera Ar; -Work Area Visual System | 1 |
| 32***74 | Wiring Group-Camera; -Rear Vision Camera | 1 |
336-6684 Camera Gp -Work Area Visual System, Rear
| 25***62 | Kit-Bracket; (Camera) | 1 |
| 33***84 | Camera Group; -Work Area Visual System, Rear | 1 |
309-5881 Control & Mtg Gp-Communication -Product Link 121sr
| 11***36 | Clip | 1 |
| 23***40 | Film; (Warning) (Product Link, Ansi) (On Lh Front Post Inside Cab) | 1 |
| 23***41 | Film-Warning; (Product Link Radio, Intl) | 1 |
247-5284 Control & Mtg Gp-Communication -Product Link 300
| 23***54 | Control Group-Unprogrammed; (Product Link 300)(Product Link 321sr) | 1 |
| 24***84 | Control & Mtg Group-Communication; -Product Link 300 | 1 |
| 26***42 | Bracket As | 1 |
309-5842 Control & Mtg Gp-Communication -Product Link 300
| 26***42 | Bracket As | 1 |
| 26***21 | Electronics Group-Communication; -Product Link 300 | 1 |
| 30***42 | Control & Mtg Group-Communication; -Product Link 321sr | 1 |
296-4664 Control & Mtg Gp-Engine Elek
| 15***76 | Mount-Isolation | 8 |
| 17***77 | Bolt; (M8x1.25x100-mm) | 2 |
| 27***59 | Bolt; (M8x1.25x40-mm) | 2 |
221-8872 Control & Mtg Gp-Machine
| 22***72 | Control & Mtg Group-Machine | 1 |
| 22***74 | Control Group-Unprogrammed | 1 |
| 9X***80 | Bolt (45mm Long); (M6x1x45-mm) | 4 |
239-9954 Control Gp-Unprogrammed -Product Link 300
| 12***74 | Screw-Pan Head; (8-32x9.52-mm) | 1 |
| 13***26 | Washer; (4.52x8.28x0.76-mm Thk) | 1 |
| 23***54 | Control Group-Unprogrammed; (Product Link 300)(Product Link 321sr) | 1 |
262-1421 Electronics Gp-Communication -Product Link 300
| 12***74 | Screw-Pan Head; (8-32x9.52-mm) | 1 |
| 13***26 | Washer; (4.52x8.28x0.76-mm Thk) | 1 |
| 26***21 | Electronics Group-Communication; -Product Link 300 | 1 |
262-2043 Electronics Gp-Communication -Product Link 300
| 12***74 | Screw-Pan Head; (8-32x9.52-mm) | 1 |
| 13***26 | Washer; (4.52x8.28x0.76-mm Thk) | 1 |
| 26***43 | Electronics Group-Communication; -Product Link 300 | 1 |
270-5512 Electronics Gp-Machine -Machine Control
| 27***12 | Electronics Group-Machine; -Machine Control | 1 |
| 34***35 | Software Group-Machine | 1 |
| 34***36 | Service Group-Machine | 1 |
221-8861 Electronics Gp-Monitor
| 22***61 | Electronics Group-Monitor | 1 |
| 34***08 | Monitor Group-Operator | 1 |
| 34***10 | Software Group-Monitor | 1 |
259-5237 Fastener Gp-Wiring Harness -Heavy Lift
| 25***37 | Fastener Group-Wiring Harness; -Heavy Lift | 1 |
| 7I***73 | Strap-Cable | 1 |
251-0436 Fastener Gp-Wiring Harness
| 11***18 | Clip | 1 |
| 15***75 | Ladder Clip | 1 |
| 25***36 | Fastener Group-Wiring Harness | 1 |
251-0526 Fastener Gp-Wiring Harness -Straight Travel
| 11***18 | Clip | 1 |
| 25***26 | Fastener Group-Wiring Harness; -Straight Travel | 1 |
| 3S***93 | Strap-Cable-To Tie Harnesses Together | 1 |
259-5294 Fastener Gp-Wiring Harness -Foot Switch
| 11***18 | Clip | 1 |
| 25***94 | Fastener Group-Wiring Harness; -Foot Switch | 1 |
| 7X***21 | Bolt; (M10x1.5x12-mm) | 1 |
264-8665 Installation Ar-Communication -Product Link 321sr
| 24***84 | Control & Mtg Group-Communication; -Product Link 300 | 1 |
| 26***43 | Electronics Group-Communication; -Product Link 300 | 1 |
| 26***65 | Installation Ar-Communication; -Product Link 321sr | 1 |
264-8666 Installation Ar-Communication -Product Link 121sr
| 26***66 | Installation Ar-Communication; -Product Link 121sr | 1 |
| 26***08 | Wiring Group-Communication; -Product Link 121sr | 1 |
| 27***11 | Installation Group-Communication; -Product Link 121sr | 1 |
298-4115 Installation Ar-Communication -Product Link 321sr
| 26***07 | Wiring Group-Communication; -Product Link 321sr | 1 |
| 29***15 | Installation Ar-Communication; -Product Link 321sr | 1 |
| 30***71 | Mounting Group-Antenna; -Product Link | 1 |
270-5511 Installation Gp-Communication -Product Link 121sr
| 23***40 | Film; (Warning) (Product Link, Ansi) (On Lh Front Post Inside Cab) | 1 |
| 23***41 | Film-Warning; (Product Link Radio, Intl) | 1 |
| 26***88 | Radio Group-Communication; -Product Link 121sr | 1 |
227-7581 Installation Gp-Security
| 20***62 | Key As-Electronic; (Security) | 2 |
| 20***65 | Key As-Electronic; (Security)(Blank) | 1 |
| 21***04 | Module Group-Interface; (Key)(Machine Security System) | 1 |
5i-8251 Lamp Gp-Flood -24-Volt
| 10***01 | Lens Assem. | 1 |
| 10***02 | Band | 1 |
| 10***03 | Ring (Rubber) | 1 |
153-2523 Lamp Gp-Flood -24-Volt
| 15***23 | Lamp Group-Flood; -Horizontal Rh | 1 |
| 17***93 | Cover | 1 |
| 17***17 | Lens As; (Floodlight) | 1 |
153-2521 Lamp Gp-Flood -24-Volt
| 15***21 | Lamp Group-Flood; -Chassis, Boom-Boom, Rear | 1 |
| 17***93 | Cover | 1 |
| 17***17 | Lens As; (Floodlight) | 1 |
4i-5409 Lighting Gp-Chassis
| 15***23 | Lamp Group-Flood; -Horizontal Rh | 1 |
| 4I***09 | Lighting Group-Chassis; -Front, Rh | 1 |
| 5I***51 | Lamp Group-Flood; -Chassis | 1 |
259-5047 Lighting Gp-Flood -Boom, Rh
| 11***36 | Clip | 2 |
| 13***84 | Bracket | 1 |
| 15***21 | Lamp Group-Flood; -Chassis, Boom-Boom, Rear | 1 |
259-5043 Lighting Gp-Flood -Boom, Lh
| 11***36 | Clip | 4 |
| 11***37 | Clip | 1 |
| 11***18 | Clip | 1 |
267-7627 Lighting Gp-Flood -Short Boom, Lh
| 11***36 | Clip | 4 |
| 11***37 | Clip | 1 |
| 11***18 | Clip | 1 |
163-6772 Lighting Gp-Flood -Cab
| 16***72 | Lighting Group-Flood; -Cab | 1 |
| 16***95 | Strap; (Cable) | 2 |
| 16***13 | Cover; (Lh) | 1 |
328-0040 Panel & Mtg Gp-Circuit Breaker
| 32***01 | Panel Group-Circuit Breaker | 1 |
| 32***40 | Panel & Mtg Group-Circuit Breaker | 1 |
| 8T***21 | Washer-Hard; (11x21x2.5-mm Thk)(M10x1.50x30mm) | 4 |
259-5176 Panel & Mtg Gp-Circuit Breaker
| 25***76 | Panel & Mtg Group-Circuit Breaker | 1 |
| 25***77 | Panel Group-Circuit Breaker | 1 |
| 8T***21 | Washer-Hard; (11x21x2.5-mm Thk)(M10x1.50x30mm) | 4 |
259-5177 Panel Gp-Circuit Breaker
| 12***23 | Block; (Terminal) | 1 |
| 12***76 | Tube-Heat Shrink; (17.78-mm Dia)(140-cm) | 0 |
| 17***08 | Circuit Breaker As; (60-Ampere) | 1 |
324-5801 Panel Gp-Circuit Breaker
| 12***23 | Block; (Terminal) | 1 |
| 12***74 | Tube-Heat Shrink; (5.72-mm Dia)(950-cm) | 0 |
| 12***76 | Tube-Heat Shrink; (17.78-mm Dia)(140-cm) | 0 |
319-1386 Panel Gp-Circuit Breaker
| 10***02 | Kit-Receptacle; (2-Pin)(Engine Sensor Wiring Harness) | 1 |
| 11***14 | Switch As-Magnetic; (24-Volt)(Heater Relay) | 1 |
| 12***23 | Block; (Terminal) | 1 |
251-0542 Panel Gp-Switch -Engine Speed, Start
| 09***66 | Washer; (Hard) (4.5x9x1mm Thk) | 4 |
| 10***02 | Kit-Receptacle; (2-Pin)(Engine Sensor Wiring Harness) | 1 |
| 10***07 | Switch Group-Rotary; -Autodig Material Select-Throttle Position | 1 |
251-0544 Panel Gp-Switch -Engine Speed, Start
| 09***66 | Washer; (Hard) (4.5x9x1mm Thk) | 4 |
| 10***02 | Kit-Receptacle; (2-Pin)(Engine Sensor Wiring Harness) | 1 |
| 11***26 | Screw; (Pan Head) (10-16x0.63 In) | 4 |
296-4666 Sensor Gp-Engine
| 23***28 | Receptacle As-Connector | 1 |
| 23***12 | Sensor Group-Temperature; (Engine Block Coolant Outlet) | 3 |
| 23***18 | Sensor Group-Pressure; (Fuel Manifold) | 1 |
272-4772 Sensor Gp-Liquid Level
| 17***45 | Sensor Group-Liquid Level; -Water Separator-Water In Fuel | 1 |
| 27***72 | Sensor Group-Liquid Level; -Water Separator | 1 |
| 3S***93 | Strap-Cable-To Tie Harnesses Together | 1 |
178-2345 Sensor Gp-Liquid Level
| 10***04 | Kit-Receptacle; (4-Pin)(Start Switch) | 1 |
| 15***70 | Kit-Connecting Plug; (2-Pin)(Engine Sensor Wiring Harness) | 1 |
| 17***34 | Probe As-Liquid Level; (Water Separator) | 1 |
272-4774 Starting Motor Gp-Electric
| 09***50 | Stopper Set | 1 |
| 09***80 | Packing | 2 |
| 09***85 | Bolt Set | 1 |
5c-6108 Switch Gp-Refueling -Fuel Tank Shutoff
| 2S***78 | Seal-O-Ring (Id=37.47mm) | 1 |
| 3D***24 | O-Ring - For Oil Drain & Level Plug (Items 3 & 7) | 1 |
| 4B***49 | Nut-Valve To Bracket; 3.18mm(.125in)Thk | 2 |
7n-0719 Switch Gp-Disconnect -Battery
| 2H***22 | Lockwasher | 1 |
| 6F***45 | Nut-Full; (3/8-24-Thd) | 4 |
| 7F***59 | Lockwasher | 4 |
223-4453 Switch Gp-Magnetic
| 10***02 | Kit-Receptacle; (2-Pin)(Engine Sensor Wiring Harness) | 1 |
| 18***35 | Pin-Connector; (16-Ga To 18-Ga) | 2 |
| 20***82 | Switch Group-Magnetic; -Starting Aid Heater Relay-Air Inlet Heater Relay | 1 |
259-5274 Switch Gp-Magnetic
| 01***80 | Lockwasher | 2 |
| 10***02 | Kit-Receptacle; (2-Pin)(Engine Sensor Wiring Harness) | 1 |
| 18***35 | Pin-Connector; (16-Ga To 18-Ga) | 2 |
209-5582 Switch Gp-Magnetic
| 10***02 | Kit-Receptacle; (2-Pin)(Engine Sensor Wiring Harness) | 1 |
| 20***82 | Switch Group-Magnetic; -Starting Aid Heater Relay-Air Inlet Heater Relay | 1 |
| 3F***56 | Lockwasher; (8.43x15.5x0.76mm Thk) | 2 |
234-6613 Switch Gp-Position -Hydraulic Lockout
| 08***83 | Washer; (0.8mm Thk) | 2 |
| 10***03 | Kit; (Receptacle) (3-Pin) (Includes Receptacle As & Wedge) | 1 |
| 11***99 | Switch As; (Hydraulic Lockout, Neutral Start) | 1 |
238-1594 Switch Gp-Push Button -Refueling Pump, Start
| 12***75 | Tube-Heat Shrink; (7.44-mm Dia)(560-cm) | 0 |
| 1S***12 | Screw-Tapping | 2 |
| 23***94 | Switch Group-Push Button; -Refueling Pump, Start | 1 |
238-1596 Switch Gp-Push Button -Refueling Pump, Stop
| 12***75 | Tube-Heat Shrink; (7.44-mm Dia)(560-cm) | 0 |
| 1S***12 | Screw-Tapping | 2 |
| 23***11 | Plug As-Connector; (2-Pin) | 1 |
319-4420 Switch Gp-Rotary -Throttle Position
| 10***10 | Seal | 1 |
| 12***67 | Pin-Connector; (14-Ga To 16-Ga)(14-Ga Wire) | 5 |
| 24***08 | Receptacle As-Connector; (6-Pin) | 1 |
106-0107 Switch Gp-Rotary
| 10***05 | Kit-Receptacle; (6-Pin)(Display Monitor Harness) | 1 |
| 10***07 | Switch Group-Rotary; -Autodig Material Select-Throttle Position | 1 |
| 10***10 | Seal | 1 |
9g-7641 Switch Gp-Start -Engine, Key
| 6V***24 | Lock As-Cylinder | 1 |
| 6V***62 | Screw-Machine; (8-32x0.31-In) | 4 |
| 7T***99 | Nut-Mounting; (1-32-Thd) | 1 |
238-2478 Switch Gp-Toggle
| 23***78 | Switch Group-Toggle; -Quick Coupler-Quick Coupler Lock | 1 |
| 23***79 | Harness As-Wiring; (Quick Coupler Switch) | 1 |
| 3S***93 | Strap-Cable-To Tie Harnesses Together | 1 |
238-2485 Switch Gp-Toggle -Quick Coupler Lock
| 23***78 | Switch Group-Toggle; -Quick Coupler-Quick Coupler Lock | 1 |
| 23***85 | Switch Group-Toggle; -Quick Coupler Lock | 1 |
| 25***84 | Bracket As; (Quick Coupler) | 1 |
275-7203 Wiring Gp-Auxiliary Control -Systems 3, 5
| 13***89 | Clip; (Ladder) | 1 |
| 15***75 | Ladder Clip | 1 |
| 27***97 | Harness As-Auxiliary | 1 |
306-8349 Wiring Gp-Cab -Accugrade Ready
| 11***91 | Fuse; (15-Ampere) | 1 |
| 30***49 | Wiring Group-Cab; -Accugrade Ready | 1 |
| 30***50 | Rocker Lever; Intake, Cylinders 1,3,5., Rocker Lever, Harness As-Control | 1 |
328-0048 Wiring Gp-Cab -Rear Vision Camera
| 12***75 | Tube-Heat Shrink; (7.44-mm Dia)(560-cm) | 0 |
| 30***90 | Harness As-Wiring; (Work Area Visual System, Rear) | 1 |
| 32***98 | Harness As-Auxiliary; (Work Area Visual System, Rear) | 1 |
267-7642 Wiring Gp-Cab -Coupler
| 10***65 | Terminal; (Female) | 3 |
| 10***75 | Switch As-Toggle; (Hydraulic Attachment Control) | 1 |
| 12***73 | Terminal; (Male) | 3 |
259-5161 Wiring Gp-Cab
| 09***80 | Switch-Magnetic; (24-Volt)(Start Relay) | 1 |
| 09***23 | Screw; (M3x0.5x10-mm) | 3 |
| 09***42 | Screw; (Machine) (M6x1.0x16mm) | 2 |
251-0529 Wiring Gp-Cab
| 11***18 | Clip | 2 |
| 14***50 | Relay; (24-Volt)(Hydraulic Lock, Quick Cplr, Supply) | 1 |
| 24***08 | Receptacle As-Connector; (6-Pin) | 1 |
324-5774 Wiring Gp-Camera -Rear Vision Camera
| 26***43 | Cable As | 1 |
| 32***74 | Wiring Group-Camera; -Rear Vision Camera | 1 |
| 3S***93 | Strap-Cable-To Tie Harnesses Together | 20 |
319-1387 Wiring Gp-Chassis -Cab, Rear
| 10***02 | Kit-Receptacle; (2-Pin)(Engine Sensor Wiring Harness) | 1 |
| 10***73 | Plug-Connector | 1 |
| 12***75 | Tube-Heat Shrink; (7.44-mm Dia)(560-cm) | 0 |
299-2954 Wiring Gp-Chassis -Accugrade Ready
| 11***36 | Clip | 1 |
| 13***89 | Clip; (Ladder) | 2 |
| 17***07 | Boss | 2 |
259-5045 Wiring Gp-Combined Flow
| 11***36 | Clip | 2 |
| 11***18 | Clip | 1 |
| 12***74 | Tube-Heat Shrink; (5.72-mm Dia)(950-cm) | 0 |
267-8007 Wiring Gp-Communication -Product Link 321sr
| 11***37 | Clip | 1 |
| 11***18 | Clip | 3 |
| 13***89 | Clip; (Ladder) | 2 |
267-8008 Wiring Gp-Communication -Product Link 121sr
| 09***35 | Spacer; (11x25x20-mm Thk) | 1 |
| 10***03 | Kit; (Receptacle) (3-Pin) (Includes Receptacle As & Wedge) | 1 |
| 11***18 | Clip | 2 |
251-0433 Wiring Gp-Console
| 23***36 | Wiring Group-Console; -Lh | 1 |
| 25***33 | Wiring Group-Console | 1 |
| 25***35 | Wiring Group-Console; -Rh | 1 |
231-1836 Wiring Gp-Console -Lh
| 15***60 | Kit-Connecting Plug; (3-Pin)(Engine Sensor Wiring Harness) | 1 |
| 16***95 | Strap; (Cable) | 2 |
| 23***11 | Plug As-Connector; (2-Pin) | 1 |
251-0435 Wiring Gp-Console -Rh
| 10***06 | Receptacle Kit; (Includes Wedge And Receptacle Assem.) | 1 |
| 15***65 | Kit-Connecting Plug; (8-Pin)(Electronic Control Channel) | 1 |
| 16***11 | Switch As-Toggle; (Manual Engine Speed Control) | 1 |
251-0485 Wiring Gp-Converter -12-Volt, 7-Ampere
| 12***87 | Socket-Auxiliary Power; (12-Volt, 7-Ampere) | 2 |
| 25***83 | Bracket | 2 |
| 25***85 | Wiring Group-Converter; -12-Volt, 7-Ampere | 1 |
296-4665 Wiring Gp-Electronic Control
| 09***01 | Washer; (3mm Thk) | 1 |
| 09***60 | Bolt | 1 |
| 28***67 | Bolt | 3 |
259-5051 Wiring Gp-Engine -Jump Start
| 1M***19 | Bolt; (5/16-18x1.375-In)(5/16-18x1.375 In) | 1 |
| 1M***20 | Nut-Battery Terminal (5/16-18 Thd); (5/16-18-Thd)(5/16-18x1.375 In) | 1 |
| 1S***51 | Terminal-Cable; (00-Ga, 1/2-In Screw) | 2 |
291-7716 Wiring Gp-Fan -Hyd Fan Ctl, Air Temp Ctl
| 10***03 | Kit; (Receptacle) (3-Pin) (Includes Receptacle As & Wedge) | 1 |
| 10***18 | Sensor Group-Temperature; (Intake Manifold Air) | 1 |
| 11***50 | Sleeve (31cm); (31-cm) | 0 |
291-7463 Wiring Gp-Fan -Fluid Clutch
| 11***18 | Clip | 1 |
| 13***89 | Clip; (Ladder) | 2 |
| 23***52 | Plug As-Connector; (6-Pin) | 1 |
306-8501 Wiring Gp-Fan -Fluid Clutch
| 29***63 | Wiring Group-Fan; -Fluid Clutch | 1 |
| 29***16 | Wiring Group-Fan; -Hydraulic Fan Ctl, Air Temp Ctl | 1 |
| 30***01 | Wiring Group-Fan; -Fluid Clutch | 1 |
259-5052 Wiring Gp-Fine Swing
| 11***36 | Clip | 1 |
| 11***37 | Clip | 3 |
| 23***71 | Bracket As | 1 |
306-8690 Wiring Gp-Heater
| 10***02 | Kit-Receptacle; (2-Pin)(Engine Sensor Wiring Harness) | 1 |
| 11***18 | Clip | 1 |
| 12***74 | Tube-Heat Shrink; (5.72-mm Dia)(950-cm) | 0 |
259-5046 Wiring Gp-Hydraulic Control -Return Filter
| 11***18 | Clip | 1 |
| 13***89 | Clip; (Ladder) | 2 |
| 15***70 | Kit-Connecting Plug; (2-Pin)(Engine Sensor Wiring Harness) | 1 |
275-7003 Wiring Gp-Platform
| 09***28 | Screw; (Machine) (M4x0.7x12mm) | 2 |
| 09***66 | Washer; (Hard) (4.5x9x1mm Thk) | 2 |
| 10***64 | Connector-Plug | 1 |
259-5044 Wiring Gp-Quick Coupler
| 23***11 | Plug As-Connector; (2-Pin) | 1 |
| 24***05 | Receptacle As-Connector; (2-Pin) | 1 |
| 25***44 | Wiring Group-Quick Coupler | 1 |
267-8002 Wiring Gp-Quick Coupler
| 11***18 | Clip | 1 |
| 13***89 | Clip; (Ladder) | 2 |
| 26***02 | Wiring Group-Quick Coupler | 1 |
238-1570 Wiring Gp-Refueling Pump -Refueling
| 09***91 | Screw-Machine; (M5x0.8x35-mm) | 2 |
| 14***50 | Relay; (24-Volt)(Hydraulic Lock, Quick Cplr, Supply) | 2 |
| 21***72 | Switch As-Magnetic; (24-Volt)(Refueling Power Relay) | 1 |
238-2208 Switch Gp-Wiper -Lower
| 16***42 | Connector; (Receptacle) | 1 |
| 16***43 | Terminal; (Male) | 5 |
| 23***08 | Wiring Group-Window Wiper; -Lower | 1 |
Engine Arrangement
272-4683 Engine Ar
| 21***61 | Alternator Group-Charging | 1 |
| 27***83 | Engine Ar | 1 |
| 27***74 | Starting Motor Group-Electric | 1 |
272-4681 Engine Ar
| 24***13 | Fan Group-Suction | 1 |
| 27***81 | Engine Ar | 1 |
| 27***82 | Engine Ar-Complete | 1 |
310-9485 Engine Ar-Complete
| 27***83 | Engine Ar | 1 |
| 29***67 | Pulley Group-Engine | 1 |
| 31***85 | Engine Ar-Complete | 1 |
324-3975 Engine Ar-Complete
| 27***83 | Engine Ar | 1 |
| 29***67 | Pulley Group-Engine | 1 |
| 32***75 | Engine Ar-Complete | 1 |
272-4682 Engine Ar-Complete
| 27***82 | Engine Ar-Complete | 1 |
| 27***83 | Engine Ar | 1 |
| 29***47 | Pulley Group-Engine | 1 |
272-4742 Installation Ar-Engine
| 10***13 | Air Cleaner & Mounting Group | 1 |
| 16***85 | Lines Group-Engine Oil Drain | 1 |
| 23***07 | Compressor Group-Refrigerant | 1 |
Frame And Body
223-3040 Box & Mtg Gp-Storage
| 13***77 | Bolt As; (M12x1.75x35-mm) | 4 |
| 22***40 | Box & Mtg Group-Storage | 1 |
| 22***41 | Box Group-Storage | 1 |
223-3041 Box Gp-Storage
| 09***43 | Pin-Cotter | 1 |
| 09***80 | Pin; (Clevis) | 1 |
| 10***87 | Bolt; (Hex Socket) (M6x1.0x20.0mm) | 4 |
278-9257 Bumper Gp -Side
| 16***29 | Plate As | 1 |
| 18***21 | Bumper As | 2 |
| 18***25 | Bumper As | 1 |
262-2607 Counterweight & Mounting Gp
| 24***94 | Spacer; (32x65x30-mm Thk) | 4 |
| 26***07 | Counterweight & Mounting Group | 1 |
| 32***52 | Counterweight Group | 1 |
278-3908 Counterweight & Mounting Gp
| 24***94 | Spacer; (32x65x30-mm Thk) | 4 |
| 27***08 | Counterweight & Mounting Group | 1 |
| 30***94 | Counterweight Group | 1 |
262-2623 Counterweight Gp
| 11***65 | Liner | 1 |
| 16***02 | Liner | 1 |
| 16***03 | Liner | 1 |
307-7694 Counterweight Gp
| 11***65 | Liner | 1 |
| 16***02 | Liner | 1 |
| 16***03 | Liner | 1 |
327-3252 Counterweight Gp
| 11***65 | Liner | 1 |
| 16***02 | Liner | 1 |
| 16***03 | Liner | 1 |
327-3268 Counterweight Gp
| 11***65 | Liner | 1 |
| 16***02 | Liner | 1 |
| 16***03 | Liner | 1 |
298-2979 Door As-Access -Fuel, Hydraulic Tanks
| 17***15 | Bumper | 1 |
| 17***39 | Liner | 1 |
| 24***78 | Liner | 2 |
330-1427 Door Gp-Access -Fuel, Hydraulic Tanks
| 17***15 | Bumper | 1 |
| 17***39 | Liner | 1 |
| 24***78 | Liner | 3 |
330-1426 Door As-Access -Fuel, Hydraulic Tanks
| 33***26 | Cover As-Access; -Fuel, Hydraulic Tanks | 1 |
| 33***27 | Cover As-Access; (Fuel, Hydraulic Tanks)(Hydraulic Tank, Side) | 1 |
268-0749 Cover As-Sound Suppression
| 24***30 | Insulation | 1 |
| 26***49 | Cover As-Sound Suppression | 1 |
| 27***47 | Insulation | 1 |
278-3778 Cover Gp-Hood -Precleaner
| 26***49 | Cover As-Sound Suppression | 1 |
| 27***74 | Support As | 1 |
| 27***78 | Cover Group-Hood; -Precleaner | 1 |
298-2977 Door Gp-Access -Fuel Tank
| 16***76 | Hinge | 2 |
| 20***89 | Cushion | 1 |
| 23***47 | Insulation | 1 |
289-6915 Door Gp-Access -Radiator
| 09***18 | Nut (M6x1.0 Thd) | 4 |
| 12***01 | Rubber | 1 |
| 16***76 | Hinge | 2 |
289-6913 Door Gp-Access -Pump
| 09***18 | Nut (M6x1.0 Thd) | 4 |
| 16***76 | Hinge | 2 |
| 18***62 | Cover | 1 |
289-6917 Door Gp-Access -Radiator
| 09***18 | Nut (M6x1.0 Thd) | 4 |
| 12***01 | Rubber | 1 |
| 16***76 | Hinge | 2 |
289-6910 Door Gp-Access -Radiator
| 28***10 | Door Group-Access; -Radiator | 1 |
| 28***17 | Door Group-Access; -Radiator, Injector Fuel Supply Tube | 1 |
223-3042 Fender & Cover Gp
| 13***73 | Bolt As; (M12x1.75x25-mm) | 2 |
| 22***42 | Fender & Cover Group; -With Step | 1 |
| 23***02 | Spacer; (15x35x11-mm Thk) | 2 |
330-1166 Fender & Cover Gp
| 27***18 | Liner | 1 |
| 33***66 | Fender & Cover Group | 1 |
| 33***67 | Cover As | 1 |
273-6716 Frame Gp-Upper
| 09***83 | Shim (1.0 mm Thick) | 4 |
| 09***15 | Shim (2.0 mm Thick) | 2 |
| 09***49 | Washer; (22x60x6-mm Thk) | 3 |
227-6147 Gear & Bearing Gp-Swing
| 09***02 | Pin, Dowel | 1 |
| 14***89 | Tube As | 1 |
| 14***03 | Cover | 1 |
227-6081 Gear & Bearing Gp-Swing
| 14***85 | Seal (1100 cm) (Order By The Centimeter) | 0 |
| 22***71 | Seal; (Dust) | 1 |
| 22***81 | Gear & Bearing Group-Swing | 1 |
298-4099 Guard Ar -Heavy-Duty
| 13***75 | Guard Group-Swivel | 1 |
| 16***78 | Guard Group-Travel Motor; -Heavy-Duty | 1 |
| 28***25 | Guard Group-Bottom; -Heavy-Duty | 1 |
289-6425 Guard Gp-Bottom -Heavy-Duty
| 09***57 | Hinge As | 1 |
| 13***76 | Bolt As-Locking; (M12x1.75x30-mm) | 4 |
| 16***54 | Plate As | 1 |
289-6424 Guard Gp-Bottom
| 13***76 | Bolt As-Locking; (M12x1.75x30-mm) | 36 |
| 16***23 | Sheet | 1 |
| 24***92 | Sheet | 1 |
134-8850 Guard Gp-Swivel
| 13***76 | Plate | 4 |
| 13***50 | Guard Group-Swivel; (Swivel) | 1 |
| 13***51 | Plate As | 1 |
134-8875 Guard Gp-Swivel
| 13***75 | Guard Group-Swivel | 1 |
| 13***76 | Plate As | 1 |
| 13***78 | Plate As | 1 |
142-3835 Handrail Gp
| 13***78 | Bolt As; (M12x1.75x40-mm) | 3 |
| 14***35 | Handrail Group; -Chassis | 1 |
| 17***77 | Handrail As | 1 |
273-7726 Hood & Guard Gp
| 05***88 | Washer; (13.5x30x3-mm Thk) | 2 |
| 08***08 | Shim (1.0mm Thick) | 4 |
| 08***09 | Shim (2.0mm Thick) | 4 |
303-9859 Hood Gp -Accugrade Ready
| 30***59 | Hood Group; -Accugrade Ready | 1 |
| 30***14 | Hood Group-Engine | 1 |
| 30***18 | Support As | 1 |
304-0014 Hood Gp-Engine
| 09***29 | Cushion | 2 |
| 10***48 | Seal; (0.5-M Each) | 0 |
| 18***80 | Seal; (8.8-cm) | 0 |
262-2286 Hood Gp-Engine
| 09***29 | Cushion | 2 |
| 10***48 | Seal; (0.5-M Each) | 0 |
| 11***89 | Hinge | 2 |
289-6572 Sheet As-Sound Suppression
| 28***05 | Liner | 1 |
| 28***77 | Liner | 1 |
| 28***72 | Sheet As-Sound Suppression | 1 |
313-7881 Sheet As-Sound Suppression
| 26***13 | Liner | 1 |
| 27***37 | Liner | 1 |
| 31***81 | Sheet As-Sound Suppression | 1 |
289-6695 Sheet As-Sound Suppression
| 24***84 | Liner | 1 |
| 26***47 | Liner | 1 |
| 28***95 | Sheet As-Sound Suppression | 1 |
278-3842 Sheet As-Sound Suppression
| 19***98 | Liner | 1 |
| 20***63 | Liner | 1 |
| 27***42 | Sheet As-Sound Suppression | 1 |
289-6699 Sheet As-Sound Suppression
| 26***09 | Liner | 1 |
| 28***99 | Sheet As-Sound Suppression | 1 |
| 28***00 | Liner | 1 |
278-3836 Sheet As-Sound Suppression
| 26***13 | Liner | 1 |
| 27***36 | Sheet As-Sound Suppression | 1 |
| 27***37 | Liner | 1 |
235-7764 Step Gp
| 23***64 | Step Group | 1 |
| 23***65 | Step | 2 |
| 8T***38 | Bolt-Pipe As To Main Pump Suction Port | 4 |
273-7727 Storage Gp-Vandalism Guard -Vandalism Guard
| 13***73 | Bolt As; (M12x1.75x25-mm) | 4 |
| 17***15 | Bumper | 4 |
| 18***80 | Seal; (8.8-cm) | 0 |
307-7662 Support As-Enclosure
| 24***77 | Liner | 1 |
| 24***78 | Liner | 1 |
| 24***88 | Liner | 1 |
304-0093 Support As-Enclosure
| 24***77 | Liner | 1 |
| 24***78 | Liner | 1 |
| 30***93 | Support As-Enclosure | 1 |
248-8940 Support As-Enclosure
| 24***40 | Support As-Enclosure | 1 |
| 24***43 | Liner | 1 |
| 24***44 | Liner | 1 |
Fuel System
164-4858 Cap Gp-Fuel Filler -Extreme Service, Lockable
| 16***58 | Cap Group-Fuel Filler; -Extreme Service, Lockable | 1 |
| 19***75 | Cover As-Filter; (Fuel Cap) | 1 |
| 9X***00 | Seal-O-Ring | 1 |
305-4745 Filter Gp-Fuel
| 06***39 | Seal-O-Ring | 1 |
| 09***25 | Plug | 2 |
| 09***38 | Washer; (7.8x13.5x2-mm Thk) | 1 |
174-9570 Filter Gp-Water Sep & Fuel
| 17***70 | Filter Group-Water Sep & Fuel; -Primary | 1 |
| 22***78 | Seal-Ring; (Fuel And Water Sep Filter) | 1 |
| 32***44 | Filter As-Water Sep & Fuel; (Primary) | 1 |
310-9607 Injector Gp-Fuel
| 1R***73 | Gasket | 6 |
| 29***96 | Washer-Special | 6 |
| 29***00 | Support | 6 |
273-7735 Lines Gp-Fuel
| 00***64 | End; (Hose) | 2 |
| 09***86 | Clamp; (Hose) | 9 |
| 13***13 | Band; (Marker) (Gray, P) | 2 |
296-4656 Lines Gp-Fuel
| 09***39 | Washer-Special | 12 |
| 09***03 | Bolt; (M8x1.25x75.5-mm) | 6 |
| 09***37 | Gasket | 8 |
297-7671 Mounting Gp-Fuel Filter
| 11***18 | Clip | 1 |
| 13***89 | Clip; (Ladder) | 1 |
| 13***75 | Bolt As-Locking; (M12x1.75x30-mm)(M12x1.75x30-mm)) | 4 |
305-4678 Mounting Gp-Pump -Fuel Injection
| 09***99 | Bolt; (M8x1.25x30.5-mm) | 1 |
| 29***21 | Bolt; (M8x1.25x35.5-mm) | 3 |
| 29***34 | Nut | 1 |
229-1859 Pump & Motor Gp-Refueling
| 11***28 | Seal | 1 |
| 12***38 | Housing; (Receptacle) | 1 |
| 12***39 | Terminal; (Male) | 2 |
264-8770 Pump Ar-Fuel Transfer
| 22***85 | Pump Group-Refueling | 1 |
| 23***70 | Wiring Group-Refueling Pump; -Refueling | 1 |
| 26***70 | Pump Ar-Fuel Transfer | 1 |
326-4635 Pump Gp-Fuel
| 11***85 | Seal-O-Ring; (13.94mm Id) | 1 |
| 23***20 | Sensor Group-Speed; (Secondary, Timing) | 1 |
| 24***19 | Seal; (Fuel System) | 2 |
229-1785 Pump Gp-Refueling
| 12***14 | Film-Instruction; (Refueling Pump) | 1 |
| 13***72 | Bolt As; (M12x1.75x20-mm) | 2 |
| 13***73 | Bolt As; (M12x1.75x25-mm) | 4 |
262-9372 Strainer Gp-Fuel -Float Gauge
| 26***72 | Strainer Group-Fuel; -Float Gauge | 1 |
| 27***70 | Kit-Gauge; (Fuel Strainer) | 1 |
278-3900 Tank & Mtg Gp-Fuel
| 08***10 | Spacer; (16.6x32x26-mm Thk) | 4 |
| 24***41 | Padlock Group; (1 On Fuel Tank Cap) (1 On Hydraulic Tank Cap) (1 On Grill Latch) | 1 |
| 27***00 | Tank & Mtg Group-Fuel | 1 |
278-3896 Tank & Mtg Gp-Fuel
| 08***10 | Spacer; (16.6x32x26-mm Thk) | 4 |
| 24***41 | Padlock Group; (1 On Fuel Tank Cap) (1 On Hydraulic Tank Cap) (1 On Grill Latch) | 1 |
| 27***96 | Tank & Mtg Group-Fuel | 1 |
327-3191 Tank & Mtg Gp-Fuel
| 08***10 | Spacer; (16.6x32x26-mm Thk) | 4 |
| 24***41 | Padlock Group; (1 On Fuel Tank Cap) (1 On Hydraulic Tank Cap) (1 On Grill Latch) | 1 |
| 32***91 | Tank & Mtg Group-Fuel | 1 |
278-3899 Tank Gp-Fuel
| 00***64 | End; (Hose) | 1 |
| 09***36 | Screw; (Machine) (M5x0.8x10mm) | 5 |
| 10***02 | Kit-Receptacle; (2-Pin)(Engine Sensor Wiring Harness) | 1 |
327-3192 Tank Gp-Fuel
| 32***92 | Tank Group-Fuel | 1 |
| 32***96 | Tank Group-Fuel | 1 |
278-3898 Tank Gp-Fuel
| 00***64 | End; (Hose) | 1 |
| 09***36 | Screw; (Machine) (M5x0.8x10mm) | 5 |
| 10***02 | Kit-Receptacle; (2-Pin)(Engine Sensor Wiring Harness) | 1 |
278-3901 Tank Gp-Fuel
| 27***01 | Tank Group-Fuel | 1 |
| 27***02 | Tank Group-Fuel | 1 |
| 27***03 | Tank Group-Fuel | 1 |
278-3903 Tank Gp-Fuel
| 00***64 | End; (Hose) | 1 |
| 09***36 | Screw; (Machine) (M5x0.8x10mm) | 5 |
| 10***02 | Kit-Receptacle; (2-Pin)(Engine Sensor Wiring Harness) | 1 |
327-3196 Tank Gp-Fuel
| 00***64 | End; (Hose) | 1 |
| 09***36 | Screw; (Machine) (M5x0.8x10mm) | 5 |
| 10***02 | Kit-Receptacle; (2-Pin)(Engine Sensor Wiring Harness) | 1 |
278-3902 Tank Gp-Fuel
| 00***64 | End; (Hose) | 1 |
| 09***36 | Screw; (Machine) (M5x0.8x10mm) | 5 |
| 10***02 | Kit-Receptacle; (2-Pin)(Engine Sensor Wiring Harness) | 1 |
278-3897 Tank Gp-Fuel
| 27***97 | Tank Group-Fuel | 1 |
| 27***98 | Tank Group-Fuel | 1 |
| 27***99 | Tank Group-Fuel | 1 |
298-3147 Valve Gp-Fuel Shutoff
| 26***92 | Nut; (M5x0.8-Thd) | 1 |
| 29***47 | Valve Group-Fuel Shutoff | 1 |
| 29***57 | Stop | 1 |
Hydraulic System
145-5106 Accumulator Gp-Hydraulic -Charged
| 14***06 | Accumulator Group-Hydraulic; -Charged | 1 |
| 15***00 | Film-Warning; (High Pressure Cylinder) | 1 |
5i-8416 Accumulator Gp-Hydraulic -Charged
| 08***54 | Accumulator Group-Hydraulic; -Charged-Pilot Oil | 1 |
| 4I***67 | Cap | 1 |
| 5I***16 | Accumulator Group-Hydraulic; -Charged-Pilot Oil | 1 |
087-4456 Accumulator Gp-Hydraulic -Charged
| 08***56 | Accumulator Group-Hydraulic; -Charged-Pilot Oil | 1 |
| 14***06 | Accumulator Group-Hydraulic; -Charged | 1 |
| 4I***36 | Accumulator Group-Hydraulic; -Charged-Pilot Oil | 1 |
164-6981 Accumulator Gp-Hydraulic -Charged
| 08***56 | Accumulator Group-Hydraulic; -Charged-Pilot Oil | 1 |
| 16***81 | Accumulator Group-Hydraulic; -Charged | 1 |
| 3K***60 | Seal Pilot Manifold On; Seal To Boom Check Valve Drain | 1 |
199-7447 Accumulator Gp-Hydraulic -Uncharged
| 19***47 | Accumulator Group-Hydraulic; -Uncharged-Pilot Oil | 1 |
| 4I***39 | Core | 1 |
| 4I***62 | Cap | 1 |
4i-1536 Accumulator Gp-Hydraulic -Charged
| 4I***36 | Accumulator Group-Hydraulic; -Charged-Pilot Oil | 1 |
| 4I***39 | Core | 1 |
| 4I***62 | Cap | 1 |
087-4454 Accumulator Gp-Hydraulic -Charged
| 08***54 | Accumulator Group-Hydraulic; -Charged-Pilot Oil | 1 |
| 08***75 | Core | 1 |
| 08***76 | Cap | 1 |
173-3503 Base Gp-Oil Filter -Hydraulic
| 13***26 | Bolt; (Shoulder) (M6x1x28.75mm) | 1 |
| 13***28 | Shim; (0.1-mm Thk) | 1 |
| 13***31 | Packing | 1 |
259-7494 Control Ar-Auxiliary -System 3, 1-Way, 2-Pump
| 23***93 | Control Group-Hydraulic Pedal; -Work Tool | 1 |
| 24***23 | Film Group; -Operator Controls, Notice | 1 |
| 25***36 | Fastener Group-Wiring Harness | 1 |
270-6106 Control Ar-Auxiliary -Left Foot Switch
| 24***65 | Film Group; -Hammer Control, Foot Switch | 1 |
| 25***94 | Fastener Group-Wiring Harness; -Foot Switch | 1 |
| 27***06 | Control Ar-Auxiliary; -Left Foot Switch | 1 |
297-0292 Control Ar-Auxiliary -System 3, 1-Way, 2-Pump
| 25***96 | Control Ar-Auxiliary; -System 3, 1-Way, 2-Pump | 1 |
| 26***84 | Lines Group-Pilot; -Pilot Oil Pressure | 1 |
| 27***06 | Control Ar-Auxiliary; -Left Foot Switch | 1 |
259-7492 Control Ar-Auxiliary
| 23***93 | Control Group-Hydraulic Pedal; -Work Tool | 1 |
| 24***23 | Film Group; -Operator Controls, Notice | 1 |
| 25***36 | Fastener Group-Wiring Harness | 1 |
259-7496 Control Ar-Auxiliary -System 3, 1-Way, 2-Pump
| 25***13 | Valve & Mtg Group-Control; -Auxiliary | 1 |
| 25***96 | Control Ar-Auxiliary; -System 3, 1-Way, 2-Pump | 1 |
| 26***76 | Lines Group-Pilot; -1-Way Flow | 1 |
259-7493 Control Ar-Auxiliary -System 2, Combined Function
| 23***95 | Control Group-Hydraulic Pedal; (Hydraulic Pedal) | 1 |
| 24***24 | Film Group; -Operator Controls, Notice | 1 |
| 25***29 | Wiring Group-Cab; -1-Way/2-Way Flow | 1 |
259-7495 Control Ar-Auxiliary
| 23***95 | Control Group-Hydraulic Pedal; (Hydraulic Pedal) | 1 |
| 24***23 | Film Group; -Operator Controls, Notice | 1 |
| 25***29 | Wiring Group-Cab; -1-Way/2-Way Flow | 1 |
288-7608 Control Ar-Coupler
| 23***85 | Switch Group-Toggle; -Quick Coupler Lock | 1 |
| 25***44 | Wiring Group-Quick Coupler | 1 |
| 28***05 | Film Group; -Quick Coupler | 1 |
277-0863 Control Ar-Coupler
| 26***42 | Wiring Group-Cab; -Quick Coupler | 1 |
| 26***02 | Wiring Group-Quick Coupler | 1 |
| 26***16 | Film Group; -Quick Coupler | 1 |
279-7871 Coupling Gp-Flexible
| 27***71 | Coupling Group-Flexible | 1 |
| 30***50 | Hub | 1 |
| 30***51 | Insert-Coupling | 4 |
279-7870 Coupling Gp-Pump
| 27***70 | Coupling Group-Pump | 1 |
| 27***71 | Coupling Group-Flexible | 1 |
| 28***47 | Bolt-Socket Head; (M18x2.5x600-mm) | 4 |
242-6736 Cylinder & Lines Gp-Boom -Rh
| 24***31 | Cylinder & Seal Group-Boom | 1 |
| 24***36 | Cylinder & Lines Group-Boom; -Rh | 1 |
| 24***37 | Lines Group-Boom Cylinder; -Rh | 1 |
242-6730 Cylinder & Lines Gp-Boom -Lh
| 24***30 | Cylinder & Lines Group-Boom; -Lh | 1 |
| 24***31 | Cylinder & Seal Group-Boom | 1 |
| 24***32 | Lines Group-Boom Cylinder; -Lh | 1 |
225-4590 Cylinder & Lines Gp-Bucket
| 22***90 | Cylinder & Lines Group-Bucket | 1 |
| 22***91 | Cylinder & Seal Group-Bucket | 1 |
| 22***92 | Lines Group-Bucket Cylinder | 1 |
242-6755 Cylinder & Lines Gp-Bucket
| 24***55 | Cylinder & Lines Group-Bucket | 1 |
| 24***56 | Cylinder & Seal Group-Bucket | 1 |
| 24***57 | Lines Group-Bucket Cylinder | 1 |
242-6743 Cylinder & Lines Gp-Stick
| 24***35 | Lines Group-Stick Cylinder | 1 |
| 24***43 | Cylinder & Lines Group-Stick | 1 |
| 24***44 | Cylinder & Seal Group-Stick | 1 |
242-6733 Cylinder & Lines Gp-Stick
| 24***33 | Cylinder & Lines Group-Stick | 1 |
| 24***34 | Cylinder & Seal Group-Stick | 1 |
| 24***35 | Lines Group-Stick Cylinder | 1 |
242-6750 Cylinder & Lines Gp-Stick
| 24***35 | Lines Group-Stick Cylinder | 1 |
| 24***50 | Cylinder & Lines Group-Stick | 1 |
| 24***51 | Cylinder & Seal Group-Stick | 1 |
242-6731 Cylinder & Seal Gp-Boom
| 08***55 | Ring | 2 |
| 09***47 | Ring; (Retaining) | 1 |
| 09***17 | Seal-O-Ring (Id=114.40mm) | 1 |
225-4591 Cylinder & Seal Gp-Bucket
| 09***20 | Seal-O-Ring | 1 |
| 09***30 | Bearing-Sleeve | 1 |
| 09***10 | Setscrew-Socket; (M14x2x14-mm) | 1 |
242-6756 Cylinder & Seal Gp-Bucket
| 08***55 | Ring | 2 |
| 09***47 | Ring; (Retaining) | 1 |
| 09***17 | Seal-O-Ring (Id=114.40mm) | 1 |
242-6751 Cylinder & Seal Gp-Stick
| 08***04 | Ring; (Retaining) | 2 |
| 08***05 | Ring; (Retaining) | 1 |
| 09***31 | Ring; (Retaining) | 1 |
242-6734 Cylinder & Seal Gp-Stick
| 08***04 | Ring; (Retaining) | 2 |
| 08***05 | Ring; (Retaining) | 1 |
| 09***31 | Ring; (Retaining) | 1 |
242-6744 Cylinder & Seal Gp-Stick
| 08***04 | Ring; (Retaining) | 2 |
| 08***05 | Ring; (Retaining) | 1 |
| 09***31 | Ring; (Retaining) | 1 |
172-8402 Cylinder Gp-Coupler
| 10***40 | Seal-O-Ring; (12.1-mm Id) | 1 |
| 17***02 | Cylinder Group-Coupler | 1 |
| 17***06 | Valve Group-Check; (Hydraulic Cylinder, Quick Coupler) | 1 |
148-4644 Drive Gp-Swing -Without Motor
| 09***29 | Ring; (Retaining) | 2 |
| 09***84 | Washer; (40.3x72x1-mm Thk) | 6 |
| 09***11 | Washer; (47.3x76x1-mm Thk) | 6 |
148-4679 Drive Gp-Swing -With Motor
| 11***98 | Gauge-Oil Level; (Swing Drive) | 1 |
| 11***99 | Pipe; (Gauge) | 1 |
| 14***44 | Drive Group-Swing; -Without Motor | 1 |
227-6166 Fastener Gp-Swing & Final Dr
| 09***55 | Pin | 1 |
| 1U***46 | Sealant (For Locations A) | 1 |
| 22***66 | Fastener Group-Swing & Final Dr | 1 |
158-8987 Filter & Valve Gp-Pilot -Hydraulic Oil
| 09***84 | Seal-O-Ring (Id=15.80mm) | 1 |
| 09***90 | Seal-O-Ring (Id=21.80mm) | 1 |
| 09***96 | Seal-O-Ring (Id=28.70mm) | 1 |
247-7459 Filter Ar-Hydraulic
| 23***26 | Lines Group-Return & Filter; -Hammer | 1 |
| 24***59 | Filter Ar-Hydraulic; -Hammer | 1 |
| 25***46 | Wiring Group-Hydraulic Control; -Return Filter | 1 |
188-4142 Filter Gp-Oil -Hydraulic Return
| 09***81 | Seal-O-Ring | 1 |
| 13***23 | Seal-O-Ring | 4 |
| 13***24 | Screw; (M3x0.5x5-mm) | 8 |
224-1687 Filter Gp-Oil -Hydraulic
| 09***82 | Seal-O-Ring (Id=13.80mm) | 1 |
| 09***17 | Seal-O-Ring (Id=114.40mm) | 1 |
| 09***73 | Plug, Shipping | 1 |
289-8194 Filter Gp-Oil -Hydraulic, Case Drain
| 09***21 | Filter-Oil; (Advanced Efficiency)(Hydraulic, Case Drain) | 1 |
| 28***94 | Filter Group-Oil; -Hydraulic, Case Drain | 1 |
| 28***95 | Head As-Filter | 1 |
188-4140 Filter Gp-Oil -Hydraulic Return
| 12***03 | Seal-O-Ring (Id=185mm) | 2 |
| 12***34 | Valve As-Bypass | 1 |
| 15***84 | Seal-O-Ring | 1 |
214-4511 Fitting Gp-Hydraulic -4-Bolt Flange
| 21***00 | Flange As | 1 |
| 21***11 | Fitting Group-Hydraulic; -4-Bolt Flange | 1 |
| 21***18 | Flange As | 1 |
227-0620 Gauge Gp-Sight -Hydraulic Oil Level
| 09***19 | Seal-O-Ring (Id=15.80mm) | 4 |
| 22***20 | Gauge Group-Sight; -Hydraulic Oil Level | 1 |
| 23***57 | Pipe | 1 |
256-0093 Head Gp-Pump -Drive
| 09***75 | Pin, Roller | 1 |
| 09***81 | Plate, Slide | 1 |
| 09***82 | Plug, Tapered | 13 |
256-0096 Head Gp-Pump -Driven
| 09***75 | Pin, Roller | 1 |
| 09***81 | Plate, Slide | 1 |
| 09***82 | Plug, Tapered | 9 |
236-3215 Hose Gp-Hydraulic -Front
| 13***56 | Tube As | 1 |
| 18***54 | Hose As | 1 |
| 23***15 | Hose Group-Hydraulic; -Front | 1 |
194-0174 Hose Gp-Hydraulic -Control Valve, Stick
| 16***60 | Hose Group-Hydraulic; (Control Valve, Stick) | 1 |
| 19***74 | Hose Group-Hydraulic; -Control Valve, Stick | 1 |
| 19***76 | Hose Group-Hydraulic; -Control Valve, Stick | 1 |
236-3213 Hose Gp-Hydraulic -Front
| 20***67 | Hose As | 1 |
| 23***13 | Hose Group-Hydraulic; -Front | 1 |
| 23***15 | Hose Group-Hydraulic; -Front | 1 |
194-0181 Hose Gp-Hydraulic -Front
| 16***62 | Hose As | 1 |
| 19***81 | Hose Group-Hydraulic; -Control Valve, Boom | 1 |
| 4J***20 | Seal (For Tilt Ports On Valve) | 1 |
194-0176 Hose Gp-Hydraulic -Front
| 14***65 | Tube As | 1 |
| 16***65 | Hose As | 1 |
| 19***76 | Hose Group-Hydraulic; -Control Valve, Stick | 1 |
260-7910 Hose Gp-Hydraulic -Front
| 26***10 | Hose Group-Hydraulic; -Front | 1 |
| 26***11 | Hose Group-Hydraulic; -Front | 1 |
| 26***13 | Hose Group-Hydraulic; -Front | 1 |
236-3212 Hose Gp-Hydraulic -Front
| 20***66 | Hose As | 1 |
| 23***12 | Hose Group-Hydraulic; -Front | 1 |
| 23***14 | Hose Group-Hydraulic; -Front | 1 |
260-7913 Hose Gp-Hydraulic -Front
| 14***64 | Tube As | 1 |
| 1P***03 | Seal - Rectangular (31.86mm Id) | 1 |
| 26***13 | Hose Group-Hydraulic; -Front | 1 |
194-0182 Hose Gp-Hydraulic -Front
| 11***79 | Flange-Special | 1 |
| 16***73 | Hose As | 1 |
| 16***23 | Tube As | 1 |
194-0180 Hose Gp-Hydraulic -Control Valve, Boom
| 19***80 | Hose Group-Hydraulic; -Control Valve, Boom | 1 |
| 19***81 | Hose Group-Hydraulic; -Control Valve, Boom | 1 |
| 19***82 | Hose Group-Hydraulic; -Control Valve, Boom | 1 |
236-3214 Hose Gp-Hydraulic -Front
| 18***54 | Hose As | 1 |
| 23***14 | Hose Group-Hydraulic; -Front | 1 |
| 6V***46 | Seal-O-Ring | 1 |
260-7911 Hose Gp-Hydraulic -Front
| 1P***77 | Flange-Half (For Tilt Ports On Valve) | 2 |
| 26***11 | Hose Group-Hydraulic; -Front | 1 |
| 26***12 | Hose As | 1 |
285-1355 Hydraulic Ar
| 23***99 | Lines Group-Boom Cylinder | 1 |
| 23***10 | Tank & Mtg Group-Hydraulic | 1 |
| 23***14 | Lines Group-Front | 1 |
285-1354 Hydraulic Ar
| 23***99 | Lines Group-Boom Cylinder | 1 |
| 23***10 | Tank & Mtg Group-Hydraulic | 1 |
| 23***14 | Lines Group-Front | 1 |
242-6483 Lines Gp-Auxiliary Hydraulic -High Flow
| 10***50 | Hose As | 1 |
| 17***16 | Clamp-Half | 6 |
| 1P***03 | Seal - Rectangular (31.86mm Id) | 3 |
242-6479 Lines Gp-Auxiliary Hydraulic -Mass Boom, High Pressure
| 12***07 | Grommet | 1 |
| 12***08 | Clip | 2 |
| 12***74 | Grommet | 1 |
242-6492 Lines Gp-Auxiliary Hydraulic
| 14***38 | Clip | 4 |
| 18***77 | Plate | 2 |
| 18***78 | Support As | 1 |
242-6487 Lines Gp-Auxiliary Hydraulic -High Pressure
| 17***16 | Clamp-Half | 4 |
| 1P***03 | Seal - Rectangular (31.86mm Id) | 3 |
| 1P***04 | Seal - Rectangular (45mm Dia) | 3 |
242-6476 Lines Gp-Auxiliary Hydraulic -Boom, Medium Pressure
| 09***91 | Clamp, Single | 2 |
| 15***67 | Clip; (Slot) | 2 |
| 17***95 | Clip | 4 |
242-6484 Lines Gp-Auxiliary Hydraulic -Medium Flow
| 14***38 | Clip | 12 |
| 17***06 | Hose As | 2 |
| 18***77 | Plate | 2 |
242-6480 Lines Gp-Auxiliary Hydraulic -Mass Boom, Medium Pressure
| 09***91 | Clamp, Single | 2 |
| 15***67 | Clip; (Slot) | 2 |
| 17***95 | Clip | 4 |
242-6475 Lines Gp-Auxiliary Hydraulic -Boom, High Pressure
| 12***07 | Grommet | 1 |
| 12***08 | Clip | 2 |
| 12***74 | Grommet | 1 |
237-3184 Lines Gp-Auxiliary Hydraulic -High Flow
| 12***80 | Tube As | 1 |
| 14***82 | Tube As | 1 |
| 17***16 | Clamp-Half | 4 |
242-6488 Lines Gp-Auxiliary Hydraulic -Medium Flow
| 14***38 | Clip | 8 |
| 17***72 | Hose As | 2 |
| 18***77 | Plate | 2 |
260-8010 Lines Gp-Boom
| 1P***03 | Seal - Rectangular (31.86mm Id) | 2 |
| 20***55 | Tube As | 1 |
| 20***56 | Bracket, Tube As | 1 |
239-1732 Lines Gp-Boom
| 15***46 | Hose As | 1 |
| 18***53 | Tube As | 2 |
| 18***54 | Tube As | 1 |
242-6732 Lines Gp-Boom Cylinder -Lh
| 09***20 | Holder | 2 |
| 09***97 | Seal-O-Ring (Id=29.70mm) | 2 |
| 13***09 | Support As | 1 |
239-1699 Lines Gp-Boom Cylinder
| 10***98 | Name-Plate (Type Of Machine:Ex1100), Bolt-Socket Head; (M10x1.5x40-mm) | 4 |
| 10***04 | Bolt; (Socket Head) (M10x1.5x30mm) | 4 |
| 10***54 | Hose As (Nom 08, L=650mm) | 1 |
242-6737 Lines Gp-Boom Cylinder -Rh
| 09***20 | Holder | 2 |
| 09***97 | Seal-O-Ring (Id=29.70mm) | 2 |
| 13***09 | Support As | 1 |
187-5693 Lines Gp-Bucket Cylinder
| 18***93 | Lines Group-Bucket Cylinder | 1 |
| 1P***02 | Seal-Rectangular 28.83mm(1.136in) Id | 2 |
| 1P***03 | Seal - Rectangular (31.86mm Id) | 1 |
187-5976 Lines Gp-Bucket Cylinder
| 10***20 | Elbow As. | 1 |
| 10***79 | Hose As. | 2 |
| 10***91 | Elbow As. | 1 |
260-8011 Lines Gp-Bucket Cylinder
| 18***58 | Hose As | 2 |
| 1P***02 | Seal-Rectangular 28.83mm(1.136in) Id | 2 |
| 1P***03 | Seal - Rectangular (31.86mm Id) | 1 |
225-4592 Lines Gp-Bucket Cylinder
| 09***97 | Seal-O-Ring (Id=29.70mm) | 1 |
| 09***80 | Holder | 1 |
| 22***92 | Lines Group-Bucket Cylinder | 1 |
242-6757 Lines Gp-Bucket Cylinder
| 09***97 | Seal-O-Ring (Id=29.70mm) | 1 |
| 09***12 | Support As | 1 |
| 09***80 | Holder | 1 |
248-9633 Lines Gp-Bucket Cylinder
| 18***58 | Hose As | 2 |
| 1P***02 | Seal-Rectangular 28.83mm(1.136in) Id | 2 |
| 1P***03 | Seal - Rectangular (31.86mm Id) | 1 |
242-6490 Lines Gp-Coupler
| 14***15 | Reducer Group | 1 |
| 14***19 | Reducer As | 1 |
| 24***90 | Lines Group-Coupler; -Stick | 1 |
242-6478 Lines Gp-Coupler -Reach Boom
| 13***80 | Clip | 2 |
| 15***39 | Plate | 1 |
| 24***78 | Lines Group-Coupler; -Reach Boom | 1 |
242-6482 Lines Gp-Coupler -Mass Boom
| 13***80 | Clip | 2 |
| 15***39 | Plate | 1 |
| 24***82 | Lines Group-Coupler; -Mass Boom | 1 |
242-6486 Lines Gp-Coupler -Reach
| 13***80 | Clip | 2 |
| 14***15 | Reducer Group | 1 |
| 14***19 | Reducer As | 1 |
262-3496 Lines Gp-Coupler -B1-Family Linkage
| 23***23 | Coupler Group-Quick; -B1-Linkage | 1 |
| 26***96 | Lines Group-Coupler; -B1-Family Linkage | 1 |
| 31***84 | Hose As | 1 |
242-6494 Lines Gp-Coupler
| 14***15 | Reducer Group | 1 |
| 14***19 | Reducer As | 1 |
| 21***66 | Hose As | 2 |
260-8009 Lines Gp-Front -System 11, Combined Fn, Med Pr
| 15***67 | Clip; (Slot) | 2 |
| 26***09 | Lines Group-Front; -System 11, Combined Fn, Med Pr | 1 |
| 28***86 | Support As | 1 |
260-8006 Lines Gp-Front -Auxiliary
| 09***32 | Seal-O-Ring (Id=28.24mm) | 2 |
| 10***97 | Bolt-Socket Head; (M12x1.75x50-mm) | 4 |
| 10***02 | Bolt-Socket Head; (M12x1.75x30-mm) | 4 |
260-8008 Lines Gp-Front -System 2, Combined Function
| 09***32 | Seal-O-Ring (Id=28.24mm) | 2 |
| 10***97 | Bolt-Socket Head; (M12x1.75x50-mm) | 4 |
| 10***01 | Bolt-Socket Head; (M10x1.5x20-mm) | 8 |
260-8007 Lines Gp-Front -System 3, 1-Way, 2-Pump
| 09***32 | Seal-O-Ring (Id=28.24mm) | 2 |
| 10***97 | Bolt-Socket Head; (M12x1.75x50-mm) | 4 |
| 10***01 | Bolt-Socket Head; (M10x1.5x20-mm) | 4 |
289-5416 Lines Gp-Front -Quick Coupler
| 12***50 | Valve-Check; (Quick Coupler Solenoid) | 1 |
| 14***36 | Adapter; (Straight) (-6 Orb X -6 Orfs) | 1 |
| 14***68 | Elbow Group | 1 |
239-1714 Lines Gp-Front
| 10***97 | Bolt-Socket Head; (M12x1.75x50-mm) | 4 |
| 10***03 | Bolt; (Socket Head) (M10x1.5x80mm) | 2 |
| 10***04 | Bolt; (Socket Head) (M10x1.5x30mm) | 42 |
275-1409 Lines Gp-Front -Quick Coupler
| 10***02 | Bolt-Socket Head; (M12x1.75x30-mm) | 4 |
| 11***45 | Guard | 2 |
| 12***50 | Valve-Check; (Quick Coupler Solenoid) | 1 |
248-9846 Lines Gp-Hydraulic Oil Cooler -Control Valve, Pump
| 09***83 | Nut-Self-Locking; (M10x1.50 Thd) | 2 |
| 10***02 | Bolt-Socket Head; (M12x1.75x30-mm) | 4 |
| 14***67 | Clamp; (Hose) | 2 |
248-9848 Lines Gp-Hydraulic Oil Cooler
| 22***65 | Hose | 2 |
| 24***48 | Lines Group-Hydraulic Oil Cooler | 1 |
| 8T***03 | Clamp; (Hose) | 5 |
248-9852 Lines Gp-Pilot -Filter, Pilot Pump
| 12***67 | Pin-Connector; (14-Ga To 16-Ga)(14-Ga Wire) | 1 |
| 14***36 | Adapter; (Straight) (-6 Orb X -6 Orfs) | 2 |
| 14***40 | Adapter; (Straight) (-8 Orb X -8 Orfs) | 1 |
248-9851 Lines Gp-Pilot -Main Control Valve
| 08***11 | Hose As (Nom 06, L=450mm) | 1 |
| 08***31 | Hose As (Nom 06, L=600mm) | 2 |
| 08***34 | Hose As | 1 |
260-7965 Lines Gp-Pilot -Control Valve, Travel Valve
| 08***83 | Hose As (Nom 06, L=2530mm) | 2 |
| 22***83 | Hose As | 2 |
| 26***65 | Lines Group-Pilot; -Control Valve, Travel Valve | 1 |
255-1659 Lines Gp-Pilot -Heavy Lift
| 08***02 | Hose As. | 1 |
| 08***66 | Hose As | 1 |
| 12***03 | Valve Group-Solenoid; -Variable Adjustable Boom | 1 |
255-1802 Lines Gp-Pilot -Pedal Controls
| 08***02 | Hose As. | 2 |
| 08***85 | Hose As (Nom 06, L=350mm) | 1 |
| 10***02 | Kit-Receptacle; (2-Pin)(Engine Sensor Wiring Harness) | 1 |
255-1800 Lines Gp-Pilot -Pedal, Rh
| 08***02 | Hose As. | 1 |
| 10***02 | Kit-Receptacle; (2-Pin)(Engine Sensor Wiring Harness) | 1 |
| 10***31 | Connector-Filter | 1 |
255-1851 Lines Gp-Pilot -Alt Pattern Control, 2-Way
| 08***05 | Hose As | 1 |
| 08***80 | Hose As (Nom 06, L=2550mm) | 1 |
| 09***35 | Spacer; (11x25x20-mm Thk) | 1 |
260-7976 Lines Gp-Pilot -1-Way Flow
| 08***56 | 90 Degrees Elbow | 1 |
| 08***02 | Hose As. | 2 |
| 14***36 | Adapter; (Straight) (-6 Orb X -6 Orfs) | 3 |
255-1843 Lines Gp-Pilot -Third Pedal, Pilot Valve
| 08***02 | Hose As. | 1 |
| 08***62 | Hose As | 1 |
| 08***65 | Hose As (Nom 06, L=570mm) | 2 |
248-9850 Lines Gp-Pilot -Main Control Valve
| 08***03 | Hose As (Nom 06, L=2300mm) | 2 |
| 11***45 | Guard | 2 |
| 14***78 | Elbow, 90°,-6 Orb /-6 Orfs; (90°) (-6 Orbx-6orfs) | 6 |
248-9825 Lines Gp-Pilot -Joystick, Pedals
| 08***02 | Hose As. | 2 |
| 10***02 | Kit-Receptacle; (2-Pin)(Engine Sensor Wiring Harness) | 1 |
| 10***31 | Connector-Filter | 1 |
255-1663 Lines Gp-Pilot -System 11, Combined Fn, Medium Pressure
| 08***56 | 90 Degrees Elbow | 1 |
| 08***02 | Hose As. | 2 |
| 10***02 | Kit-Receptacle; (2-Pin)(Engine Sensor Wiring Harness) | 1 |
260-7986 Lines Gp-Pilot -System 11, Combined Fn, Medium Pressure
| 08***64 | Hose As (Nom 06, L=1550mm) | 1 |
| 08***72 | Hose As (Nom 06, L=1000mm) | 1 |
| 10***02 | Kit-Receptacle; (2-Pin)(Engine Sensor Wiring Harness) | 1 |
260-7971 Lines Gp-Pilot -System 1, 1-Way, 1-Pump
| 10***75 | Hose As | 1 |
| 11***88 | Hose As | 1 |
| 12***08 | Guard | 1 |
260-7984 Lines Gp-Pilot
| 12***08 | Guard | 1 |
| 14***36 | Adapter; (Straight) (-6 Orb X -6 Orfs) | 3 |
| 14***38 | Adapter, -6 Orb / Orfs X-Long | 1 |
260-7972 Lines Gp-Pilot -System 3 Prime, 1-Way, 2-Pump
| 08***66 | Hose As | 1 |
| 10***75 | Hose As | 1 |
| 11***88 | Hose As | 1 |
260-7974 Lines Gp-Pilot -System 2, Combined Function
| 08***64 | Hose As (Nom 06, L=1550mm) | 1 |
| 08***72 | Hose As (Nom 06, L=1000mm) | 1 |
| 10***02 | Kit-Receptacle; (2-Pin)(Engine Sensor Wiring Harness) | 1 |
248-9847 Lines Gp-Pump -Supply, Main Pump
| 15***24 | Hex Head Plug; (-4sae) (D6r Iii) | 1 |
| 24***85 | Tube As | 1 |
| 24***87 | Tube As | 1 |
248-9853 Lines Gp-Return -Hydraulic Tank
| 12***12 | Fitting | 1 |
| 14***27 | Connector Group | 1 |
| 14***47 | Elbow; (-12 Orb/Orfs) | 1 |
239-1726 Lines Gp-Return & Filter -Hammer
| 12***00 | Guard | 1 |
| 14***38 | Elbow | 1 |
| 14***35 | Connect Group; (Each Includes) | 1 |
242-6735 Lines Gp-Stick Cylinder
| 09***00 | Seal-O-Ring (Id=33.70mm) | 1 |
| 09***80 | Holder | 1 |
| 12***19 | Support As | 1 |
239-1716 Lines Gp-Travel Motor
| 10***18 | Grommet | 4 |
| 11***52 | Hose As | 2 |
| 14***64 | Elbow, 90°,-8 Orb /-8 Orfs | 2 |
239-1717 Lines Gp-Travel Motor -Long Undercarriage
| 10***18 | Grommet | 4 |
| 14***64 | Elbow, 90°,-8 Orb /-8 Orfs | 2 |
| 14***72 | Elbow Group | 1 |
239-8998 Manifold Gp-Control -Pilot Oil Supply
| 12***91 | Valve Group-Solenoid; -Hydraulic Activation Control | 3 |
| 19***96 | Valve-Check | 1 |
| 19***99 | Spring | 1 |
239-8697 Manifold Gp-Control -Pilot Oil Supply
| 12***91 | Valve Group-Solenoid; -Hydraulic Activation Control | 3 |
| 19***96 | Valve-Check | 1 |
| 19***99 | Spring | 1 |
215-5037 Manifold Gp-Control -Pilot Oil Supply
| 21***37 | Manifold Group-Control; -Pilot Oil Supply | 1 |
| 23***97 | Manifold Group-Control; -Pilot Oil Supply | 1 |
| 23***98 | Manifold Group-Control; -Pilot Oil Supply | 1 |
158-8985 Motor & Mtg Gp-Swing
| 15***85 | Motor & Mtg Group-Swing | 1 |
| 33***68 | Motor Group-Swing | 1 |
| 6V***00 | Ring; (Retaining) (M35x1.5mm) | 1 |
215-9982 Motor & Mtg Gp-Travel
| 09***07 | Bolt; (M16x2x120-mm) | 3 |
| 20***19 | Valve Group-Travel Counterbalance | 1 |
| 20***92 | Motor Group-Piston; -Travel | 1 |
209-5992 Motor Gp-Piston
| 08***42 | Valve | 1 |
| 08***43 | Stopper | 2 |
| 08***57 | Piston | 2 |
334-9976 Motor Gp-Swing
| 09***00 | Plug | 2 |
| 09***82 | Pin-Spring | 2 |
| 09***95 | Seal-O-Ring (Id=27.70mm) | 2 |
158-8986 Motor Gp-Swing
| 15***86 | Motor Group-Swing | 1 |
| 17***52 | Valve Group-Relief | 2 |
| 19***42 | Motor Group-Swing; -Swing | 1 |
191-5542 Motor Gp-Swing
| 09***00 | Plug | 2 |
| 09***82 | Pin-Spring | 2 |
| 09***95 | Seal-O-Ring (Id=27.70mm) | 2 |
334-9968 Motor Gp-Swing
| 17***52 | Valve Group-Relief | 2 |
| 33***68 | Motor Group-Swing | 1 |
| 33***76 | Motor Group-Swing | 1 |
260-7868 Mounting Gp-Main Control Valve
| 10***66 | Bolt; (Self Locking) (M16x2x40mm) | 8 |
| 19***11 | Washer; (17x40x8-mm Thk) | 4 |
| 26***68 | Mounting Group-Main Control Valve | 1 |
6e-4793 Plug Gp-Control Valve
| 3D***24 | O-Ring - For Oil Drain & Level Plug (Items 3 & 7) | 1 |
| 6E***93 | Plug Group-Control Valve | 1 |
| 6E***15 | Plug | 1 |
6e-4816 Plug Gp-Control Valve
| 10***48 | Plug Group-Control Valve | 1 |
| 6E***46 | Plug Group-Control Valve | 1 |
| 6E***93 | Plug Group-Control Valve | 1 |
106-6248 Plug Gp-Control Valve
| 10***48 | Plug Group-Control Valve | 1 |
| 6E***45 | Seal-O-Ring | 1 |
| 9T***06 | Plug | 1 |
165-9473 Plug Gp-Control Valve -Auxiliary
| 16***73 | Plug Group-Control Valve; -Auxiliary | 1 |
| 16***74 | Plug | 1 |
| 3D***24 | O-Ring - For Oil Drain & Level Plug (Items 3 & 7) | 1 |
6e-2746 Plug Gp-Control Valve
| 6E***45 | Seal-O-Ring | 1 |
| 6E***46 | Plug Group-Control Valve | 1 |
| 9T***06 | Plug | 1 |
279-7869 Pump & Mtg Gp-Main Hydraulic
| 27***55 | Pump Group-Main Hydraulic; -Double | 1 |
| 27***69 | Pump & Mtg Group-Main Hydraulic | 1 |
| 27***70 | Coupling Group-Pump | 1 |
272-6955 Pump Gp-Main Hydraulic -Double
| 09***75 | Pin, Roller | 7 |
| 09***82 | Plug, Tapered | 16 |
| 09***29 | Ring; (Retaining) | 2 |
259-0922 Screen Gp-Hydraulic -Tank
| 09***39 | Spring | 1 |
| 12***84 | Rod | 1 |
| 20***00 | Screen As; (Hydraulic Tank) | 1 |
234-4440 Swivel Gp
| 09***25 | Seal-O-Ring (Id=89.60mm) | 3 |
| 09***16 | Seal-O-Ring (Id=109.40mm) | 1 |
| 15***82 | Seal | 5 |
239-1711 Tank & Filter Gp-Hydraulic
| 09***26 | Lockwasher-Tooth; (M4 Id) | 2 |
| 09***08 | Seal-O-Ring (Id=44.70mm) | 1 |
| 09***30 | Seal-O-Ring (Id=179.30mm) | 1 |
239-1710 Tank & Mtg Gp-Hydraulic
| 08***10 | Spacer; (16.6x32x26-mm Thk) | 6 |
| 23***10 | Tank & Mtg Group-Hydraulic | 1 |
| 23***11 | Tank & Filter Group-Hydraulic | 1 |
240-3881 Valve & Lines Gp-Heavy Lift
| 24***81 | Valve & Lines Group-Heavy Lift | 1 |
| 25***59 | Lines Group-Pilot; -Heavy Lift | 1 |
| 25***37 | Fastener Group-Wiring Harness; -Heavy Lift | 1 |
255-5716 Valve & Mtg Gp-Control -Auxiliary
| 1P***02 | Seal-Rectangular 28.83mm(1.136in) Id | 2 |
| 24***19 | Valve Group-Control; -Medium Flow | 1 |
| 25***16 | Valve & Mtg Group-Control; -Auxiliary | 1 |
255-5713 Valve & Mtg Gp-Control -Auxiliary
| 1P***02 | Seal-Rectangular 28.83mm(1.136in) Id | 2 |
| 25***13 | Valve & Mtg Group-Control; -Auxiliary | 1 |
| 25***78 | Valve Group-Control; -Auxiliary | 1 |
259-7422 Valve Ar-Alt Pattern Control -2-Way
| 24***90 | Film Group; -Alt Pattern Control, Warning | 1 |
| 25***51 | Lines Group-Pilot; -Alt Pattern Control, 2-Way | 1 |
| 25***22 | Valve Ar-Alt Pattern Control; -2-Way | 1 |
297-0370 Valve Gp-Check
| 09***85 | Seal- -O-Ring (17.80 mm Id) | 1 |
| 09***01 | Seal-O-Ring (Id=34.70mm) | 1 |
| 09***02 | Seal-O-Ring | 1 |
297-0503 Valve Gp-Check
| 20***29 | Valve Group-Check | 1 |
| 20***96 | Pipe As | 1 |
| 29***03 | Valve Group-Check | 1 |
201-9329 Valve Gp-Check
| 09***47 | Seal-O-Ring | 2 |
| 17***13 | Valve As | 1 |
| 18***33 | Valve As | 1 |
297-0462 Valve Gp-Check
| 29***62 | Valve Group-Check | 1 |
| 29***03 | Valve Group-Check | 1 |
| 29***04 | Valve Group-Check | 1 |
297-0504 Valve Gp-Check
| 20***29 | Valve Group-Check | 1 |
| 29***04 | Valve Group-Check | 1 |
| 30***96 | Tube As | 1 |
259-7466 Valve Gp-Control
| 09***75 | Seal - O-Ring (7.80 mm Id) | 1 |
| 09***90 | Seal-O-Ring (Id=21.80mm) | 3 |
| 09***03 | Seal-O-Ring | 1 |
244-8419 Valve Gp-Control -Medium Flow
| 09***90 | Seal-O-Ring (Id=21.80mm) | 1 |
| 09***87 | Ring, Back-Up; (Buck Up) | 1 |
| 15***59 | Housing | 1 |
259-7378 Valve Gp-Control -Auxiliary
| 09***90 | Seal-O-Ring (Id=21.80mm) | 1 |
| 09***87 | Ring, Back-Up; (Buck Up) | 1 |
| 15***59 | Housing | 1 |
244-8400 Valve Gp-Control -Without Covers, Housings
| 10***93 | Spring | 1 |
| 15***76 | Bolt-Special | 1 |
| 24***00 | Valve Group-Control; -Without Covers, Housings | 1 |
259-7632 Valve Gp-Control -Without Covers, Housings
| 10***93 | Spring | 2 |
| 10***94 | Spring | 1 |
| 10***96 | Spring | 1 |
254-3080 Valve Gp-Control -Quick Coupler
| 12***91 | Valve Group-Solenoid; -Hydraulic Activation Control | 1 |
| 14***07 | Plug; (Hex Head) (-6 Orb) (Current) (16***35 Friction Disc Interchangeable With 11***47) (Use All Of One Part Number) | 2 |
| 17***32 | Kit-Seal; (Quick Coupler Valve) | 1 |
259-7465 Valve Gp-Control
| 09***90 | Seal-O-Ring (Id=21.80mm) | 5 |
| 09***87 | Ring, Back-Up; (Buck Up) | 5 |
| 10***52 | Valve Group-Relief; -Negative Flow Control | 1 |
259-7631 Valve Gp-Control -Without Covers, Housings
| 10***93 | Spring | 3 |
| 10***94 | Spring | 1 |
| 10***96 | Spring | 1 |
259-7662 Valve Gp-Control -Heavy Lift
| 09***75 | Seal - O-Ring (7.80 mm Id) | 1 |
| 09***90 | Seal-O-Ring (Id=21.80mm) | 3 |
| 09***03 | Seal-O-Ring | 1 |
185-0490 Valve Gp-Flow Control & Relief
| 09***73 | Screw-Machine; (M4x0.7x25-mm) | 2 |
| 12***23 | Flange-Tube | 1 |
| 16***97 | Valve Group-Flow Control; (Medium Pressure) | 1 |
255-5680 Valve Gp-Load Control -Stick Drift Red, Line Relief
| 08***66 | Spring | 1 |
| 09***94 | Seal-O-Ring (Id=25.70mm) | 1 |
| 09***89 | Ring, Back-Up | 1 |
255-5683 Valve Gp-Load Control -Boom Drift Red, Line Relief
| 08***66 | Spring | 1 |
| 09***94 | Seal-O-Ring (Id=25.70mm) | 1 |
| 09***89 | Ring, Back-Up | 1 |
259-7602 Valve Gp-Main Control -Heavy Lift
| 15***13 | Valve Group-Relief; -Negative Flow Control | 1 |
| 1P***02 | Seal-Rectangular 28.83mm(1.136in) Id | 2 |
| 25***65 | Valve Group-Control; -Front-Rh | 1 |
259-7464 Valve Gp-Main Control
| 15***13 | Valve Group-Relief; -Negative Flow Control | 1 |
| 1P***02 | Seal-Rectangular 28.83mm(1.136in) Id | 2 |
| 25***64 | Valve Group-Main Control; (Main Control) | 1 |
277-0954 Valve Gp-Manual -Auxiliary, Shutoff
| 27***54 | Valve Group-Manual; -Auxiliary, Shutoff-Stick, High Pressure | 1 |
| 30***66 | Handle | 1 |
| 3J***07 | Seal Valve Assembly To; Seal- Tube Assembly To Logic Valve | 1 |
285-1327 Valve Gp-Pilot -Joystick
| 09***76 | Seal | 4 |
| 09***86 | Seal - O-Ring (19.80 mm Id) | 4 |
| 09***28 | Sleeve | 4 |
270-5947 Valve Gp-Pilot -Travel
| 08***10 | Setscrew; (M10x21-mm) | 4 |
| 08***08 | Pedal | 2 |
| 08***09 | Bellows | 2 |
297-0529 Valve Gp-Pilot -Joystick
| 09***76 | Seal | 4 |
| 09***86 | Seal - O-Ring (19.80 mm Id) | 4 |
| 09***28 | Sleeve | 4 |
285-1765 Valve Gp-Pilot -Alt Pattern Control, 2-Way
| 11***83 | Seal-Rubber | 1 |
| 1J***71 | Seal (10.52 Degrees I.D.); Seal-O-Ring -- To Adapter | 4 |
| 28***64 | Bolt-Wing | 1 |
310-0414 Valve Gp-Pilot
| 08***10 | Setscrew; (M10x21-mm) | 4 |
| 08***08 | Pedal | 2 |
| 09***73 | Bolt; (Socket Head) (M12x1.75x60mm) | 2 |
201-9353 Valve Gp-Pilot Relief
| 09***78 | Seal-O-Ring (Id=9.80mm) | 1 |
| 10***52 | Ring | 2 |
| 10***53 | Ring | 2 |
232-4102 Valve Gp-Pressure Reducing -Boom, Swing Priority
| 09***80 | Seal-O-Ring (Id=11.80mm) | 2 |
| 09***82 | Seal-O-Ring (Id=13.80mm) | 2 |
| 09***90 | Seal-O-Ring (Id=21.80mm) | 2 |
310-0210 Valve Gp-Pressure Reducing -Boom, Swing Priority
| 09***80 | Seal-O-Ring (Id=11.80mm) | 2 |
| 09***82 | Seal-O-Ring (Id=13.80mm) | 2 |
| 09***90 | Seal-O-Ring (Id=21.80mm) | 2 |
153-5295 Valve Gp-Priority -Swing
| 10***89 | Seal-O-Ring | 2 |
| 10***73 | Seal-O-Ring | 2 |
| 14***74 | Valve | 1 |
255-5662 Valve Gp-Relief -Line
| 09***78 | Seal-O-Ring (Id=9.80mm) | 1 |
| 10***52 | Ring | 2 |
| 10***53 | Ring | 2 |
109-5152 Valve Gp-Relief -Negative Flow Control
| 10***70 | Spring | 1 |
| 10***71 | Valve | 1 |
| 10***52 | Valve Group-Relief; -Negative Flow Control | 1 |
201-9352 Valve Gp-Relief
| 10***21 | Valve Group-Relief; (Pilot Relief) | 1 |
| 20***52 | Valve Group-Relief; -Heel | 1 |
| 20***53 | Valve Group-Pilot Relief; (Pilot Relief) | 1 |
173-3536 Valve Gp-Relief
| 09***86 | Seal - O-Ring (19.80 mm Id) | 1 |
| 09***85 | Ring; (Back Up) | 1 |
| 17***36 | Valve Group-Relief; -Cushion Crossover | 1 |
177-2653 Valve Gp-Relief -With Block
| 17***53 | Valve Group-Relief; -With Block | 1 |
| 31***94 | Valve Group-Relief, Male Union Elbow | 1 |
173-3452 Valve Gp-Relief
| 09***98 | Seal-O-Ring (Id=29.40mm) | 1 |
| 16***65 | Ring-Back Up; (Backup) | 1 |
| 17***52 | Valve Group-Relief | 1 |
109-2667 Valve Gp-Relief
| 10***70 | Spring | 1 |
| 10***71 | Valve | 1 |
| 10***65 | Body-Valve | 1 |
310-0393 Valve Gp-Relief -Main, Heavy Lift
| 09***79 | Seal-O-Ring (Id=10.80mm) | 1 |
| 09***84 | Seal-O-Ring (Id=15.80mm) | 1 |
| 09***87 | Seal-O-Ring (Id=20.80mm) | 1 |
153-5313 Valve Gp-Relief -Negative Flow Control
| 10***67 | Valve Group-Relief; -Negative Flow Control | 1 |
| 15***39 | Cover | 1 |
| 15***13 | Valve Group-Relief; -Negative Flow Control | 1 |
239-8774 Valve Gp-Relief -Main, Heavy Lift
| 09***79 | Seal-O-Ring (Id=10.80mm) | 1 |
| 09***84 | Seal-O-Ring (Id=15.80mm) | 1 |
| 09***87 | Seal-O-Ring (Id=20.80mm) | 1 |
255-5660 Valve Gp-Relief -Main
| 09***79 | Seal-O-Ring (Id=10.80mm) | 1 |
| 09***87 | Seal-O-Ring (Id=20.80mm) | 1 |
| 09***90 | Seal-O-Ring (Id=21.80mm) | 1 |
255-5661 Valve Gp-Relief -Line
| 09***78 | Seal-O-Ring (Id=9.80mm) | 1 |
| 10***52 | Ring | 2 |
| 10***53 | Ring | 2 |
105-1321 Valve Gp-Pilot Relief
| 03***67 | Ring; (Back Up) | 1 |
| 03***36 | Seal-O-Ring | 2 |
| 10***21 | Valve Group-Relief; (Pilot Relief) | 1 |
222-0084 Valve Gp-Relief
| 09***79 | Seal-O-Ring (Id=10.80mm) | 1 |
| 09***87 | Seal-O-Ring (Id=20.80mm) | 1 |
| 09***90 | Seal-O-Ring (Id=21.80mm) | 1 |
310-0394 Valve Gp-Relief
| 09***79 | Seal-O-Ring (Id=10.80mm) | 1 |
| 09***87 | Seal-O-Ring (Id=20.80mm) | 1 |
| 09***90 | Seal-O-Ring (Id=21.80mm) | 1 |
204-2755 Valve Gp-Relief
| 09***86 | Seal - O-Ring (19.80 mm Id) | 2 |
| 09***90 | Seal-O-Ring (Id=21.80mm) | 1 |
| 09***01 | Seal-O-Ring (Id=34.70mm) | 1 |
164-6979 Valve Gp-Shuttle
| 12***31 | Body-Valve | 1 |
| 12***52 | Connector | 1 |
| 16***79 | Valve Group-Shuttle | 1 |
123-2430 Valve Gp-Shuttle
| 12***30 | Valve Group-Shuttle; (Work Tool) | 1 |
| 12***31 | Body-Valve | 1 |
| 12***52 | Connector | 2 |
112-0083 Valve Gp-Shuttle
| 11***83 | Valve Group-Shuttle; -Third Pedal, Straight Travel | 1 |
| 11***85 | Plug | 4 |
| 2D***42 | Ball 6.35 mm(.25 In.)Diameter | 4 |
164-6980 Valve Gp-Shuttle
| 12***49 | Valve Group-Shuttle | 1 |
| 16***80 | Valve Group-Shuttle | 1 |
| 6V***97 | Seal (Later Machines And Field Installed) | 2 |
185-0462 Valve Gp-Shuttle
| 09***78 | Seal-O-Ring (Id=9.80mm) | 7 |
| 10***79 | Plug | 7 |
| 16***64 | Seat | 6 |
259-7732 Valve Gp-Shuttle
| 25***32 | Valve Group-Shuttle; -Swing | 1 |
| 25***33 | Connector | 3 |
| 3J***07 | Seal Valve Assembly To; Seal- Tube Assembly To Logic Valve | 3 |
123-2549 Valve Gp-Shuttle
| 12***11 | Tee-Orfs | 1 |
| 12***49 | Valve Group-Shuttle | 1 |
| 12***52 | Connector | 2 |
258-6749 Valve Gp-Solenoid
| 12***91 | Valve Group-Solenoid; -Hydraulic Activation Control | 1 |
| 25***49 | Valve Group-Solenoid | 1 |
| 8T***88 | Screw (Required Only When Bosch Alternator Is Fitted) | 2 |
259-7430 Valve Gp-Solenoid
| 11***16 | Valve Group-Solenoid; -Grapple Signal-Ground Saw, Grapple Control | 2 |
| 25***30 | Valve Group-Solenoid; -Pressure Reducing | 1 |
| 8T***88 | Screw (Required Only When Bosch Alternator Is Fitted) | 4 |
315-4412 Valve Gp-Solenoid
| 09***86 | Seal - O-Ring (19.80 mm Id) | 1 |
| 12***14 | Seal-O-Ring (Id=10.82mm) | 1 |
| 12***15 | Seal-O-Ring (Id=12.42mm) | 1 |
121-1491 Valve Gp-Solenoid
| 09***86 | Seal - O-Ring (19.80 mm Id) | 1 |
| 09***50 | Seal-O-Ring (Id=10.82mm) | 1 |
| 09***51 | Seal-O-Ring (Id=14.00mm) | 1 |
111-9916 Valve Gp-Solenoid
| 09***86 | Seal - O-Ring (19.80 mm Id) | 1 |
| 09***50 | Seal-O-Ring (Id=10.82mm) | 1 |
| 09***51 | Seal-O-Ring (Id=14.00mm) | 1 |
165-9549 Valve Gp-Solenoid
| 12***91 | Valve Group-Solenoid; -Hydraulic Activation Control | 3 |
| 16***49 | Valve Group-Solenoid | 1 |
| 7I***84 | Plug | 4 |
171-0188 Valve Gp-Solenoid
| 11***16 | Valve Group-Solenoid; -Grapple Signal-Ground Saw, Grapple Control | 1 |
| 17***88 | Valve Group-Solenoid; -Neg Flow Cont, Propn Red Valve | 1 |
| 17***98 | Valve Group-Shuttle | 2 |
121-6303 Valve Gp-Solenoid
| 09***19 | Seal-O-Ring (Id=15.80mm) | 1 |
| 09***78 | Seal-O-Ring (Id=9.80mm) | 1 |
| 09***22 | Bolt-Socket Head; (M5x0.8x10-mm) | 2 |
116-3526 Valve Gp-Solenoid
| 09***86 | Seal - O-Ring (19.80 mm Id) | 1 |
| 11***26 | Valve Group-Solenoid; -Swing Cushion | 1 |
| 12***14 | Seal-O-Ring (Id=10.82mm) | 1 |
260-3877 Valve Gp-Solenoid & Manifold
| 15***70 | Nut; (1/2-20-2b-Thd) | 1 |
| 18***35 | Pin-Connector; (16-Ga To 18-Ga) | 2 |
| 1S***93 | Strap; (Cable) (0.62in Dia) | 2 |
328-2035 Valve Gp-Solenoid & Manifold
| 15***70 | Nut; (1/2-20-2b-Thd) | 1 |
| 18***35 | Pin-Connector; (16-Ga To 18-Ga) | 2 |
| 1S***93 | Strap; (Cable) (0.62in Dia) | 2 |
322-8716 Valve Gp-Swing Cushion -Fine Swing
| 09***76 | Seal-O-Ring | 1 |
| 09***98 | Seal-O-Ring (Id=29.40mm) | 2 |
| 13***88 | Orifice | 2 |
158-9090 Valve Gp-Swing Cushion -Fine Swing
| 09***76 | Seal-O-Ring | 1 |
| 09***98 | Seal-O-Ring (Id=29.40mm) | 2 |
| 11***26 | Valve Group-Solenoid; -Swing Cushion | 1 |
204-2819 Valve Gp-Travel Counterbalance
| 09***45 | Washer; (28.5x37x2-mm Thk) | 2 |
| 20***55 | Valve Group-Relief; -Crossover | 2 |
| 20***19 | Valve Group-Travel Counterbalance | 1 |
Implements
240-3833 Boom Ar -1-Piece Short Boom
| 17***39 | Lines Group-Grease; -Boom | 1 |
| 23***32 | Lines Group-Boom; -1-Piece Short | 1 |
| 24***33 | Boom Ar; -1-Piece Short Boom | 1 |
240-3828 Boom Ar-1 Piece Long
| 24***28 | Boom Ar-1 Piece Long | 1 |
| 24***82 | Boom Group | 1 |
| 24***86 | Lines Group-Grease; -Boom | 1 |
275-3695 Boom Ar-1 Piece Long -Accugrade
| 24***86 | Lines Group-Grease; -Boom | 1 |
| 24***30 | Cylinder & Lines Group-Boom; -Lh | 1 |
| 24***33 | Cylinder & Lines Group-Stick | 1 |
240-3830 Boom Ar-1 Piece Long -Heavy-Duty
| 24***30 | Boom Ar-1 Piece Long; -Heavy-Duty | 1 |
| 24***86 | Lines Group-Grease; -Boom | 1 |
| 24***87 | Boom Group; (Long Reach) | 1 |
241-7291 Boom Gp
| 09***84 | Shim (1.0 mm Thick) | 2 |
| 09***16 | Shim (2.0 mm Thick) | 2 |
| 09***49 | Washer; (22x60x6-mm Thk) | 2 |
241-7287 Boom Gp
| 09***84 | Shim (1.0 mm Thick) | 2 |
| 09***16 | Shim (2.0 mm Thick) | 2 |
| 09***49 | Washer; (22x60x6-mm Thk) | 2 |
241-7282 Boom Gp
| 09***84 | Shim (1.0 mm Thick) | 2 |
| 09***16 | Shim (2.0 mm Thick) | 2 |
| 09***49 | Washer; (22x60x6-mm Thk) | 2 |
282-4533 Boom Gp -Accugrade
| 09***84 | Shim (1.0 mm Thick) | 2 |
| 09***16 | Shim (2.0 mm Thick) | 2 |
| 09***49 | Washer; (22x60x6-mm Thk) | 2 |
241-7286 Lines Gp-Grease -Boom
| 03***48 | Clip; (11.11mm .437in Id) | 3 |
| 12***26 | Hose As | 1 |
| 16***79 | Clip | 3 |
267-0138 Lines Gp-Grease
| 08***38 | Plate As | 2 |
| 26***38 | Lines Group-Grease; -Stick | 1 |
| 26***39 | Tube As | 1 |
172-2939 Lines Gp-Grease -Boom
| 03***48 | Clip; (11.11mm .437in Id) | 3 |
| 11***77 | Hose As | 1 |
| 11***78 | Hose As | 1 |
247-7331 Linkage Ar-Bucket -Cb2-Family, With Lifting Eye
| 22***90 | Cylinder & Lines Group-Bucket | 1 |
| 24***31 | Linkage Ar-Bucket; -Cb2-Family, With Lifting Eye | 1 |
| 25***97 | Linkage Group-Bucket; -Cb2-Family | 1 |
275-3707 Linkage Ar-Bucket -B1-Family, With Lifting Eye
| 24***55 | Cylinder & Lines Group-Bucket | 1 |
| 27***07 | Linkage Ar-Bucket; -B1-Family, With Lifting Eye | 1 |
| 28***39 | Linkage Group-Bucket; -B1-Family | 1 |
240-3858 Linkage Ar-Bucket -B1-Family, With Lifting Eye
| 24***58 | Linkage Ar-Bucket; -B1-Family, With Lifting Eye | 1 |
| 24***55 | Cylinder & Lines Group-Bucket | 1 |
| 26***88 | Linkage Group-Bucket; -B1-Family, With Lifting Eye | 1 |
262-3497 Linkage Gp-Bucket -B1-Family
| 08***05 | . Head; Cyl., Pin | 2 |
| 09***44 | Seal-O-Ring (Id=140.00mm) | 4 |
| 16***86 | Shim; (2-mm Thk) | 2 |
282-4539 Linkage Gp-Bucket -B1-Family
| 08***05 | . Head; Cyl., Pin | 2 |
| 09***44 | Seal-O-Ring (Id=140.00mm) | 4 |
| 16***86 | Shim; (2-mm Thk) | 2 |
251-2597 Linkage Gp-Bucket -Cb2-Family
| 09***49 | Washer; (22x60x6-mm Thk) | 2 |
| 09***45 | Seal-O-Ring | 4 |
| 16***87 | Shim; (2-mm Thk) | 2 |
260-2288 Linkage Gp-Bucket -B1-Family, With Lifting Eye
| 08***05 | . Head; Cyl., Pin | 2 |
| 09***44 | Seal-O-Ring (Id=140.00mm) | 4 |
| 16***86 | Shim; (2-mm Thk) | 2 |
177-8628 Pin Gp -Coupler
| 08***05 | . Head; Cyl., Pin | 2 |
| 17***28 | Pin Group; -Coupler | 1 |
| 23***66 | Bolt; (M16x2x195-mm) | 2 |
240-3845 Stick Ar -B-Family
| 18***76 | Lines Group-Bucket Cylinder | 1 |
| 24***45 | Stick Ar; -B-Family | 1 |
| 24***96 | Stick Group-Hoe; -B-Family | 1 |
314-3727 Stick Ar-Hoe -Heavy-Duty, Reach
| 18***93 | Lines Group-Bucket Cylinder | 1 |
| 31***27 | Stick Ar; (Heavy-Duty, Reach)(B1-Family) | 1 |
| 32***66 | Stick Group-Hoe; -Auxiliary, Coupler | 1 |
240-3849 Stick Ar-Hoe
| 18***93 | Lines Group-Bucket Cylinder | 1 |
| 24***49 | Stick Ar-Hoe; -Reach | 1 |
| 24***63 | Stick Group-Hoe; -Auxiliary, Coupler | 1 |
240-3851 Stick Ar-Hoe -B1-Family, Heavy-Duty
| 18***93 | Lines Group-Bucket Cylinder | 1 |
| 24***51 | Stick Ar-Hoe; -B1-Family, Heavy-Duty | 1 |
| 24***03 | Stick Group-Hoe; -Auxiliary, Coupler | 1 |
240-3882 Stick Ar-Hoe -Reach
| 24***82 | Stick Ar-Hoe; -Reach | 1 |
| 24***06 | Stick Group-Hoe | 1 |
| 26***11 | Lines Group-Bucket Cylinder | 1 |
275-3702 Stick Ar-Hoe
240-3854 Stick Ar-Hoe -Heavy-Duty, B-Family
| 24***54 | Stick Ar-Hoe; -Heavy-Duty, B-Family | 1 |
| 24***09 | Stick Group-Hoe; -Heavy-Duty, B-Family | 1 |
| 26***11 | Lines Group-Bucket Cylinder | 1 |
240-3846 Stick Ar-Hoe -Cb2-Family
| 24***46 | Stick Ar-Hoe; -Cb2-Family | 1 |
| 24***15 | Stick Group-Hoe; -Mass | 1 |
| 24***33 | Lines Group-Bucket Cylinder | 1 |
282-4536 Stick Gp-Hoe
| 09***49 | Washer; (22x60x6-mm Thk) | 2 |
| 09***63 | Spacer; (83x120x12-mm Thk) | 1 |
| 11***82 | Spacer; (73x105x14-mm Thk) | 1 |
242-6463 Stick Gp-Hoe -Auxiliary, Coupler
| 09***49 | Washer; (22x60x6-mm Thk) | 2 |
| 09***63 | Spacer; (83x120x12-mm Thk) | 1 |
| 11***82 | Spacer; (73x105x14-mm Thk) | 1 |
241-7315 Stick Gp-Hoe -Mass
| 09***49 | Washer; (22x60x6-mm Thk) | 2 |
| 09***63 | Spacer; (83x120x12-mm Thk) | 1 |
| 11***82 | Spacer; (73x105x14-mm Thk) | 1 |
241-7309 Stick Gp-Hoe -Heavy-Duty, B-Family
| 09***49 | Washer; (22x60x6-mm Thk) | 2 |
| 09***63 | Spacer; (83x120x12-mm Thk) | 1 |
| 11***82 | Spacer; (73x105x14-mm Thk) | 1 |
241-7306 Stick Gp-Hoe
| 09***49 | Washer; (22x60x6-mm Thk) | 2 |
| 09***63 | Spacer; (83x120x12-mm Thk) | 1 |
| 11***82 | Spacer; (73x105x14-mm Thk) | 1 |
241-7303 Stick Gp-Hoe -B1-Family
| 09***49 | Washer; (22x60x6-mm Thk) | 2 |
| 09***63 | Spacer; (83x120x12-mm Thk) | 1 |
| 11***82 | Spacer; (73x105x14-mm Thk) | 1 |
324-0966 Stick Gp-Hoe -Auxiliary, Coupler
| 09***49 | Washer; (22x60x6-mm Thk) | 2 |
| 09***63 | Spacer; (83x120x12-mm Thk) | 1 |
| 11***82 | Spacer; (73x105x14-mm Thk) | 1 |
241-7296 Stick Gp-Hoe -B-Family
| 09***49 | Washer; (22x60x6-mm Thk) | 2 |
| 09***63 | Spacer; (83x120x12-mm Thk) | 1 |
| 11***82 | Spacer; (73x105x14-mm Thk) | 1 |
Lubrication System
296-4654 Adapter Gp-Remote Oil Filter -Engine
| 18***91 | Seal | 2 |
| 18***93 | Elbow | 2 |
| 29***26 | Bolt; (M10x1.5x37-mm) | 3 |
296-4638 Breather Gp
| 29***73 | Hose | 1 |
| 29***74 | Seal-O-Ring | 1 |
| 29***75 | Bolt; (M10x1.5x23-mm) | 2 |
279-7911 Filter & Mtg Gp-Engine Oil
| 03***53 | Seal-O-Ring; (08.92mm Id) | 1 |
| 03***38 | Seal-O-Ring | 2 |
| 12***07 | Base | 1 |
296-4641 Lines Gp-Engine Oil
| 17***63 | Strainer | 1 |
| 19***51 | Bolt As | 1 |
| 23***96 | Gasket | 1 |
162-6185 Lines Gp-Engine Oil Drain
| 09***88 | Clamp; (Hose) | 1 |
| 09***61 | Strap; (Cable) | 1 |
| 16***85 | Lines Group-Engine Oil Drain | 1 |
310-9582 Lines Gp-Engine Oil Drain
| 09***88 | Clamp; (Hose) | 1 |
| 21***69 | Elbow | 1 |
| 31***82 | Lines Group-Engine Oil Drain | 1 |
296-4636 Lines Gp-Turbocharger Oil
| 19***22 | Bolt; (M6x1x16-mm) | 2 |
| 19***66 | Bolt | 2 |
| 29***64 | Pipe | 1 |
Machine Arrangement
264-8639 Chassis Ar
| 14***35 | Handrail Group; -Chassis | 1 |
| 14***36 | Mirror Group-Rear View; -Front, Rh | 1 |
| 22***40 | Box & Mtg Group-Storage | 1 |
264-8638 Chassis Ar
| 14***35 | Handrail Group; -Chassis | 1 |
| 14***36 | Mirror Group-Rear View; -Front, Rh | 1 |
| 22***40 | Box & Mtg Group-Storage | 1 |
290-1774 Conversion Ar-Machine
| 27***03 | Mounting Group-Antenna; -Accugrade Ready | 1 |
| 27***58 | Floor Mat Group; -Accugrade Ready | 1 |
| 29***74 | Conversion Ar-Machine | 1 |
345-2293 Distribution Ar
| 16***72 | Lighting Group-Flood; -Cab | 1 |
| 19***11 | Track Group; -2-Required | 2 |
| 29***72 | Cooling Ar-High Ambient Temp | 1 |
342-1382 Distribution Ar
| 16***72 | Lighting Group-Flood; -Cab | 1 |
| 19***11 | Track Group; -2-Required | 2 |
| 29***72 | Cooling Ar-High Ambient Temp | 1 |
342-1384 Distribution Ar
| 19***11 | Track Group; -2-Required | 2 |
| 26***71 | Air Cleaner Ar; -Precleaner | 1 |
| 33***65 | Option Ar-Regional | 1 |
342-1381 Distribution Ar
| 16***72 | Lighting Group-Flood; -Cab | 1 |
| 19***20 | Track Group; -2-Required | 2 |
| 29***72 | Cooling Ar-High Ambient Temp | 1 |
345-2292 Distribution Ar
| 16***72 | Lighting Group-Flood; -Cab | 1 |
| 19***20 | Track Group; -2-Required | 2 |
| 29***72 | Cooling Ar-High Ambient Temp | 1 |
342-1383 Distribution Ar
| 19***11 | Track Group; -2-Required | 2 |
| 26***71 | Air Cleaner Ar; -Precleaner | 1 |
| 33***65 | Option Ar-Regional | 1 |
264-8627 General Ar
| 18***84 | Cover | 1 |
| 22***61 | Electronics Group-Monitor | 1 |
| 24***22 | Frame Ar-Undercarriage; -Long | 1 |
264-8626 General Ar
| 18***84 | Cover | 1 |
| 22***61 | Electronics Group-Monitor | 1 |
| 24***54 | Frame Ar-Undercarriage; -Standard | 1 |
330-1194 Machine Ar
| 32***91 | Tank & Mtg Group-Fuel | 1 |
| 33***62 | Mirror Group-Down View; -Fuel Tank, Rh | 1 |
| 33***66 | Fender & Cover Group | 1 |
342-1375 Option Ar-Cab
| 22***86 | Wiper Ar-Window; -Lower | 1 |
| 23***00 | Cover Group-Storage; -Cab, Rear | 1 |
| 23***03 | Air Conditioner Ar | 1 |
342-1374 Option Ar-Cab
| 22***70 | Washer Group-Window | 1 |
| 23***00 | Cover Group-Storage; -Cab, Rear | 1 |
| 23***03 | Air Conditioner Ar | 1 |
345-2291 Option Ar-Cab
| 22***70 | Washer Group-Window | 1 |
| 23***00 | Cover Group-Storage; -Cab, Rear | 1 |
| 23***03 | Air Conditioner Ar | 1 |
342-1378 Option Ar-Control
| 24***73 | Floor Mat | 1 |
| 25***78 | Pedal Ar-Auxiliary; -Third Pedal, Straight Travel | 1 |
| 25***22 | Valve Ar-Alt Pattern Control; -2-Way | 1 |
337-4108 Option Ar-Coupler
| 24***71 | Floor Mat | 1 |
| 31***78 | Control & Mtg Group-Joystick | 1 |
| 33***08 | Option Ar-Coupler | 1 |
330-8469 Option Ar-Coupler
| 24***78 | Lines Group-Coupler; -Reach Boom | 1 |
| 24***94 | Lines Group-Coupler | 1 |
| 26***94 | Coupler Ar-Quick; -B1-Family Linkage | 1 |
342-1376 Option Ar-Guard
| 27***57 | Bumper Group; -Side | 1 |
| 29***99 | Guard Ar; -Heavy-Duty | 1 |
| 34***76 | Option Ar-Guard | 1 |
330-8467 Option Ar-Hydraulic
| 29***68 | Floor Mat | 1 |
| 29***92 | Control Ar-Auxiliary; -System 3, 1-Way, 2-Pump | 1 |
| 31***78 | Control & Mtg Group-Joystick | 1 |
342-1379 Option Ar-Hydraulic
| 24***94 | Floor Mat | 1 |
| 25***95 | Control Ar-Auxiliary; -Combined Func, Medium Pressure | 1 |
| 31***78 | Control & Mtg Group-Joystick | 1 |
330-8470 Option Ar-Hydraulic
| 24***78 | Lines Group-Coupler; -Reach Boom | 1 |
| 24***90 | Lines Group-Coupler; -Stick | 1 |
| 26***94 | Coupler Ar-Quick; -B1-Family Linkage | 1 |
330-8468 Option Ar-Hydraulic
| 25***78 | Pedal Ar-Auxiliary; -Third Pedal, Straight Travel | 1 |
| 25***22 | Valve Ar-Alt Pattern Control; -2-Way | 1 |
| 29***92 | Control Ar-Auxiliary; -System 3, 1-Way, 2-Pump | 1 |
330-8472 Option Ar-Linkage
| 24***30 | Boom Ar-1 Piece Long; -Heavy-Duty | 1 |
| 24***54 | Stick Ar-Hoe; -Heavy-Duty, B-Family | 1 |
| 24***58 | Linkage Ar-Bucket; -B1-Family, With Lifting Eye | 1 |
330-8473 Option Ar-Linkage
| 24***30 | Boom Ar-1 Piece Long; -Heavy-Duty | 1 |
| 24***58 | Linkage Ar-Bucket; -B1-Family, With Lifting Eye | 1 |
| 25***47 | Lighting Group-Flood; -Boom, Rh | 1 |
342-1373 Option Ar-Linkage
| 24***30 | Boom Ar-1 Piece Long; -Heavy-Duty | 1 |
| 24***58 | Linkage Ar-Bucket; -B1-Family, With Lifting Eye | 1 |
| 24***75 | Lines Group-Auxiliary Hydraulic; -Boom, High Pressure | 1 |
342-1380 Option Ar-Linkage
| 27***95 | Boom Ar-1 Piece Long; -Accugrade | 1 |
| 27***02 | Stick Ar-Hoe; -Reach, Accugrade Ready | 1 |
| 27***07 | Linkage Ar-Bucket; -B1-Family, With Lifting Eye | 1 |
342-1372 Option Ar-Linkage
| 23***84 | Lines Group-Auxiliary Hydraulic; -Stick, High Pressure | 1 |
| 24***30 | Boom Ar-1 Piece Long; -Heavy-Duty | 1 |
| 24***54 | Stick Ar-Hoe; -Heavy-Duty, B-Family | 1 |
330-8465 Option Ar-Regional
| 23***71 | Alarm Group-Travel; -Backup | 1 |
| 24***81 | Valve & Lines Group-Heavy Lift | 1 |
| 27***72 | Sensor Group-Liquid Level; -Water Separator | 1 |
342-1377 Option Ar-Wiring -Cold Weather Starting
| 25***49 | Battery & Wiring Group; -Cold Weather | 1 |
| 25***51 | Wiring Group-Engine; -Jump Start | 1 |
| 34***77 | Option Ar-Wiring; -Cold Weather Starting | 1 |
Operator Station
245-7896 Adjuster Gp-Seat -Lower Slide
| 19***99 | Screw-Button Head; (M8x1.25x20-mm) | 2 |
| 24***86 | Plate | 2 |
| 24***96 | Adjuster Group-Seat; -Lower Slide | 1 |
235-9004 Air Conditioner & Mounting Gp
| 09***74 | Bolt-Socket Head; (M5x0.8x12-mm) | 2 |
| 11***36 | Clip | 3 |
| 23***73 | Harness As-Heater & Air Cond; (Control Panel Switches) | 1 |
235-9003 Air Conditioner Ar
| 22***82 | Duct Group-Cab Air | 1 |
| 23***03 | Air Conditioner Ar | 1 |
| 23***04 | Air Conditioner & Mounting Group | 1 |
316-8811 Air Conditioner Gp
| 18***00 | Screw-Tapping | 35 |
| 18***02 | Screw As; (Tapping) | 3 |
| 24***17 | Motor As | 2 |
240-5036 Air Conditioner Gp
| 18***00 | Screw-Tapping | 35 |
| 18***02 | Screw As; (Tapping) | 3 |
| 24***36 | Air Conditioner Group | 1 |
316-8916 Air Conditioner Gp
| 18***00 | Screw-Tapping | 35 |
| 18***02 | Screw As; (Tapping) | 3 |
| 24***17 | Motor As | 2 |
259-7347 Armrest Gp -Lh
| 17***25 | Screw-Tapping; (M5x0.8-Thd) | 3 |
| 18***86 | Screw-Machine; (M4x0.7x8-mm) | 2 |
| 23***52 | Support As | 1 |
259-7346 Armrest Gp -Rh
| 17***25 | Screw-Tapping; (M5x0.8-Thd) | 3 |
| 18***86 | Screw-Machine; (M4x0.7x8-mm) | 2 |
| 23***51 | Support As | 1 |
235-8910 Cab Gp -Exterior
| 09***55 | Screw-Machine; (M4x0.07x12-mm) | 2 |
| 09***23 | Screw-Machine; (M6x1x6-mm) | 3 |
| 10***69 | Bolt As; (M8x1.25x16-mm) | 3 |
235-8908 Cab Gp -Interior
| 12***35 | Screw; (Truss Head) (M6x1x13mm) | 13 |
| 12***36 | Screw; (Truss Head) (M6x1.0x16mm) | 1 |
| 15***73 | Cover | 1 |
296-5189 Cab Gp
| 13***46 | Film-Stripe; (Red)(700-cm) | 0 |
| 22***13 | Monitor & Mtg Group-Operator | 1 |
| 22***99 | Cab Group | 1 |
229-9099 Cab Gp
| 13***99 | Hatch Group; (Roof) | 1 |
| 13***00 | Door Group-Cab | 1 |
| 13***01 | Window Group-Cab; -Front, Upper | 1 |
296-5190 Cab Gp
| 12***35 | Screw; (Truss Head) (M6x1x13mm) | 5 |
| 16***74 | Louver As-Vent | 2 |
| 23***01 | Cover Group-Access; -Cab, Rear | 1 |
245-7836 Coil Gp-Evaporator
| 12***36 | Seal-O-Ring (Id=13.4mm); (Id=13.40mm) | 1 |
| 12***38 | Seal-O-Ring (Id=6.7mm); (Id=6.70mm) | 1 |
| 24***36 | Coil Group-Evaporator | 1 |
239-6507 Compressor Gp-Refrigerant
| 11***63 | Pulley | 1 |
| 20***88 | Spacer | 1 |
| 23***07 | Compressor Group-Refrigerant | 1 |
259-7244 Compressor Gp-Refrigerant
| 18***35 | Pin-Connector; (16-Ga To 18-Ga) | 2 |
| 24***05 | Receptacle As-Connector; (2-Pin) | 1 |
| 25***44 | Compressor Group-Refrigerant | 1 |
259-7184 Condenser & Mtg Gp-Refrigerant
| 11***29 | Washer; (6.6x22x2-mm Thk) | 4 |
| 24***49 | Condenser Group-Refrigerant | 1 |
| 25***84 | Condenser & Mtg Group-Refrigerant | 1 |
245-7749 Condenser Gp-Refrigerant
| 09***27 | Lockwasher-Tooth; (0.6mm Thk) | 8 |
| 23***80 | Condenser As | 1 |
| 24***49 | Condenser Group-Refrigerant | 1 |
245-7922 Console Gp-Operator
| 12***17 | Guard | 2 |
| 17***16 | Grommet | 2 |
| 17***22 | Grommet | 2 |
259-7349 Console Gp-Operator -Lh
| 12***35 | Screw; (Truss Head) (M6x1x13mm) | 5 |
| 17***25 | Screw-Tapping; (M5x0.8-Thd) | 3 |
| 23***79 | Nut-Speed | 6 |
274-7465 Console Gp-Operator -Lh
| 23***36 | Wiring Group-Console; -Lh | 1 |
| 25***49 | Console Group-Operator; -Lh | 1 |
| 27***65 | Console Group-Operator; -Lh | 1 |
259-7348 Console Gp-Operator -Rh
| 12***35 | Screw; (Truss Head) (M6x1x13mm) | 4 |
| 18***84 | Cover | 1 |
| 23***79 | Nut-Speed | 2 |
274-7466 Console Gp-Operator -Rh
| 25***35 | Wiring Group-Console; -Rh | 1 |
| 25***42 | Panel Group-Switch; -Engine Speed, Start | 1 |
| 25***48 | Console Group-Operator; -Rh | 1 |
259-7707 Control & Mtg Gp-Joystick
| 25***07 | Control & Mtg Group-Joystick | 1 |
| 27***51 | Control Group-Joystick; -Lh | 1 |
| 27***52 | Control Group-Joystick; -Rh | 1 |
310-0078 Control & Mtg Gp-Joystick
| 29***32 | Control Group-Joystick; -Rh | 1 |
| 29***33 | Control Group-Joystick; -Lh | 1 |
| 31***78 | Control & Mtg Group-Joystick | 1 |
270-6107 Control Gp-Foot -Left On/Off Switch
| 09***69 | Grommet | 1 |
| 20***40 | Harness As-Operator Controls | 1 |
| 27***07 | Control Group-Foot; -Left On/Off Switch | 1 |
235-8970 Control Gp-Handle -Joystick, Rh
| 09***17 | Screw-Machine; (M5x0.8x6-mm) | 2 |
| 12***09 | Shaft | 1 |
| 12***10 | Lever | 1 |
235-8969 Control Gp-Handle -Joystick, Lh
| 09***17 | Screw-Machine; (M5x0.8x6-mm) | 2 |
| 12***09 | Shaft | 1 |
| 12***10 | Lever | 1 |
245-7846 Control Gp-Heat & Air Cond -Air Inlet
| 18***00 | Screw-Tapping | 4 |
| 19***66 | Relay; (Compressor Clutch) | 2 |
| 24***13 | Motor As | 1 |
259-7179 Control Gp-Hydraulic Pedal
| 09***35 | Screw; (Machine) (M5x0.8x8mm) | 2 |
| 12***73 | Pin | 1 |
| 13***74 | Pedal-Rubber | 1 |
239-8695 Control Gp-Hydraulic Pedal
| 09***35 | Screw; (Machine) (M5x0.8x8mm) | 4 |
| 12***65 | Pedal-Rubber; (Lh) | 1 |
| 12***11 | Pedal-Rubber; (Rh) | 1 |
239-8693 Control Gp-Hydraulic Pedal
| 09***35 | Screw; (Machine) (M5x0.8x8mm) | 2 |
| 12***11 | Pedal-Rubber; (Rh) | 1 |
| 12***73 | Pin | 1 |
297-0532 Control Gp-Joystick -Rh
| 23***70 | Control Group-Handle; -Joystick, Rh | 1 |
| 29***29 | Valve Group-Pilot; -Joystick | 1 |
| 29***32 | Control Group-Joystick; -Rh | 1 |
297-0533 Control Gp-Joystick -Lh
| 23***69 | Control Group-Handle; -Joystick, Lh | 1 |
| 29***29 | Valve Group-Pilot; -Joystick | 1 |
| 29***33 | Control Group-Joystick; -Lh | 1 |
270-5952 Control Gp-Joystick -Rh
| 23***70 | Control Group-Handle; -Joystick, Rh | 1 |
| 27***52 | Control Group-Joystick; -Rh | 1 |
| 28***27 | Valve Group-Pilot; -Joystick | 1 |
270-5951 Control Gp-Joystick -Lh
| 23***69 | Control Group-Handle; -Joystick, Lh | 1 |
| 27***51 | Control Group-Joystick; -Lh | 1 |
| 28***27 | Valve Group-Pilot; -Joystick | 1 |
170-9497 Control Gp-Pilot Operated Hyd -Travel
| 09***28 | Screw; (Machine) (M4x0.7x12mm) | 2 |
| 09***66 | Washer; (Hard) (4.5x9x1mm Thk) | 1 |
| 11***49 | Pedal Assem.; (L.H.) | 1 |
234-6501 Cover Gp-Cab -Rear
| 23***99 | Cover As | 1 |
| 23***01 | Cover Group-Access; -Cab, Rear | 1 |
| 23***02 | Cover-Access; (Fuse-Rear Panel) | 1 |
234-6500 Cover Gp-Storage
| 23***00 | Cover Group-Storage; -Cab, Rear | 1 |
139-7100 Door Gp-Cab
| 09***22 | Screw-Machine; (M4x0.7x8-mm) | 2 |
| 09***84 | Nut-Spring | 2 |
| 10***99 | Screw As; (M6x1x16-mm) | 2 |
229-9082 Duct Gp-Cab Air
| 10***99 | Screw As; (M6x1x16-mm) | 2 |
| 17***96 | Clip | 5 |
| 22***82 | Duct Group-Cab Air | 1 |
240-5071 Floor Mat
| 24***71 | Floor Mat | 1 |
240-5073 Floor Mat
| 24***73 | Floor Mat | 1 |
245-7796 Floor Mat
| 24***96 | Floor Mat | 1 |
245-7795 Floor Mat
| 24***95 | Floor Mat | 1 |
293-1168 Floor Mat
| 29***68 | Floor Mat | 1 |
245-7794 Floor Mat
| 24***94 | Floor Mat | 1 |
305-0326 Floor Mat
| 30***26 | Floor Mat | 1 |
273-5358 Floor Mat Gp
| 27***33 | Floor Mat | 1 |
| 27***58 | Floor Mat Group; -Accugrade Ready | 1 |
| 27***59 | Plate-Rubber | 1 |
178-5549 Guard Ar-Overhead
| 16***97 | Guard Group-Overhead | 1 |
| 17***85 | Guard Group-Front Window | 1 |
| 17***49 | Guard Ar-Overhead; -Falling Objects Guard System | 1 |
264-8649 Guard Ar-Vandalism
| 20***59 | Guard Group-Vandalism; -Cab | 1 |
| 26***49 | Guard Ar-Vandalism | 1 |
| 27***27 | Storage Group-Vandalism Guard; -Vandalism Guard | 1 |
264-8648 Guard Ar-Vandalism
| 20***60 | Guard Group-Vandalism; -Cab | 1 |
| 26***48 | Guard Ar-Vandalism | 1 |
| 27***27 | Storage Group-Vandalism Guard; -Vandalism Guard | 1 |
203-7600 Guard Gp-Cab
| 19***69 | Guard As-Window | 1 |
| 20***00 | Guard Group-Cab | 1 |
| 8T***92 | Capscrew; (Hex Hd) (M12 X 1.75 X 25, Gr10.9, Z) | 6 |
171-7485 Guard Gp-Front Window
| 09***82 | Nut Self-Locking; (M8x1.25 Thd) | 2 |
| 17***85 | Guard Group-Front Window | 1 |
| 17***25 | Spring As-Gas | 2 |
164-0497 Guard Gp-Overhead
| 09***65 | Spacer; (17x40x3-mm Thk) | 2 |
| 11***17 | Plate-Warning; (Structure Modification)(Structure Certification) | 1 |
| 16***97 | Guard Group-Overhead | 1 |
207-0160 Guard Gp-Vandalism
| 16***43 | Bracket As | 1 |
| 20***60 | Guard Group-Vandalism; -Cab | 1 |
| 20***64 | Guard As | 1 |
207-0159 Guard Gp-Vandalism -Cab
| 20***59 | Guard Group-Vandalism; -Cab | 1 |
| 20***61 | Guard As | 1 |
| 20***64 | Guard As | 1 |
139-7099 Hatch Gp-Roof
| 09***06 | Spring As; (Gas) | 2 |
| 10***69 | Bolt As; (M8x1.25x16-mm) | 4 |
| 13***99 | Hatch Group; (Roof) | 1 |
189-2849 Hatch Gp-Roof
| 08***49 | Packing | 2 |
| 10***81 | Screw-Truss Head | 4 |
| 16***94 | Catch | 1 |
267-8071 Horn Gp-Electric
| 26***71 | Horn Group-Electric | 1 |
| 29***59 | Horn Group-Electric | 1 |
| 8T***21 | Washer-Hard; (11x21x2.5-mm Thk)(M10x1.50x30mm) | 2 |
291-7559 Horn Gp-Electric
| 09***26 | Lockwasher-Tooth; (M4 Id) | 2 |
| 09***30 | Screw-Machine; (M4x0.07x6-mm) | 2 |
| 13***89 | Clip; (Ladder) | 1 |
251-0538 Radio Gp -Am, Fm
| 10***04 | Screw As; (M5x0.8x10-mm) | 2 |
| 11***26 | Screw; (Pan Head) (10-16x0.63 In) | 2 |
| 23***60 | Cable | 1 |
231-1768 Installation Gp-Radio
| 16***42 | Connector; (Receptacle) | 1 |
| 16***43 | Terminal; (Male) | 5 |
| 23***10 | Plug As-Connector; (6-Pin) | 1 |
327-6645 Kit-Seat Suspension -Mechanical
| 24***95 | Kit-Clip; (Includes 28-Clips) | 1 |
| 32***45 | Kit-Seat Suspension; -Mechanical | 1 |
| 32***46 | Kit-Cylinder; (Dampener)(Dampener) | 1 |
333-4157 Kit-Seat Suspension -Air
| 24***95 | Kit-Clip; (Includes 28-Clips) | 1 |
| 32***46 | Kit-Cylinder; (Dampener)(Dampener) | 1 |
| 33***57 | Kit-Seat Suspension; -Air | 1 |
284-4386 Lines Gp-Air Conditioner
| 09***13 | Clip | 1 |
| 10***36 | Clip | 3 |
| 12***98 | Bracket Assem. | 1 |
7y-0059 Literature Gp
| 09***45 | Cable; (Lanyard) | 1 |
| 5P***58 | Sleeve; (Cable Splice) | 2 |
| 5P***00 | Key Total 2 Pieces Per Unit; (Literature Compartment) | 2 |
330-1162 Mirror Gp-Down View -Fuel Tank, Rh
| 13***75 | Bolt As-Locking; (M12x1.75x30-mm)(M12x1.75x30-mm)) | 3 |
| 32***25 | Tube As | 1 |
| 32***62 | Mirror Group-Rear View | 1 |
142-3836 Mirror Gp-Rear View -Front, Rh
| 13***70 | Mirror | 1 |
| 14***36 | Mirror Group-Rear View; -Front, Rh | 1 |
| 16***65 | Arm As; (Mirror Support) | 1 |
221-8813 Monitor & Mtg Gp-Operator
| 22***13 | Monitor & Mtg Group-Operator | 1 |
| 26***93 | Monitor Group-Operator | 1 |
| 9X***46 | Screw-Truss Head (M6x1x35mm); (M6x1x35-mm) | 3 |
260-2193 Monitor Gp-Operator
| 12***67 | Pin-Connector; (14-Ga To 16-Ga)(14-Ga Wire) | 17 |
| 24***94 | Receptacle As-Connector; (12-Pin) | 1 |
| 24***95 | Receptacle As-Connector; (12-Pin) | 1 |
319-4353 Monitor Gp-Operator
| 12***67 | Pin-Connector; (14-Ga To 16-Ga)(14-Ga Wire) | 17 |
| 24***94 | Receptacle As-Connector; (12-Pin) | 1 |
| 24***95 | Receptacle As-Connector; (12-Pin) | 1 |
309-5771 Mounting Gp-Antenna -Product Link
| 09***10 | Clamp | 4 |
| 14***19 | Spacer; (6.6x19x10-mm Thk) | 1 |
| 14***97 | Screw-Pan Head; (M4x0.7x12-mm) | 3 |
270-5603 Mounting Gp-Antenna -Accugrade
| 27***03 | Mounting Group-Antenna; -Accugrade Ready | 1 |
| 30***49 | Bracket As | 1 |
| 7X***52 | Bolt-Plt; (M16 X 2.0 X 30) | 2 |
290-9466 Mounting Gp-Antenna -Product Link
| 09***10 | Clamp | 3 |
| 09***72 | Grommet | 1 |
| 11***36 | Clip | 1 |
245-7811 Mounting Gp-Platform
| 23***62 | Mount As | 4 |
| 24***11 | Mounting Group-Platform | 1 |
| 8T***21 | Washer-Hard; (11x21x2.5-mm Thk)(M10x1.50x30mm) | 16 |
327-6568 Operator Ar
273-5387 Operator Ar
| 17***97 | Control Group-Pilot Operated Hydraulic; -Travel | 1 |
| 22***13 | Monitor & Mtg Group-Operator | 1 |
| 22***72 | Control & Mtg Group-Machine | 1 |
259-7178 Pedal Ar-Auxiliary -Third Pedal, Straight Travel
| 12***50 | Film-Instruction; (Travel Controls) | 1 |
| 25***26 | Fastener Group-Wiring Harness; -Straight Travel | 1 |
| 25***43 | Lines Group-Pilot; -Third Pedal, Pilot Valve | 1 |
229-9078 Platform Gp-Operator
| 13***65 | Grommet | 1 |
| 13***66 | Grommet | 1 |
| 16***17 | Strip | 1 |
263-9088 Radio Gp-Communication -Product Link 121sr
| 26***88 | Radio Group-Communication; -Product Link 121sr | 1 |
| 33***66 | Software Group-Communication; (Product Link 121sr) | 1 |
245-7881 Screen Gp-Sun
| 09***22 | Bolt-Socket Head; (M5x0.8x10-mm) | 6 |
| 24***81 | Screen Group-Sun | 1 |
| 25***10 | Screen As; (Cab) | 1 |
327-6501 Seat & Mounting Gp -High Back, Tilt
| 32***01 | Seat & Mounting Group; -High Back, Tilt | 1 |
| 32***07 | Seat Group-Suspension; -High Back, Tilt | 1 |
| 6V***02 | Bolt-Socket Head; (M8x1.25x16-mm) | 4 |
240-5003 Seat & Mounting Gp -High Back, Tilt
| 22***89 | Seat Group-Suspension; -High Back, Tilt | 1 |
| 24***03 | Seat & Mounting Group; -High Back, Tilt | 1 |
| 6V***02 | Bolt-Socket Head; (M8x1.25x16-mm) | 4 |
327-6503 Seat & Mounting Gp -High Back, With Heater
| 16***42 | Connector; (Receptacle) | 1 |
| 16***43 | Terminal; (Male) | 4 |
| 23***11 | Switch As-Rocker; (Heated Seat) | 1 |
305-0466 Seat Belt Gp -Retractable, 76-Mm
| 30***66 | Seat Belt Group; -Retractable, 76-mm | 1 |
| 32***40 | Seat Belt Group; (Retractable, 76-mm) | 1 |
327-6513 Seat Gp -High Back, With Heater
| 17***59 | Handle; (Lumbar Support Adjuster) | 1 |
| 31***87 | Bracket | 2 |
| 32***13 | Seat Group; -High Back, With Heater | 1 |
242-3122 Seat & Mounting Gp -High Back, Tilt
| 23***20 | Seat Belt Group; -Retractable, 76-mm | 1 |
| 24***03 | Seat & Mounting Group; -High Back, Tilt | 1 |
| 24***22 | Seat Group; -High Back, Tilt | 1 |
327-6512 Seat Gp -High Back, Tilt
| 17***59 | Handle; (Lumbar Support Adjuster) | 1 |
| 31***87 | Bracket | 2 |
| 32***12 | Seat Group; -High Back, Tilt | 1 |
229-9090 Seat Gp -High Back, Tilt
| 17***59 | Handle; (Lumbar Support Adjuster) | 1 |
| 22***90 | Seat Group; -High Back, Tilt | 1 |
| 22***94 | Headrest As-Seat; -Cloth | 1 |
327-6507 Seat Gp-Suspension -High Back, Tilt
| 31***87 | Bracket | 2 |
| 32***07 | Seat Group-Suspension; -High Back, Tilt | 1 |
| 32***12 | Seat Group; -High Back, Tilt | 1 |
327-6509 Seat Gp-Suspension -High Back, With Heater
| 31***87 | Bracket | 2 |
| 32***09 | Seat Group-Suspension; -High Back, With Heater | 1 |
| 32***13 | Seat Group; -High Back, With Heater | 1 |
229-9089 Seat Gp-Suspension -High Back, Tilt
| 22***77 | Suspension Group-Seat; -Mechanical | 2 |
| 22***89 | Seat Group-Suspension; -High Back, Tilt | 1 |
| 22***90 | Seat Group; -High Back, Tilt | 1 |
319-4354 Service Gp-Monitor
| 31***53 | Monitor Group-Operator | 1 |
| 31***54 | Service Group-Monitor | 1 |
| 31***57 | Software Group-Monitor | 1 |
309-5793 Service Gp-Monitor
| 26***93 | Monitor Group-Operator | 1 |
| 30***91 | Software Group-Monitor | 1 |
| 30***93 | Service Group-Monitor | 1 |
290-9515 Service Gp-Monitor
| 26***93 | Monitor Group-Operator | 1 |
| 29***14 | Software Group-Monitor | 1 |
| 29***15 | Service Group-Monitor | 1 |
235-8856 Support Gp-Seat
| 23***56 | Support Group-Seat | 1 |
| 23***57 | Support As | 1 |
| 8T***21 | Washer-Hard; (11x21x2.5-mm Thk)(M10x1.50x30mm) | 4 |
327-6523 Support Gp-Seat
| 32***23 | Support Group-Seat | 1 |
| 32***38 | Support As-Seat | 1 |
| 8T***21 | Washer-Hard; (11x21x2.5-mm Thk)(M10x1.50x30mm) | 4 |
245-7892 Suspension Gp-Seat
| 19***99 | Screw-Button Head; (M8x1.25x20-mm) | 2 |
| 20***80 | Cylinder-Damper | 1 |
| 24***92 | Suspension Group-Seat; -Mechanical | 1 |
327-6520 Suspension Gp-Seat -Mechanical
| 32***20 | Suspension Group-Seat; -Mechanical | 1 |
| 32***44 | Kit-Bracket; (Console Raise, Lower) | 1 |
| 32***45 | Kit-Seat Suspension; -Mechanical | 1 |
327-6521 Suspension Gp-Seat -Air
| 32***21 | Suspension Group-Seat; -Air | 1 |
| 32***44 | Kit-Bracket; (Console Raise, Lower) | 1 |
| 32***48 | Kit-Adjuster; (Seat Position) | 1 |
229-9077 Suspension Gp-Seat -Mechanical
| 14***21 | Kit-Clip; (Seat) | 1 |
| 22***77 | Suspension Group-Seat; -Mechanical | 1 |
| 24***68 | Cover As | 1 |
161-3751 Visor Gp-Cab -Sun
| 16***51 | Visor Group-Cab; -Sun Visor | 1 |
| 16***39 | Bracket As | 1 |
| 21***27 | Plate | 1 |
161-3750 Visor Gp-Protection -Rain
| 16***50 | Visor Group-Protection; -Rain | 1 |
| 16***18 | Bracket | 2 |
| 16***19 | Bracket | 1 |
229-9070 Washer Gp-Window
| 14***95 | Hose; (650-cm Each) | 0 |
| 16***95 | Strap; (Cable) | 2 |
| 17***31 | Tank As-Window Washer | 1 |
229-9088 Washer Gp-Window -Lower
| 08***37 | Nozzle As | 1 |
| 10***26 | Adapter As | 1 |
| 10***27 | Packing | 1 |
235-8909 Window Gp-Cab -Side, Rear
| 09***29 | Ring-Key | 1 |
| 15***90 | Glass; (Lh) | 1 |
| 15***69 | Glass | 1 |
156-6647 Window Gp-Cab -Front, Lower
| 12***66 | Stopper | 1 |
| 14***91 | Packing | 2 |
| 14***92 | Retainer | 2 |
139-7101 Window Gp-Cab -Front, Upper
| 09***23 | Screw-Machine; (M6x1x6-mm) | 2 |
| 10***00 | Screw As; (M6x1x20-mm) | 2 |
| 11***06 | Switch; (Window Lower Limit) | 1 |
176-1958 Window Gp-Cab -Front, Lower
| 13***19 | Ring | 2 |
| 15***73 | Glass; (Lower Front) | 1 |
| 15***31 | Stopper | 2 |
151-6792 Window Gp-Door
| 08***44 | Latch Group-Front Window | 2 |
| 08***47 | Retainer | 1 |
| 08***48 | Screw-Tapping | 2 |
229-9087 Wiper & Washer Gp-Window -Lower
| 12***66 | Switch As-Roller | 1 |
| 15***46 | Bracket | 1 |
| 15***47 | Window Group-Cab; -Front, Lower | 1 |
229-9086 Wiper Ar-Window -Lower
| 22***86 | Wiper Ar-Window; -Lower | 1 |
| 22***87 | Wiper & Washer Group-Window; -Lower | 1 |
| 22***88 | Washer Group-Window; -Lower | 1 |
234-6594 Wiper Gp-Window -Front, Upper
| 12***53 | Washer; (20.5x30x2-mm Thk) | 1 |
| 15***42 | Relay As; (Upper)(Wiper) | 1 |
| 16***68 | Arm As-Wiper | 1 |
Power Train
296-6299 Drive Gp-Final -Without Motor
| 09***80 | Plate (10.0 mm Thick) | 1 |
| 09***11 | Washer; (47.3x76x1-mm Thk) | 6 |
| 09***16 | Bearing As; (Roller) | 3 |
227-6949 Drive Gp-Final -Without Motor
| 09***80 | Plate (10.0 mm Thick) | 1 |
| 09***11 | Washer; (47.3x76x1-mm Thk) | 6 |
| 09***16 | Bearing As; (Roller) | 3 |
270-8170 Final Drive Gp
| 21***82 | Motor & Mtg Group-Travel | 1 |
| 22***49 | Drive Group-Final; (Without Motor) | 1 |
| 27***70 | Final Drive Group; -With Motor | 1 |
296-6298 Drive Gp-Final -With Motor
| 21***82 | Motor & Mtg Group-Travel | 1 |
| 29***98 | Final Drive Group; -With Motor | 1 |
| 29***99 | Drive Group-Final; -Without Motor | 1 |
296-6301 Gear Gp-Ring
| 14***05 | Gear-Ring; (104-Teeth) | 1 |
| 14***08 | Gear-Ring; (79-Teeth) | 1 |
| 29***01 | Gear Group-Ring | 1 |
296-6302 Gear Gp-Ring
| 10***55 | Gear-Ring; (104-Teeth) | 1 |
| 10***57 | Gear-Ring; (79-Teeth) | 1 |
| 29***02 | Gear Group-Ring | 1 |
267-6783 Gear Gp-Ring
| 26***83 | Gear Group-Ring | 1 |
296-6300 Gear Gp-Transfer
| 26***83 | Gear Group-Ring | 1 |
| 29***00 | Gear Group-Transfer | 1 |
| 29***01 | Gear Group-Ring | 1 |
267-6767 Power Train Ar
| 14***42 | Sprocket Group | 2 |
| 14***79 | Drive Group-Swing; -With Motor, Seal; Packet Seal | 1 |
| 22***66 | Fastener Group-Swing & Final Dr | 1 |
145-3042 Sprocket Gp
| 14***42 | Sprocket Group | 1 |
| 7X***62 | Capscrew, Hex Head (Hm20 - 2.5 X 50 mm, G8) | 16 |
| 8E***05 | Sprocket-Track | 1 |
Service Equipment And Supplies
247-7424 Film Gp -Operator Controls, Notice
| 24***24 | Film Group; -Operator Controls, Notice | 1 |
| 25***54 | Film-Notice; (Hammer, Read Omm) | 1 |
| 26***46 | Film-Instruction; (Operator Control Pedals) | 1 |
247-7465 Film Gp -Hammer Control, Foot Switch
| 17***15 | Film-Instruction; (Hammer Control) | 1 |
| 24***65 | Film Group; -Hammer Control, Foot Switch | 1 |
| 25***54 | Film-Notice; (Hammer, Read Omm) | 1 |
247-7423 Film Gp
| 24***23 | Film Group; -Operator Controls, Notice | 1 |
| 25***54 | Film-Notice; (Hammer, Read Omm) | 1 |
| 26***45 | Film-Instruction; (Operator Control Pedals) | 1 |
282-5705 Film Gp -Quick Coupler
| 26***30 | Film-Warning; (Crush Hazard, Read Omm, U.S.) | 1 |
| 26***31 | Film-Instruction; (Coupler Operation) | 1 |
| 26***72 | Film-Warning; (Crush Hazard, Read Omm, U.S.) | 1 |
268-6816 Film Gp -Quick Coupler
| 26***16 | Film Group; -Quick Coupler | 1 |
| 26***17 | Film-Identification; (Quick Coupler) | 1 |
303-2787 Film Gp -Work Area Visual System, Rear
| 30***87 | Seal/O-Ring, Film Group; -Work Area Visual System, Rear, O Ring Seal, O-Ring | 1 |
| 31***52 | Film-Instruction; (Battery Life, Camera) | 1 |
247-7490 Film Gp -Alt Pattern Control, Warning
| 24***90 | Film Group; -Alt Pattern Control, Warning | 1 |
| 25***70 | Film-Instruction; (Alt Pattern Control, Read Omm) | 1 |
| 25***71 | Plate-Instruction; (Control Pattern, Read Omm) | 1 |
275-3683 Plate & Film Gp
| 13***58 | Film; (Identification) (On Radiator Filler Cap) (On Near Of Radiator Filler Cap) | 1 |
| 14***26 | Film; (Oil) | 1 |
| 14***47 | Film; (Identification) (24v) (On Outside Of Battery Compartment Door) | 1 |
275-3684 Plate & Film Gp
| 13***58 | Film; (Identification) (On Radiator Filler Cap) (On Near Of Radiator Filler Cap) | 1 |
| 14***26 | Film; (Oil) | 1 |
| 14***47 | Film; (Identification) (24v) (On Outside Of Battery Compartment Door) | 1 |
Undercarriage
240-3822 Frame Ar-Undercarriage
| 08***08 | Guard Group-Track Guide; -Center | 2 |
| 16***54 | Guard Group-Travel Motor; (Travel Motor) | 1 |
| 22***47 | Gear & Bearing Group-Swing | 1 |
247-7454 Frame Ar-Undercarriage -Standard
| 08***08 | Guard Group-Track Guide; -Center | 2 |
| 16***54 | Guard Group-Travel Motor; (Travel Motor) | 1 |
| 22***47 | Gear & Bearing Group-Swing | 1 |
236-8341 Frame As-Undercarriage
| 11***40 | Bracket | 4 |
| 23***20 | Step | 4 |
| 23***41 | Frame As-Undercarriage | 1 |
254-3022 Frame As-Undercarriage
| 11***40 | Bracket | 4 |
| 23***20 | Step | 4 |
| 25***22 | Frame As-Undercarriage | 1 |
120-7165 Guard Gp-Track Guide -Full Length
| 12***65 | Guard Group-Track Guide; -Full Length | 1 |
| 21***68 | Guard As-Track Guide | 4 |
| 8T***23 | Washer-Plated; (22x35x3.5-mm Thk) | 24 |
120-7167 Guard Gp-Track Guide
| 12***67 | Guard Group-Track Guide; -Sprocket | 1 |
| 21***69 | Guard As-Track Guide | 2 |
| 8T***23 | Washer-Plated; (22x35x3.5-mm Thk) | 16 |
087-5908 Guard Gp-Track Guide
| 08***08 | Guard Group-Track Guide; -Center | 1 |
| 24***88 | Guard As-Track Guide | 1 |
| 8T***23 | Washer-Plated; (22x35x3.5-mm Thk) | 4 |
120-7168 Guard Gp-Track Guide
| 12***68 | Guard Group-Track Guide; -Full Length | 1 |
| 21***69 | Guard As-Track Guide | 4 |
| 8T***23 | Washer-Plated; (22x35x3.5-mm Thk) | 32 |
120-7164 Guard Gp-Track Guide
| 12***64 | Guard Group-Track Guide; -Rear | 1 |
| 21***68 | Guard As-Track Guide | 2 |
| 8T***23 | Washer-Plated; (22x35x3.5-mm Thk) | 12 |
166-1478 Guard Gp-Travel Motor
| 13***76 | Bolt As-Locking; (M12x1.75x30-mm) | 8 |
| 16***78 | Guard Group-Travel Motor; -Heavy-Duty | 1 |
| 16***79 | Cover As | 1 |
163-3754 Guard Gp-Travel Motor
| 13***76 | Bolt As-Locking; (M12x1.75x30-mm) | 8 |
| 16***54 | Guard Group-Travel Motor; (Travel Motor) | 1 |
| 16***55 | Cover | 2 |
248-7143 Idler Gp-Front
| 09***55 | Ring-Toric | 2 |
| 23***62 | Bearing; (Front Idler) | 2 |
| 24***25 | Shaft | 1 |
239-4385 Idler Gp-Front -Rh
| 23***85 | Idler Group-Front; -Rh | 1 |
| 23***87 | Track Adjuster & Recoil Group; -Rh | 1 |
| 24***43 | Idler Group-Front; (Front) | 1 |
239-4341 Idler Gp-Front
| 23***41 | Idler Group-Front; (Front) (A) | 1 |
| 23***85 | Idler Group-Front; -Rh | 1 |
| 23***86 | Idler Group-Front; -Lh | 1 |
239-4386 Idler Gp-Front -Lh
| 23***86 | Idler Group-Front; -Lh | 1 |
| 23***88 | Track Adjuster & Recoil Group; -Lh | 1 |
| 24***43 | Idler Group-Front; (Front) | 1 |
194-1608 Link As-Track
| 09***63 | Pin; (Cotter) | 1 |
| 15***80 | Seal; (Track) | 96 |
| 15***81 | Seal; (Track Master) | 2 |
194-1609 Link As-Track
| 09***63 | Pin; (Cotter) | 1 |
| 15***80 | Seal; (Track) | 88 |
| 15***81 | Seal; (Track Master) | 2 |
7y-1608 Roller Ar-Track & Carrier
| 16***43 | Roller Group-Track-Single Flange; (Track) (Single Flange) | 16 |
| 7X***65 | Bolt; (M20x2.5x100-mm) | 64 |
| 7Y***08 | Roller Ar-Track & Carrier | 1 |
7y-1607 Roller Ar-Track & Carrier
| 16***43 | Roller Group-Track-Single Flange; (Track) (Single Flange) | 14 |
| 7X***65 | Bolt; (M20x2.5x100-mm) | 56 |
| 7Y***07 | Roller Ar-Track & Carrier | 1 |
8e-5600 Roller Gp-Track Carrier
| 6V***61 | Seal; (Id=69.40mm) | 1 |
| 7H***71 | Plug,Pipe Base Assembly,Engine Oil Filter Assembly | 1 |
| 8E***00 | Roller Group-Track Carrier; (Track Carrier) | 1 |
163-4143 Roller Gp-Track-Single Flange
| 16***43 | Roller Group-Track-Single Flange; (Track) (Single Flange) | 1 |
| 3E***17 | Dowel | 1 |
| 5G***47 | Stopper; (Rubber) | 1 |
239-4390 Track Adjuster & Recoil Gp
| 09***36 | Seal-Lip Type | 1 |
| 09***12 | Ring, Back-Up | 2 |
| 09***04 | Seal-O-Ring; (Id=49.40mm) | 1 |
239-4388 Track Adjuster & Recoil Gp -Lh
| 16***61 | Plate As | 1 |
| 23***88 | Track Adjuster & Recoil Group; -Lh | 1 |
| 23***89 | Track Adjuster & Recoil Group | 1 |
239-4389 Track Adjuster & Recoil Gp
| 14***35 | Plate | 1 |
| 23***50 | Spring | 1 |
| 23***78 | Support | 1 |
239-4387 Track Adjuster & Recoil Gp -Rh
| 16***61 | Plate As | 1 |
| 23***87 | Track Adjuster & Recoil Group; -Rh | 1 |
| 23***89 | Track Adjuster & Recoil Group | 1 |
247-7382 Track Ar -2-Required
| 19***21 | Track Group; -2-Required | 1 |
| 23***64 | Step Group | 1 |
| 24***82 | Track Ar; -2-Required | 1 |
314-3797 Track Ar -2-Required
| 23***64 | Step Group | 1 |
| 31***97 | Track Ar; -2-Required | 1 |
| 33***15 | Track Group; -2-Required | 1 |
247-7346 Track Ar -2-Required
| 19***12 | Track Group; -2-Required | 1 |
| 23***64 | Step Group | 1 |
| 24***46 | Track Ar; -2-Required | 1 |
314-3798 Track Ar -2-Required
| 23***64 | Step Group | 1 |
| 31***98 | Track Ar; -2-Required | 1 |
| 33***08 | Track Group; -2-Required | 1 |
332-8908 Track Gp -2-Required
| 19***08 | Link As-Track; (Track) | 1 |
| 33***03 | Shoe-Track | 49 |
| 33***08 | Track Group; -2-Required | 1 |
194-1914 Track Gp -Grease Lubricated Track
| 10***15 | Shoe; (Track) | 49 |
| 19***08 | Link As-Track; (Track) | 1 |
| 19***14 | Track Group; -Greased, Lubricated Track | 1 |
332-8915 Track Gp -2-Required
| 19***09 | Link As-Track; (Track) | 1 |
| 33***03 | Shoe-Track | 45 |
| 33***15 | Track Group; -2-Required | 1 |
194-1915 Track Gp
| 10***16 | Shoe; (Track) | 49 |
| 19***08 | Link As-Track; (Track) | 1 |
| 19***15 | Track Group; -2-Required | 1 |
194-1911 Track Gp
| 19***08 | Link As-Track; (Track) | 1 |
| 19***11 | Track Group; -2-Required | 1 |
| 6I***54 | Shoe-Track | 49 |
194-1910 Track Gp -2-Required
| 12***62 | Shoe; (Track) | 49 |
| 19***08 | Link As-Track; (Track) | 1 |
| 19***10 | Track Group; -2-Required | 1 |
194-1917 Track Gp
| 19***09 | Link As-Track; (Track) | 1 |
| 19***17 | Track Group; -2-Required | 1 |
| 6I***54 | Shoe-Track | 45 |
194-1921 Track Gp -2-Required
| 19***09 | Link As-Track; (Track) | 1 |
| 19***21 | Track Group; -2-Required | 1 |
| 9W***61 | Nut - Track (M20x1.5-6g Thd) | 180 |
194-1920 Track Gp -2-Required
| 12***62 | Shoe; (Track) | 45 |
| 19***09 | Link As-Track; (Track) | 1 |
| 19***20 | Track Group; -2-Required | 1 |
194-1912 Track Gp -2-Required
| 19***08 | Link As-Track; (Track) | 1 |
| 19***12 | Track Group; -2-Required | 1 |
| 9W***61 | Nut - Track (M20x1.5-6g Thd) | 196 |
Work Tools
7y-2219 Adjuster Gp-Bucket
| 08***21 | Shim (0.5mm Thick) | 4 |
| 08***22 | Shim (1.0mm Thick) | 6 |
| 13***48 | Plate | 1 |
250-6418 Adjuster Gp-Bucket -Cb-Family
| 08***74 | Pin | 1 |
| 08***75 | Shim (0.5mm Thick) | 4 |
| 08***76 | Shim (1.0mm Thick) | 6 |
269-2644 Bucket & Adjuster Gp -Heavy-Duty, Cb-Family
| 25***18 | Adjuster Group-Bucket; -Cb-Family | 1 |
| 26***44 | Bucket & Adjuster Group; -Heavy-Duty, Cb-Family | 1 |
| 26***52 | Bucket As-Heavy Duty; -Cb-Family | 1 |
276-5803 Bucket & Adjuster Gp -Ditch Cleaning, Cb-Family
| 25***18 | Adjuster Group-Bucket; -Cb-Family | 1 |
| 27***03 | Bucket & Adjuster Group; -Ditch Cleaning, Cb-Family | 1 |
| 27***05 | Bucket As-Ditch Cleaning; -Cb-Family | 1 |
269-2667 Bucket & Adjuster Gp -Heavy-Duty Power, Cb-Family
| 25***18 | Adjuster Group-Bucket; -Cb-Family | 1 |
| 26***67 | Bucket & Adjuster Group; -Heavy-Duty Power, Cb-Family | 1 |
| 26***70 | Bucket As-Heavy Duty Power; -Cb-Family | 1 |
269-2648 Bucket & Adjuster Gp -Heavy-Duty, Cb-Family
| 25***18 | Adjuster Group-Bucket; -Cb-Family | 1 |
| 26***48 | Bucket & Adjuster Group; -Heavy-Duty, Cb-Family | 1 |
| 26***56 | Bucket As-Heavy Duty; -Cb-Family | 1 |
269-2603 Bucket & Adjuster Gp -Heavy-Duty, B-Family
| 26***03 | Bucket & Adjuster Group; -Heavy-Duty, B-Family | 1 |
| 26***10 | Bucket As-Heavy Duty; -B-Family | 1 |
| 7Y***19 | Adjuster Group-Bucket; -B-Family | 1 |
269-2623 Bucket & Adjuster Gp -Heavy-Duty Power, B-Family
| 26***23 | Bucket & Adjuster Group; -Heavy-Duty Power, B-Family | 1 |
| 26***26 | Bucket As-Heavy Duty Power; -B-Family | 1 |
| 7Y***19 | Adjuster Group-Bucket; -B-Family | 1 |
269-2615 Bucket & Adjuster Gp -Heavy-Duty Rock, B-Family
| 26***15 | Bucket & Adjuster Group; -Heavy-Duty Rock, B-Family | 1 |
| 26***19 | Bucket As-Heavy Duty Rock; -Heavy-Duty Rock, B-Family | 1 |
| 7Y***19 | Adjuster Group-Bucket; -B-Family | 1 |
269-2601 Bucket & Adjuster Gp -B-Family
| 26***01 | Bucket & Adjuster Group; -Heavy-Duty, B-Family | 1 |
| 26***09 | Bucket As-Heavy Duty; -Heavy-Duty, B-Family | 1 |
| 7Y***19 | Adjuster Group-Bucket; -B-Family | 1 |
269-2658 Bucket & Adjuster Gp -Heavy-Duty Rock, Cb-Family
| 25***18 | Adjuster Group-Bucket; -Cb-Family | 1 |
| 26***58 | Bucket & Adjuster Group; -Heavy-Duty Rock, Cb-Family | 1 |
| 26***62 | Bucket As-Heavy Duty Rock; -Cb-Family | 1 |
269-2660 Bucket & Adjuster Gp -Heavy-Duty Rock, Cb-Family
| 25***18 | Adjuster Group-Bucket; -Cb-Family | 1 |
| 26***60 | Bucket & Adjuster Group; -Heavy-Duty Rock, Cb-Family | 1 |
| 26***64 | Bucket As-Heavy Duty Rock; -Cb-Family | 1 |
269-2614 Bucket & Adjuster Gp -Heavy-Duty Rock, B-Family
| 26***14 | Bucket & Adjuster Group; -Heavy-Duty Rock, B-Family | 1 |
| 26***18 | Bucket As-Heavy Duty Rock; -Heavy-Duty Rock, B-Family | 1 |
| 7Y***19 | Adjuster Group-Bucket; -B-Family | 1 |
276-5804 Bucket & Adjuster Gp -Ditch Cleaning, Cb-Family
| 25***18 | Adjuster Group-Bucket; -Cb-Family | 1 |
| 27***04 | Bucket & Adjuster Group; -Ditch Cleaning, Cb-Family | 1 |
| 27***06 | Bucket As-Ditch Cleaning; -Cb-Family | 1 |
269-2622 Bucket & Adjuster Gp -Heavy-Duty Power, B-Family
| 26***22 | Bucket & Adjuster Group; -Heavy-Duty Power, B-Family | 1 |
| 26***25 | Bucket As-Heavy Duty; -B-Family | 1 |
| 7Y***19 | Adjuster Group-Bucket; -B-Family | 1 |
269-2613 Bucket & Adjuster Gp -Heavy-Duty Rock, B-Family
| 26***13 | Bucket & Adjuster Group; -Heavy-Duty Rock, B-Family | 1 |
| 26***17 | Bucket As-Heavy Duty Rock; -Heavy-Duty Rock, B-Family | 1 |
| 7Y***19 | Adjuster Group-Bucket; -B-Family | 1 |
269-2666 Bucket & Adjuster Gp -Heavy-Duty Power, Cb-Family
| 25***18 | Adjuster Group-Bucket; -Cb-Family | 1 |
| 26***66 | Bucket & Adjuster Group; -Heavy-Duty Power, Cb-Family | 1 |
| 26***69 | Bucket As-Heavy Duty Power; -Cb-Family | 1 |
269-2600 Bucket & Adjuster Gp -Heavy-Duty, B-Family
| 26***00 | Bucket & Adjuster Group; -Heavy-Duty, B-Family | 1 |
| 26***08 | Bucket As-Heavy Duty; -Heavy-Duty, B-Family | 1 |
| 7Y***19 | Adjuster Group-Bucket; -B-Family | 1 |
269-2647 Bucket & Adjuster Gp -Heavy-Duty, Cb-Family
| 25***18 | Adjuster Group-Bucket; -Cb-Family | 1 |
| 26***47 | Bucket & Adjuster Group; -Heavy-Duty, Cb-Family | 1 |
| 26***55 | Bucket As-Heavy Duty; -Cb-Family | 1 |
269-2657 Bucket & Adjuster Gp -Heavy-Duty Rock, Cb-Family
| 25***18 | Adjuster Group-Bucket; -Cb-Family | 1 |
| 26***57 | Bucket & Adjuster Group; -Heavy-Duty Rock, Cb-Family | 1 |
| 26***61 | Bucket As-Heavy Duty Rock; -Cb-Family | 1 |
269-2646 Bucket & Adjuster Gp -Heavy-Duty, Cb-Family
| 25***18 | Adjuster Group-Bucket; -Cb-Family | 1 |
| 26***46 | Bucket & Adjuster Group; -Heavy-Duty, Cb-Family | 1 |
| 26***54 | Bucket As-Heavy Duty; -Cb-Family | 1 |
269-2616 Bucket & Adjuster Gp -Heavy-Duty Rock, B-Family
| 26***16 | Bucket & Adjuster Group; -Heavy-Duty Rock, B-Family | 1 |
| 26***20 | Bucket As-Heavy Duty Rock; -Heavy-Duty Rock, B-Family | 1 |
| 7Y***19 | Adjuster Group-Bucket; -B-Family | 1 |
276-5805 Bucket As-Ditch Cleaning -Cb-Family
| 22***03 | Edge | 1 |
| 23***37 | Plate-Reinforcement | 1 |
| 27***05 | Bucket As-Ditch Cleaning; -Cb-Family | 1 |
276-5806 Bucket As-Ditch Cleaning -Cb-Family
| 23***23 | Edge | 1 |
| 23***38 | Plate-Reinforcement | 1 |
| 27***06 | Bucket As-Ditch Cleaning; -Cb-Family | 1 |
269-2654 Bucket As-Heavy Duty -Cb-Family
| 22***04 | Adapter-Tip; -K-100 | 4 |
| 23***05 | Adapter-Tip; (K-100, 2-Strap, Rh) | 1 |
| 23***06 | Adapter-Tip; (K-100, 2-Strap, Lh) | 1 |
269-2656 Bucket As-Heavy Duty -Cb-Family
| 22***04 | Adapter-Tip; -K-100 | 5 |
| 23***05 | Adapter-Tip; (K-100, 2-Strap, Rh) | 1 |
| 23***06 | Adapter-Tip; (K-100, 2-Strap, Lh) | 1 |
269-2609 Bucket As-Heavy Duty -Heavy-Duty, B-Family
| 22***94 | Adapter-Tip; (K-90, 2-Strap, Center) | 4 |
| 23***95 | Adapter-Tip; (K-90, 2-Strap, Rh) | 1 |
| 23***96 | Adapter-Tip; (K-90, 2-Strap, Lh) | 1 |
281-2096 Bucket As-Heavy Duty -Cb-Family
| 22***04 | Adapter-Tip; -K-100 | 3 |
| 23***05 | Adapter-Tip; (K-100, 2-Strap, Rh) | 1 |
| 23***06 | Adapter-Tip; (K-100, 2-Strap, Lh) | 1 |
269-2625 Bucket As-Heavy Duty -B-Family
| 22***94 | Adapter-Tip; (K-90, 2-Strap, Center) | 3 |
| 23***95 | Adapter-Tip; (K-90, 2-Strap, Rh) | 1 |
| 23***96 | Adapter-Tip; (K-90, 2-Strap, Lh) | 1 |
269-2610 Bucket As-Heavy Duty -B-Family
| 22***94 | Adapter-Tip; (K-90, 2-Strap, Center) | 5 |
| 23***95 | Adapter-Tip; (K-90, 2-Strap, Rh) | 1 |
| 23***96 | Adapter-Tip; (K-90, 2-Strap, Lh) | 1 |
267-1566 Bucket As-Heavy Duty -Cb-Family
| 22***04 | Adapter-Tip; -K-100 | 4 |
| 23***05 | Adapter-Tip; (K-100, 2-Strap, Rh) | 1 |
| 23***06 | Adapter-Tip; (K-100, 2-Strap, Lh) | 1 |
269-2655 Bucket As-Heavy Duty -Cb-Family
| 22***04 | Adapter-Tip; -K-100 | 5 |
| 23***05 | Adapter-Tip; (K-100, 2-Strap, Rh) | 1 |
| 23***06 | Adapter-Tip; (K-100, 2-Strap, Lh) | 1 |
269-2652 Bucket As-Heavy Duty -Cb-Family
| 22***04 | Adapter-Tip; -K-100 | 3 |
| 23***05 | Adapter-Tip; (K-100, 2-Strap, Rh) | 1 |
| 23***06 | Adapter-Tip; (K-100, 2-Strap, Lh) | 1 |
269-2608 Bucket As-Heavy Duty -Heavy-Duty, B-Family
| 22***94 | Adapter-Tip; (K-90, 2-Strap, Center) | 3 |
| 23***95 | Adapter-Tip; (K-90, 2-Strap, Rh) | 1 |
| 23***96 | Adapter-Tip; (K-90, 2-Strap, Lh) | 1 |
269-2669 Bucket As-Heavy Duty Power -Cb-Family
| 22***04 | Adapter-Tip; -K-100 | 3 |
| 23***05 | Adapter-Tip; (K-100, 2-Strap, Rh) | 1 |
| 23***06 | Adapter-Tip; (K-100, 2-Strap, Lh) | 1 |
269-2626 Bucket As-Heavy Duty Power -B-Family
| 22***94 | Adapter-Tip; (K-90, 2-Strap, Center) | 4 |
| 23***95 | Adapter-Tip; (K-90, 2-Strap, Rh) | 1 |
| 23***96 | Adapter-Tip; (K-90, 2-Strap, Lh) | 1 |
269-2670 Bucket As-Heavy Duty Power -Cb-Family
| 22***04 | Adapter-Tip; -K-100 | 4 |
| 23***05 | Adapter-Tip; (K-100, 2-Strap, Rh) | 1 |
| 23***06 | Adapter-Tip; (K-100, 2-Strap, Lh) | 1 |
269-2661 Bucket As-Heavy Duty Rock -Cb-Family
| 22***04 | Adapter-Tip; -K-100 | 1 |
| 23***05 | Adapter-Tip; (K-100, 2-Strap, Rh) | 1 |
| 23***06 | Adapter-Tip; (K-100, 2-Strap, Lh) | 1 |
269-2619 Bucket As-Heavy Duty Rock -Heavy-Duty Rock, B-Family
| 22***94 | Adapter-Tip; (K-90, 2-Strap, Center) | 3 |
| 23***95 | Adapter-Tip; (K-90, 2-Strap, Rh) | 1 |
| 23***96 | Adapter-Tip; (K-90, 2-Strap, Lh) | 1 |
269-2618 Bucket As-Heavy Duty Rock -Heavy-Duty Rock, B-Family
| 22***94 | Adapter-Tip; (K-90, 2-Strap, Center) | 2 |
| 23***95 | Adapter-Tip; (K-90, 2-Strap, Rh) | 1 |
| 23***96 | Adapter-Tip; (K-90, 2-Strap, Lh) | 1 |
269-2620 Bucket As-Heavy Duty Rock -Heavy-Duty Rock, B-Family
| 22***94 | Adapter-Tip; (K-90, 2-Strap, Center) | 3 |
| 23***95 | Adapter-Tip; (K-90, 2-Strap, Rh) | 1 |
| 23***96 | Adapter-Tip; (K-90, 2-Strap, Lh) | 1 |
269-2662 Bucket As-Heavy Duty Rock -Cb-Family
| 22***04 | Adapter-Tip; -K-100 | 2 |
| 23***05 | Adapter-Tip; (K-100, 2-Strap, Rh) | 1 |
| 23***06 | Adapter-Tip; (K-100, 2-Strap, Lh) | 1 |
269-2664 Bucket As-Heavy Duty Rock -Cb-Family
| 22***04 | Adapter-Tip; -K-100 | 3 |
| 23***05 | Adapter-Tip; (K-100, 2-Strap, Rh) | 1 |
| 23***06 | Adapter-Tip; (K-100, 2-Strap, Lh) | 1 |
269-2617 Bucket As-Heavy Duty Rock -Heavy-Duty Rock, B-Family
| 22***94 | Adapter-Tip; (K-90, 2-Strap, Center) | 1 |
| 23***95 | Adapter-Tip; (K-90, 2-Strap, Rh) | 1 |
| 23***96 | Adapter-Tip; (K-90, 2-Strap, Lh) | 1 |
262-3494 Coupler Ar-Quick -B1-Family Linkage
| 17***28 | Pin Group; -Coupler | 1 |
| 24***55 | Cylinder & Lines Group-Bucket | 1 |
| 26***94 | Coupler Ar-Quick; -B1-Family Linkage | 1 |
235-0723 Coupler Gp-Quick
| 09***28 | Fitting-Grease | 4 |
| 11***40 | Screw; (M5x0.8x19-mm) | 2 |
| 17***56 | Bearing | 1 |
195-7216 Protector Gp-Side Bar
| 11***89 | Protector-Side Bar | 4 |
| 13***99 | Retainer As-G.E.T. | 8 |
| 19***16 | Protector Group-Side Bar | 1 |
112-2482 Protector Gp-Side Bar
| 11***82 | Protector Group-Side Bar | 1 |
| 11***89 | Protector-Side Bar | 2 |
| 13***99 | Retainer As-G.E.T. | 4 |
283-3326 Sidecutter Gp
| 1D***35 | Bolt (Mounted On Main Frame) | 8 |
| 23***47 | Sidecutter; (Rh) | 1 |
| 23***48 | Sidecutter; (Lh) | 1 |
7y-0366 Sidecutter Gp
| 2J***07 | Nut-Full; (1-8 X38.1 Thd) | 0 |
| 6I***71 | Bolt; (1-8x2.5-In) | 0 |
| 7Y***57 | Cutter, Side, R. H. | 0 |
217-4895 Tip Gp-Double Spike
| 21***95 | Tip Group-Double Spike; -K-90 | 1 |
| 22***90 | Retainer-G.E.T. | 1 |
| 30***98 | Tip-Double Spike; (K-90) | 1 |
217-4891 Tip Gp-Extra-Duty
| 21***91 | Tip Group-Extra-Duty; -K-90 | 1 |
| 22***90 | Retainer-G.E.T. | 1 |
| 22***91 | Tip-Extra-Duty; (K-90) | 1 |
229-6973 Tip Gp-Extra-Duty -K-100
| 22***90 | Retainer-G.E.T. | 1 |
| 22***01 | Tip-Extra-Duty; (K-100) | 1 |
| 22***73 | Tip Group-Extra-Duty; -K-100 | 1 |
217-4896 Tip Gp-General Purpose
| 21***96 | Tip Group-General Purpose; -K-90 | 1 |
| 22***90 | Retainer-G.E.T. | 1 |
| 22***99 | Tip-General Purpose; (K-90) | 1 |
229-6978 Tip Gp-General Purpose -K-100
| 22***90 | Retainer-G.E.T. | 1 |
| 22***09 | Tip Group-General Purpose; (K-100) | 1 |
| 22***78 | Tip Group-General Purpose; -K-100 | 1 |
229-6974 Tip Gp-Penetration -K-100
| 22***90 | Retainer-G.E.T. | 1 |
| 22***02 | Tip-Penetration; (K-100) | 1 |
| 22***74 | Tip Group-Penetration; -K-100 | 1 |
217-4892 Tip Gp-Penetration
| 21***92 | Tip Group-Penetration; -K-90 | 1 |
| 22***90 | Retainer-G.E.T. | 1 |
| 22***92 | Tip-Penetration; (K-90)(K-90) | 1 |
217-4893 Tip Gp-Penetration Plus -K-90
| 21***93 | Tip Group-Penetration Plus; -K-90 | 1 |
| 22***90 | Retainer-G.E.T. | 1 |
| 22***93 | Tip-Penetration Plus; (K-90)(K-90) | 1 |
229-6975 Tip Gp-Penetration Plus -K-100
| 22***90 | Retainer-G.E.T. | 1 |
| 22***03 | Tip Group-Penetration Plus; (K-100) | 1 |
| 22***75 | Tip Group-Penetration Plus; -K-100 | 1 |
229-6976 Tip Gp-Sharp -K-100
| 22***90 | Retainer-G.E.T. | 1 |
| 22***07 | Tip-Spike | 1 |
| 22***76 | Tip Group-Sharp; -K-100 | 1 |
217-4894 Tip Gp-Spike -K-90
| 21***94 | Tip Group-Spike; -K-90 | 1 |
| 22***90 | Retainer-G.E.T. | 1 |
| 22***97 | Tip-Spike; (K-90) | 1 |
229-6977 Tip Gp-Twin Sharp -K-100
| 22***90 | Retainer-G.E.T. | 1 |
| 22***08 | Tip-Double Spike | 1 |
| 22***77 | Tip Group-Twin Sharp; -K-100 | 1 |
320D serial number reference
On a 320D the PIN plate is on the right-hand exterior of the cab, just below the window (a stamped PIN may also appear on the frame). A modern 17-character PIN reads like CAT0320DxKGF00123 — the three letters immediately before the five-digit sequence (here KGF) are the serial prefix, which identifies the exact variant (320D vs 320D L, LN, RR/LRR, FM, GC), the build configuration, and the factory; the build year is NOT encoded in the number itself. Give the full PIN to any Cat dealer and they can pull the exact build date, engine arrangement, and factory options from Caterpillar's records.
| Prefix | Identifies | Notes |
|---|---|---|
| PHX | 320D (standard) | C6.4 ACERT. Confirmed production window June 2006 to Dec 2009 (forum-documented factory build dates, e.g. one unit built Oct 2008). One of the earliest 320D prefixes. |
| A6F | 320D / 320D L | C6.4 ACERT. Covered by dedicated service + parts manuals and the 320D electrical schematics set; SIS-mirror catalogs list it for both standard and L machines. |
| A8F | 320D L | C6.4 ACERT. Shares a factory parts manual with A6F; also covered by the 320D-family operation & maintenance manual and wiring schematics set. |
| A9F | 320D L | C6.4 ACERT. Dedicated service manual; also in the 320D electrical schematics coverage list. |
| BZP | 320D (standard) | C6.4 ACERT — confirmed in SIS-derived electrical/parts documents. Also in the 320D wiring schematics coverage list. |
| FAL | 320D / 320D L | C6.4 ACERT. One of the longest-running prefixes — forum-documented builds as late as Dec 2012 and Jul 2013, i.e. the tail end of 320D production. |
| KGF | 320D / 320D L | C6.4 ACERT. Very common on North American / export 320D L machines; a documented KGF unit dates to 2008. Dedicated service manual from first unit up. |
| MCH | 320D / 320D L | C6.4 ACERT per SIS-mirror catalog; also in the wiring schematics coverage list. |
| MGG | 320D (standard) | C6.4 era. Dedicated service manual; also in the 320D electrical schematics coverage list. |
| JFZ | 320D / 320D L | C6.4 era. Resale listings show JFZ units as 2008 and 2010 model-year 320D L machines. |
| KLM | 320D / 320D L | C6.4 era. Dedicated service manuals exist for both the standard and L machine under this prefix. Not to be confused with later 320D2 prefixes. |
| SPN | 320D L | Dedicated service manual (from first unit up); also cited in Cat parts-reference material for the D-series 320. |
| DHK | 320D L | C6.4 era; dedicated service manual from first unit up. |
| TDH | 320D L | C6.4 era; dedicated service manual from first unit up. |
| KZF | 320D / 320D L | Dedicated service + operation manuals. Engine reporting varies by configuration — most sources indicate C6.4; one source associates KZF-region machines with the C6.6-engined 320D/320D L line sold in some territories. |
| MDE | 320D L | Dedicated service manual from first unit up; single-source — confirm with dealer. |
| MZD | 320D / 320D L | Dedicated service manual covering both standard and L machines from first unit up. |
| JPD | 320D (standard) | Dedicated service manual from first unit up; single-source — confirm with dealer. |
| GDP | 320D LN (narrow gauge) — some catalogs list as 320D L | Variant labeling varies by source: OEM-style service manual titles it 320D LN, while a SIS-mirror parts catalog files it under 320D L. C6.4 era. |
| WBN | 320D LN (narrow gauge) | C6.4 ACERT. Dedicated 320D LN service manual from first unit up. |
| PCX | 320D LN (narrow gauge) | Listed alongside WBN as a 320D LN prefix in parts-reference material; thinner sourcing — confirm with dealer. |
| CXY | 320D / 320D L (3066-engined) | SIS-mirror catalog lists CXY machines powered by the Cat 3066 (Mitsubishi-derived) engine rather than the C6.4 — a configuration sold in Asian/emerging markets. |
| EBY | 320D RR / 320D LRR (reduced radius) | Powered by the 3066 engine per the OEM-style service literature — the RR/LRR reduced-tail-swing machines used this engine in several markets. Shares a printed parts book with FXK and GKL. |
| FXK | 320D RR / 320D LRR | Covered by the same OEM parts book as EBY and GKL; also appears in RR/LRR parts-fitment listings. |
| GKL | 320D RR / 320D LRR | Covered by the same OEM parts book as EBY and FXK. |
| YDS | 320D RR (reduced radius) | C6.4 ACERT per SIS-mirror catalog. |
| XCK | 320D LRR (long undercarriage, reduced radius) | C6.4 ACERT per SIS-mirror catalog. |
| TAE | 320D LRR | C6.4 ACERT per SIS-mirror catalog. |
| ZGB | 320D LRR | C6.4 ACERT per SIS-mirror catalog. |
| WFD | 320D LN / LRR / RR group | Appears in parts-fitment listings for the LN/LRR/RR family; exact variant varies by configuration — confirm with dealer. |
| CWN | 320D LRR | Cited as a 320D LRR prefix in aftermarket reference material; thinner sourcing — confirm with dealer. |
| SCW | 320D LRR | Dedicated LRR parts catalogue exists under this serial prefix; single-source — confirm with dealer. |
| CYZ | 320D FM (forest machine) | 320D FM forest swing machine, C6.4 ACERT, per SIS-mirror catalog and a dedicated FM parts catalogue. |
| GKS | 320D FM (forest machine) | 320D FM Tier 3, documented roughly 2006-2011 production (lubricant-spec database) with working units registered into 2013; also covered by the FM harvester electrical schematic. |
| BWW | 320D FM (forest machine) | Dedicated FM workshop manual; also in the FM harvester electrical schematic coverage list. |
| BZF | 320D FM (forest machine) | Dedicated FM schematic manual; also in the FM harvester electrical schematic coverage list. |
| EAX | 320D FM (forest machine) | Listed in the 320D FM harvester electrical schematic coverage; thinner sourcing on variant detail. |
| SRT | 320D RR FM (reduced-radius forest machine) | Forest swing machine on the reduced-radius platform, powered by the 3066 engine per SIS-mirror catalog. |
| KHN | 320D family — reported both as standard 320D and 320D FM | Sources disagree on the variant (standard vs forest machine) — varies by configuration; confirm the full PIN with a dealer. |
| KTF | 320D GC | Dedicated 320D GC parts catalog under this serial prefix; the GC is a lower-spec configuration sold in select markets. |
| PCM | 320D GC — some resale listings label PCM units as 320D L | Parts catalogs tie PCM to the 320D GC; a documented 2010 resale unit was advertised as a 320D L — varies by configuration. One documented PCM unit is a 2010 build. |
Frequently asked questions
What engine does the Caterpillar 320D have?
The 320D uses the Cat C6.4 ACERT inline-6 common-rail diesel, rated at 103 kW (about 138-140 hp) net at 1,800 rpm, meeting US EPA Tier 3 / EU Stage IIIA emissions.
What is the operating weight of the CAT 320D?
Approximately 20,000-21,900 kg (46,700-48,300 lb) depending on configuration — the standard 320D runs near 21,000 kg, with long-undercarriage 320D L versions at the top of the range.
What replaced the Caterpillar 320D?
The 320E, introduced from 2012. The model lineage runs 320B → 320C → 320D → 320E; the 320D itself replaced the 320C, moving to the electronically controlled C6.4 engine for Tier 3 emissions.
What 320D owners discuss
Why does my CAT 320D feel slow once the hydraulics warm up?
This is one of the most common 320D complaints — fine when cold, sluggish after 10-15 minutes — and it almost always points to internal leakage that worsens as the oil thins with heat. Start cheap: confirm the hydraulic oil spec and change the return and pilot filters; a neglected pilot filter alone makes every function feel lazy because the pilot circuit can no longer stroke the main control valve spools fully (metal in that filter is a warning sign of pump trouble upstream). If that doesn't fix it, the consensus path is to compare pump, pilot, and power shift pressures cold versus hot with gauges or Cat ET — steady power shift pressure with falling performance when hot usually means a worn main pump, a sticking spool, or cylinders bypassing internally. Keep the hydraulic oil cooler clean too, since hot oil compounds all of this.
My 320D boom drifts down when I stop moving the levers. Cylinder seals or something else?
Don't assume cylinder seals — drift on these machines is just as often in the main control valve. Work in order: rule out external leaks at hoses, fittings, and cylinder glands; then measure the actual drift rate with the oil warm, because Cat publishes maximum allowable drift figures and a machine within spec doesn't need parts thrown at it. If drift is excessive, the usual suspects are boom cylinder piston seals bypassing or line relief/makeup valves in the control valve failing to hold — there are documented cases where the fix was in the valve, not the cylinder. A field clue: seal bypass typically worsens noticeably with hot oil. Because a boom that won't hold load is a safety hazard, have your Cat dealer verify the diagnosis and pressure-test the circuit before returning the machine to work.
Why does my 320D bog down or stall the engine when I load the hydraulics?
Two separate systems can cause this, and plenty of owners have replaced parts in the wrong one first. Rule out fuel starvation before touching the hydraulics: a partially clogged primary filter, a dirty water separator, or debris in the suction line will let the engine idle fine but collapse the moment the pumps demand real horsepower. If fuel supply checks out, move to the pump control side: the 320D's controller reads engine speed and adjusts power shift pressure through a solenoid valve to keep the pumps from demanding more torque than the engine can deliver — if the speed sensor or that solenoid circuit misbehaves, the pumps stay loaded too hard and drag the engine down. Watching target RPM, actual RPM, and power shift pressure under load in Cat ET is the fastest way to tell which side is at fault.
My 320D (C6.4) cranks a long time before starting but runs fine afterward. What is going on?
Long cranking with a healthy-running engine afterward is a classic C6.4 rail-pressure story. The ECM won't fire the injectors until rail pressure builds past a threshold, and at cranking speed the pump moves very little fuel — so even modest internal leakage (injectors bleeding back to return, a tired rail relief valve, worn pump check valves) keeps pressure from building. Once running, pump flow easily outruns the leak, which is exactly why it runs fine but starts poorly. Diagnostic order: watch rail pressure in Cat ET while cranking, rule out low-pressure supply issues first, then run Cat's injector leakage measurement procedure. When one injector is confirmed dumping rail pressure, budget for the full set on a high-hour engine. The common-rail side runs at extremely dangerous pressures — have your Cat dealer do the high-pressure testing.
My 320D overheats after an hour of work even though I've replaced the thermostat and water pump. What am I missing?
This exact scenario comes up repeatedly — owners replace the fan, cap, coolant, water pump, and thermostat and it still runs hot. What most people miss is debris packed BETWEEN the cooling cores: the 320D stacks its radiator, hydraulic oil cooler, and condenser close together, and fine material gets driven into the gaps where a normal surface wash never reaches. Split or swing the coolers apart and wash from the engine side outward to clear the packed blanket of fines. Before spending more money, also verify the gauge with an infrared thermometer, and scan the radiator face for cold sections — a large temperature difference across the core means internal plugging that needs rodding out rather than another flush. On dusty sites this is a recurring maintenance item, not a one-time fix.
How do I keep the final drives on a 320D alive, and what does oil weeping at the sprocket mean?
Final drives rarely die suddenly — they die from low gear oil and contamination ignored for months. Oil weeping between the sprocket and the back of the travel motor is the classic signature of a failed floating face (duo-cone) seal: once it goes, gear oil leaks out and grit works into the planetary hub, and running it low wears the gears, splines, and bearings until the drive locks. Standard practice: check final drive oil level on schedule and inspect what drains out — metallic glitter or a muddy look means wear debris or water inside and the drive needs attention now. Clean the undercarriage regularly (end of each shift on muddy sites), since packed material traps heat and grinds at the seal area. Treat any new final-drive leak as urgent; the seal is cheap compared to a planetary rebuild.
I'm looking at a used 320D. What should I actually check before handing over money?
The 320D era is old enough that condition matters far more than hours. Start with the undercarriage — the single biggest wear cost: pads, links, rollers, idlers, and sprocket teeth (sharpened or hooked teeth mean it's due). Check pin and bushing slop at the boom, stick, and bucket by loading the linkage, and check swing bearing play by lifting and setting the front end while watching for movement between car body and house. Run the machine until the hydraulic oil is properly warm before judging cycle speed and drift — worn pumps and bypassing cylinders can look fine cold. Watch a cold start yourself: long cranking on the C6.4 flags injector or rail-pressure work in the near future. Look for weld repairs and fresh paint on the boom and stick, check the pump compartment, center swivel, and final drives for leaks, and confirm the monitor shows no active codes. Ask for service records and oil sample (SOS) history — and a formal Cat dealer inspection with ET is money well spent at this price point.
Compiled from owner and technician discussions across the industry — experiences vary by serial range and machine history.
Serial-range & configuration variants
This page covers the Caterpillar 320D. Related factory variants of the same model family:
320D
Need a specific 320D part?
Search live OEM part data, check fitment, and cross-reference alternatives with Heavy Parts AI.
